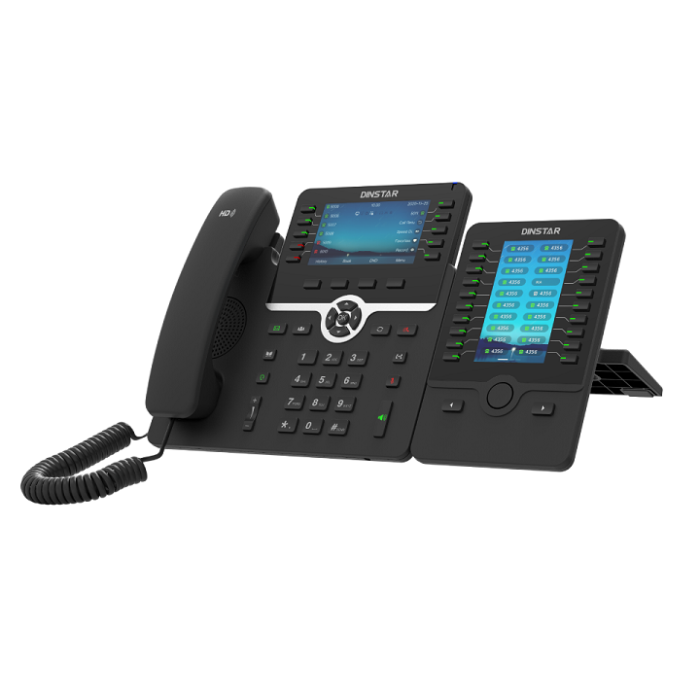

Dinstar DXP60 Feature-rich and Practical Color-screen Expansion Module
The Dinstar DXP60 expansion module is dedicated to expanding the functionality and enhancing the flexibility of SIP phones. The DXP60 features a 4.3-inch pixel color display screen with backlight, providing users with a rich visual experience. It supports 20 physical keys with dual-color LEDs, offering 3 display pages and up to 60 programmable keys. The DXP60 is suitable for receptionists, administrative assistants, call center agents, advanced users, and managers who need to regularly monitor and manage a large number of calls.
- Stand with 2 adjustable angles
- Up to 60 programmable keys
- Supports up to 3 modules daisy-chain
- 4.3" 272 x 480-pixel color display screen with backlight
- 20 physical keys on each page with dual-color LEDs
Display 16 bit depth color
Three page views are possible
4.3" 272x480-pixel color display with backlight
Different color icons for each function shown on the LCD
Features Keys and Indicators Maximum number of pages: 3 pages
Maximum programmable keys: 60
Programmable keys with dual-color LED indicators
Supports 20 programmable keys per page, with 2 independent control keys
Call Features DND
BLF List
Speed Dial
Intercom
Call Park
Voicemail
Blind/attended transfer
Features Screensaver
Stand with 2 adjustable angles
Max power consumption: 2.3W
Dimension: 128mmx188mmx38.5mm
Up to three DXP60 can be attached on Dinstar C63 series/C64 series/C66 series IP phones
For support of two or three Expansion Modules, an external power adapter (5V/1A) is required.
Package Features Qty/CTN: 20 PCS
N.W/CTN: 5kg
G.W/CTN: 9.6kg
Giftbox size: 140x198x72mm
Carton Meas: 415x380x310mm
