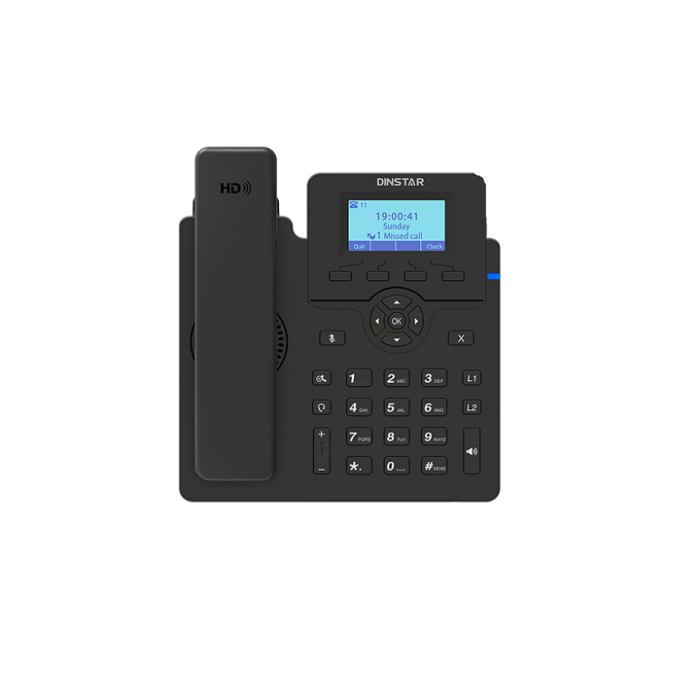

Dinstar C60U Entry Level IP Phone
C60 Series IP Phone is based on high innovative SIP technology, which is ideal for all kinds of business communication. It integrates with 132x64-pixel graphical LCD, elegant and intuitive user interface, which indicate you can enjoy good user experience.
- HD Voice
- 2 SIP Accounts
- 2 Line keys
- 5-way Conference
- 132x64 pixel Graphical LCD with Backlight
- Dual-port 10/100Mbps Ethernet
- Support EHS wireless headset (Plantronics, Jabra, Sennheiser)
- Stand with 2 adjustable angles
- Full Compatible with 3CX, Asterisk, Yeastar, Xorcom, VoIP.ms, Broadsoft, FreeSWITCH Platform etc.
Call Features 2 SIP Accounts
Call Waiting
Call Forward
Blind/attended transfer
Call hold, Call mute, DND mode
Speed Dialing, Hotline
Redial, Call Return
Auto-redial, Auto-answer
Dial Plan
5-way conference
Peer Dialing
IP-PBX Features SMS, Voicemail, MWI
Music On-hold, Intercom, Multicast
Call Pickup, Call Pickup in Group
Anonymous Call
Anonymous Call Rejection
Audio HD Voice
Wideband Codec: G.722, OPUS-WB
Narrowband Codec: PCMA, PCMU, G.729, G723, G726, AMR, OPUS, iLBC
Echo Cancellation/Dynamic Jitter
Voice Activity Detection (VAD)
Comfort Noise Generation (CNG)
Full-duplex Speaker
Protocols & Standards SIP v1 (RFC2543), SIP v2 (RFC3261)
SIP over TLS, SRTP
TCP/IP/UDP
RTP/RTCP, RFC2198, RFC1889
HTTP/HTTPS/FTP/TFTP
ARP/RARP/ICMP/NTP/DHCP
DNS SRV/ A Query/NATPR Query
STUN, Session Timer (RFC4028)
DTMF: In-Band, RFC2833, SIP INFO
LLDP
OpenVPN, 802.1X
Management Auto provisioning: FTP/TFTP/HTTP/HTTPS/PnP
Configuration via HTTP/HTTPS web
SNMP, TR069
Network capture
NTP/Daylight saving time
Firmware upgrade via web
Syslog
Configuration backup/restore
Equipment Management System (NMS）
Physical Features 132x64 pixel graphic LCD with backlight
Dual-angle foot stand: 40 and 45
Dimensions(approx.): 180x192x36mm(WxLxD) without foot stand
Weight(approx.): device 370g, foot stand 60g
Input voltage: 5Vdc
Power supply: 5Vdc power adapter or PoE
Power consumption: 1.4W
Handset: 4P4C, RJ9
Headset: 4P4C, RJ9
Environmental conditions: Operation temperature: 0~40C Humidity: 10% to 95% (non-condensing)
2xRJ45 10/100M Ethernet Ports
Wall Mountable
Phone Features Adjustable Voice Volume
Selectable Ring Tones
XML Browser
Action URL/URI
Keyboard lock
Programmable DSS keys
Phonebook: 1,000 Groups
Blacklist: 100 Groups
Call Log: 100 Logs
Support 5 Remote Phonebook URLs
LDAP
Support Multiple Languages
Support EHS Features
