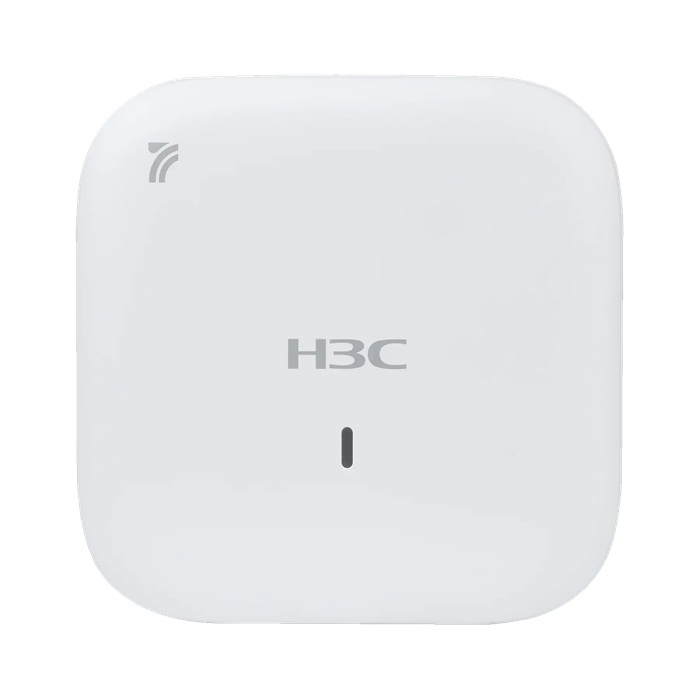

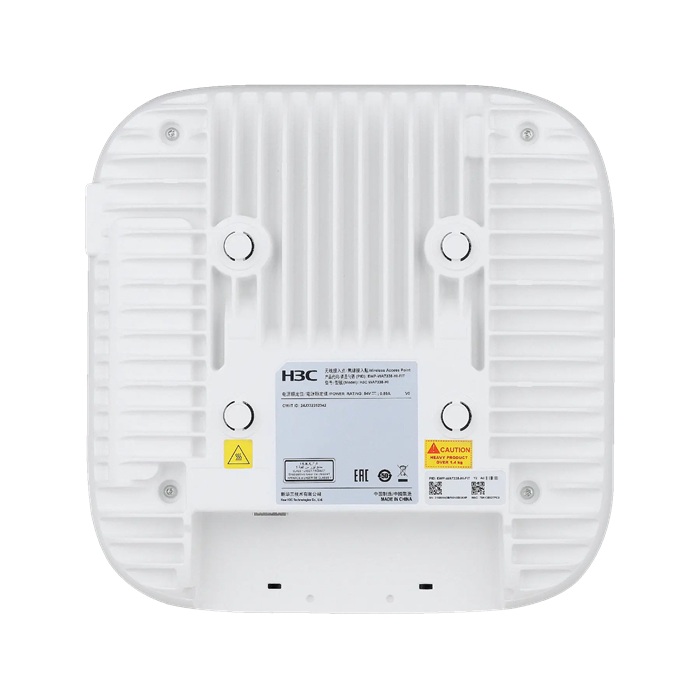

H3C WA7338-HI Best price in Dubai UAE
Delivers high-performance Wi-Fi 7 connectivity with triple-radio 8-stream architecture, supporting 2×2 MIMO on 2.4 GHz and 5 GHz and 4×4 MIMO on 6 GHz, with up to 17.293 Gbps aggregate throughput.
Supports 320 MHz channels, 4096-QAM, MLO, and enhanced OFDMA for faster speeds, higher capacity, and low-latency applications.
Provides flexible uplink connectivity with 10GbE and 10G SFP+ ports, including redundant networking and up to 400 m PoE+ power delivery.
Supports flexible CloudAP, FitAP, and AnchorAP deployment modes with H3C Cloudnet and AD-Campus for centralized and intelligent network management.
Integrates Bluetooth, USB, and PoE-out interfaces to support IoT devices, positioning applications, and diverse connectivity requirements.
Improves wireless performance with intelligent RF management, application control, fast roaming, station access control, and automated fault diagnosis.
Provides comprehensive wireless security with WPA2/WPA3, WIPS, CAPWAP/DTLS protection, secure boot, and AI-powered dynamic power saving.
H3C WA7338-HI Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA7338-HI – Wi-Fi 7 Triple-Radio High-Performance Access Point Distributor for Africa dsrtech.ae, H3C Dubai
Hardware Specifications
| Weight | 1.43 kg |
| Dimensions (W × D × H) | 225 × 225 × 45 mm |

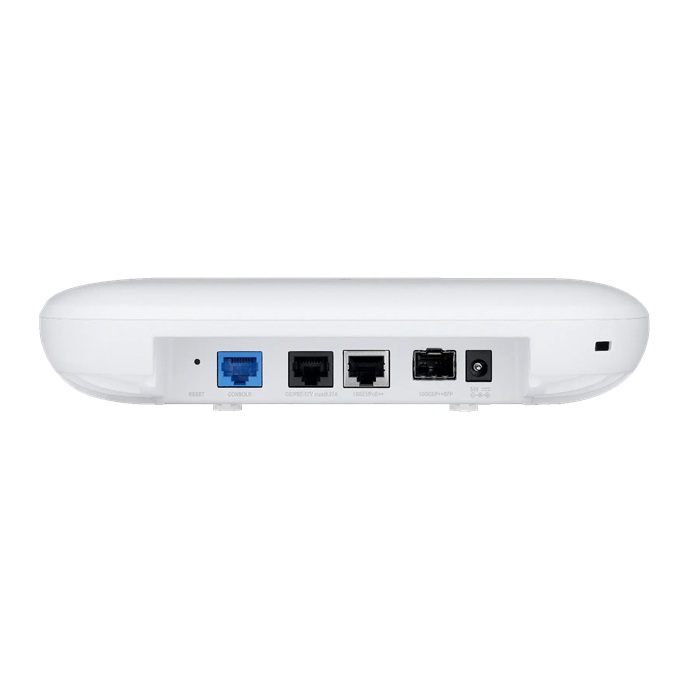

| Interfaces | 1 × 10G Multigigabit RJ-45; 1 × 10G optical SFP+; 1 × Gigabit RJ-45 PoE output |
| Console Port | 1 × RJ-45 management console |
| USB Port | 1 × USB 2.0, 2.5W |
| PoE Input | 802.3bt/at via 10G RJ-45 or 10G optical port |
| PoE Output | 802.3af via Gigabit Ethernet |
| Local Power | 54V DC adapter |
| Antenna | Built-in omni-directional; peak gain up to 5.6dBi |
| IoT | BLE 5.4 |
| Frequency Bands | 2.4GHz, 5GHz and 6GHz |
| Maximum Data Rate | 802.11be: up to 23,059 Mbps |
| Maximum Transmit Power | 6GHz: 26dBm; 5GHz/2.4GHz: 23dBm |
| Power Adjustment | 1dBm increments |
| Installation | Wall or ceiling mounting |
| Operating Temperature | –10°C to +50°C |
| Humidity | 5% to 95%, non-condensing |
| Protection | IP42; 4KV common-mode surge protection |
| Maximum Power Consumption | 41.8W via 802.3bt/DC; 24.3W via 802.3at |
| MTBF | 2,072,861 hours at 25°C |
| Safety Standards | IEC/EN 62368-1, GB 4943.1 |
| Radio Standards | ETSI EN 300 328, EN 301 893, FCC Part 15E, ETSI EN 303 687 |
| RoHS | 2011/65/EU, (EU) 2015/863 |
Software Specifications
| Product Type | Indoor triple-radio Wi-Fi 7 AP |
| AP Modes | Fit AP, Cloud AP and Anchor AP |
| Wireless Controllers | H3C WX2800X, WX3800X and WX5800X Series |
| Radio Configuration | 6GHz 4×4:4; 5GHz 2×2:2; 2.4GHz 2×2:2 |
| Channel Bandwidth | 6GHz up to 320MHz; 5GHz up to 160MHz; 2.4GHz up to 40MHz |
| Maximum Transmission Speed | Up to 17.293Gbps |
| Maximum Clients | 1,536 |
| Maximum BSSIDs | 16 per radio |
| Wi-Fi 7 Features | 320MHz channels, 4096-QAM, MLO, preamble puncturing, Multi-RU, MU-MIMO and OFDMA |
| Wi-Fi 6 Features | TWT, BSS Coloring/Spatial Reuse, MU-MIMO and OFDMA |
| WLAN Features | A-MPDU, A-MSDU, LDPC, STBC, DFS, TxBF, MRC and CDD/CSD |
| CAPWAP & Tunnel | CAPWAP, DTLS, IPv4/IPv6, dual tunnels and AC discovery |
| Forwarding | Centralized, local and policy forwarding |
| RF Management | Automatic channel, power and bandwidth adjustment |
| Roaming & Mesh | 802.11k/v/r roaming; secure multi-hop Mesh |
| Load Balancing | Traffic-, user- and frequency-based load balancing |
| Authentication | 802.1X, MAC, Portal, PSK, PPSK and EAP authentication |
| Wireless Security | WPA2, WPA3, OWE, AES, TKIP, CCMP, WIPS and management frame protection |
| Layer 2/3 | DHCP, NAT/NAT66, LLDP, STP, ACL, DNS, FTP and TFTP |
| Multicast | IGMP/MLD Snooping and multicast-to-unicast conversion |
| IoT & Location | BLE/RSSI location and RFID/Zigbee gateway support |
| Hotspot | Hotspot 2.0 support in Fit AP mode |
| QoS | WMM, QoS, ATF, CAC, CAR and bandwidth management |
| Power Saving | Green AP, U-APSD and SM Power Save |
| Service Assurance | Remote AP, Doctor AP, spectrum analysis, intelligent bandwidth guarantee and roaming optimization |
| Management | Web GUI, SNMP, CLI, SSH, Telnet, Syslog, TFTP/FTP and Netconf |
| Power Management | Dynamic MIMO adjustment and wireless client power-saving features |
| Standards | IEEE 802.11a/b/g/n/ac/ac Wave 2/ax/be; 802.3af/at/bt; 802.3bz/az |
| Wi-Fi Certification | Wi-Fi 7, Wi-Fi 6E, Wi-Fi 6, WMM, WPA, WPA2 and WPA3 |
