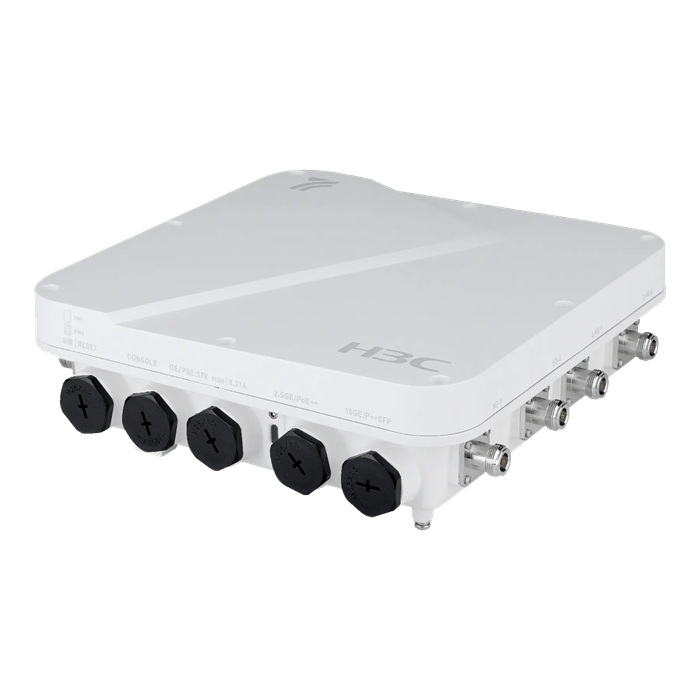

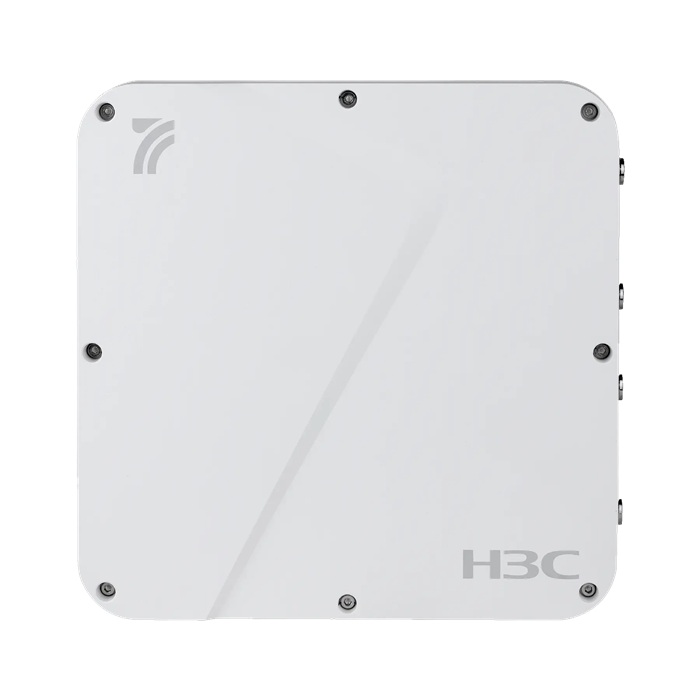

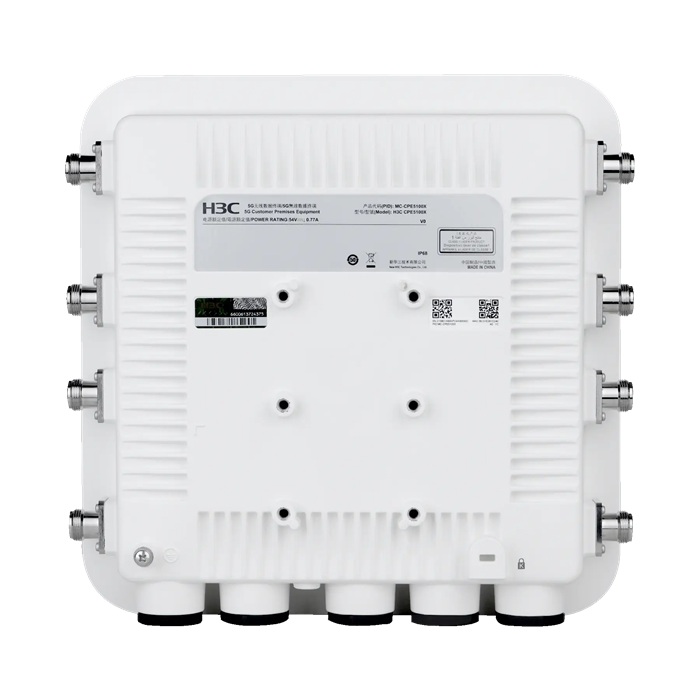

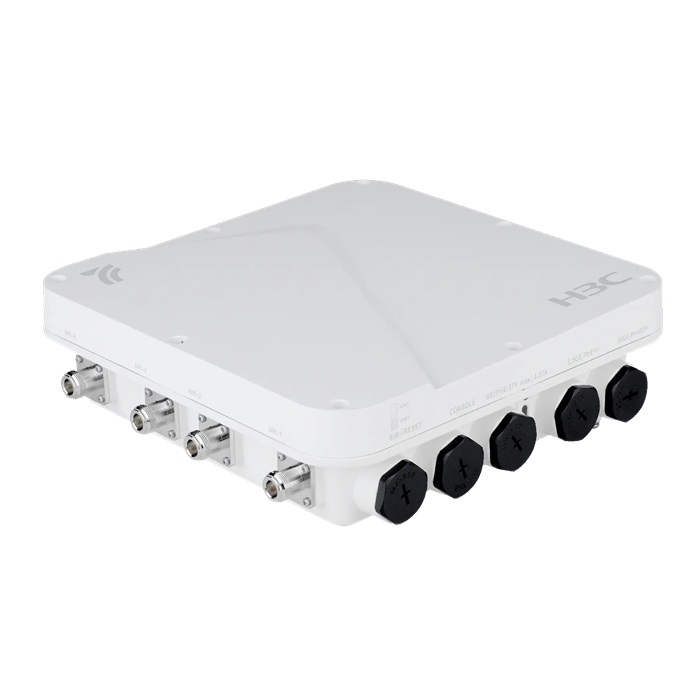

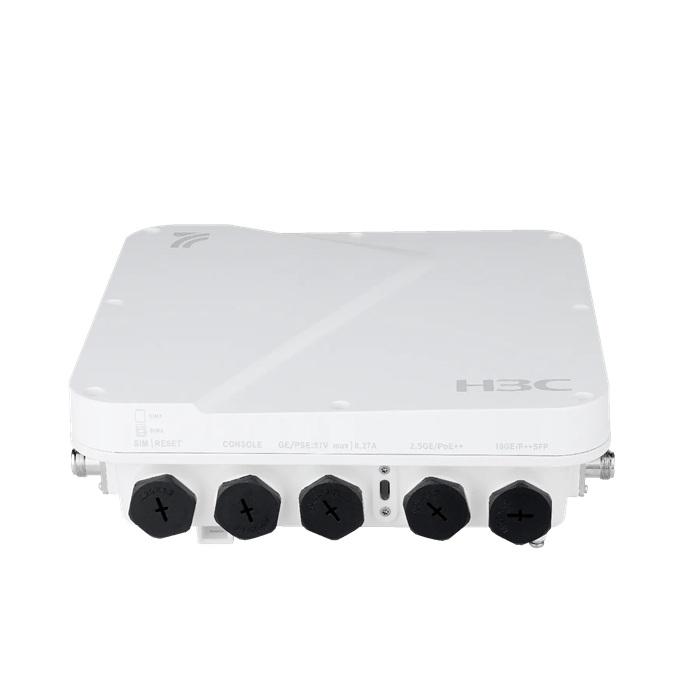

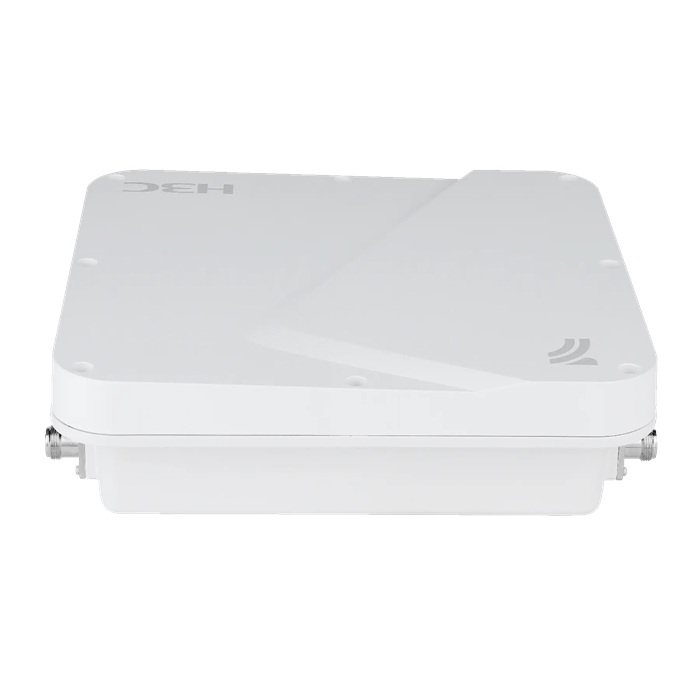

H3C CPE5100X Best price in Dubai UAE
Enables 5G connectivity for devices in industrial, smart park, and branch environments.
Supports Fit AP mode for centralized management, client authentication, and roaming.
Provides 5G and Wi-Fi dual-uplink redundancy with automatic failover and recovery.
Supports 5G and wired dual-link redundancy for reliable network connectivity.
Supports portal and MAC authentication for Wi-Fi clients.
Enables flexible deployment with wireless controllers and existing network infrastructure.
Improves connection reliability through automatic link monitoring and switching.
H3C CPE5100X Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C CPE5100X – Wi-Fi 7 Dual-Radio Wireless Access Point Distributor for Africa dsrtech.ae, H3C Dubai
Hardware Specifications
| Weight | 2.05 kg |
| Dimensions (W × D × H) | 260 × 260 × 84 mm (without mounting brackets) |
| Interfaces | 1 × 100/1000M/2.5G RJ-45 Ethernet PoE input; 1 × 1G/10G SFP+ optical PoE input; 1 × 10/100/1000M RJ-45 Ethernet PoE output |
| Console Port | 1 × RJ-45 management console port |
| SIM Card Slots | 2 × SIM slots with automatic backup; one active at a time |
| PoE Input | RJ-45 Ethernet and SFP+ optical ports; IEEE 802.3bt/at |
| PoE Output | 1 × 10/100/1000M RJ-45 Ethernet, IEEE 802.3af |
| Local Power Supply | PoE injector (sold separately) |
| Antenna Type | External antenna; gain depends on the connected antenna |
| Wi-Fi Frequency Bands | 2.4GHz: 2.400–2.4835GHz; 5GHz: 5.150–5.895GHz; 6GHz: 5.925–7.125GHz, subject to regulatory domain |
| 5G NR Bands | NSA/SA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 |
| LTE Bands | FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71; TDD: B34/B38/B39/B40/B41/B42/B43/B46 (LAA)/B48 |
| Modulation Technology | DSSS, OFDM and OFDMA |
| Wi-Fi Modulation Modes | 802.11b: BPSK/QPSK/CCK; 802.11a/g/n: up to 64-QAM; 802.11ac: up to 256-QAM; 802.11ax: up to 1024-QAM; 802.11be: up to 4096-QAM |
| 5G NR Modulation | Uplink: π/2-BPSK, QPSK, 16/64/256-QAM; Downlink: QPSK, 16/64/256-QAM |
| LTE Modulation | Uplink/downlink: QPSK, 16/64/256-QAM |
| Wi-Fi Data Rates | 802.11b: up to 11Mbps; 802.11a/g: up to 54Mbps; 802.11n: up to 600Mbps; 802.11ac: up to 6,933Mbps; 802.11ax: up to 9,608Mbps; 802.11be: up to 23,059Mbps |
| Maximum Transmit Power | 5G NR: 26dBm (Class 2), 23dBm (Class 3); 6GHz: 27dBm; 5GHz: 27dBm; 2.4GHz: 30dBm. Subject to local regulations |
| Adjustable Power Granularity | 1dBm increments |
| Reset Button | Factory reset and CloudAP/FitAP mode control |
| Security Slot | Kensington security slot |
| Installation | Wall or pole mounting; mounting bracket sold separately |
| LED Indicators | Yellow, green and blue status LEDs |
| Operating Temperature | −40°C to +65°C |
| Storage Temperature | −40°C to +85°C |
| Operating Humidity | 0%–100%, non-condensing |
| Storage Humidity | 0%–100%, non-condensing |
| Protection Class | IP68 |
| Surge Protection | 6kV common-mode |
| Power Consumption | 802.3bt: maximum 39.8W with PSE; 802.3at: maximum 24.8W without PSE; PoE injector: maximum 39.8W with PSE |
| Safety Standards | GB 4943.1, EN 62368-1:2014+A11:2017, EN 60825-1:2014+A11:2021, EN 60950-22:2017 |
| EMC Standards | EN 301 489-1/-3/-17, EN 60601-1-2, EN 55032, EN 55035, CISPR 32/35, AS/NZS CISPR 32, ICES-003 Issue 7, GB/T 9254.1/9254.2, GB 17625.1/17625.2 and IEC/EN 61000 series |
| Radio Standards | ETSI EN 300 328, EN 301 893, EN 303 687 |
| RoHS Standards | EN IEC 63000:2018; EN 301 893 V2.2.1 |
| Health Standards | EN 50385:2017, EN IEC 62311:2020 |
| Cybersecurity Standards | EN 18031-1:2024, EN 18031-2:2024 |
| Ecodesign | (EC) No 1275/2008, (EU) No 801/2013, EN 50564:2011 |
| MTBF (25°C) | 734,102 hours |
Software Specifications
| Product Type | Outdoor dual-radio Wi-Fi 7 access point supporting IEEE 802.11a/b/g/n/ac/ac Wave 2/ax/be |
| Operating Modes | Fit AP and Cloud AP; managed by a wireless controller or H3C intelligent O&M platform. Modes can be switched through CLI, controller, platform or reset button |
| Supported Controllers | H3C WX2800X, WX3800X and WX5800X series |
| Dual-Radio Configurations | 5GHz + 2.4GHz: 2×2:2, 2.882Gbps + 0.688Gbps; 6GHz + 5GHz: 2×2:2, 5.765Gbps + 2.882Gbps; other combinations supported as specified by the source |
| Channel Bandwidth | 6GHz: up to 320MHz; 5GHz: up to 160MHz; 2.4GHz: up to 40MHz |
| Maximum Transmission Speed | Up to 8.647Gbps (6GHz + 5GHz); 6.453Gbps (6GHz + 2.4GHz); 5.764Gbps (dual 5GHz); 3.57Gbps (5GHz + 2.4GHz) |
| Maximum Clients | 1,024 clients; distribution depends on radio configuration and environment |
| Maximum BSSIDs | 16 per radio |
| 5G Capabilities | 3GPP Release 16; 5G NSA/SA; LTE-FDD/TDD; 5G NR MIMO: 2×2 uplink, 4×4 downlink; LTE MIMO: 2×2 uplink, 4×4 downlink |
| Wi-Fi 7 Features | 320MHz channels, 4096-QAM, Multi-Link Operation (MLO), preamble puncturing, Multi-RU, uplink/downlink MU-MIMO and OFDMA |
| Wi-Fi 6 Features | Target Wake Time (TWT), BSS coloring, spatial reuse, MU-MIMO and OFDMA |
| WLAN Basics | A-MPDU, A-MSDU, LDPC, LACP, STBC, DFS, TxBF, CCF, MRC and CDD/CSD |
| Tunnel Management | CAPWAP, DTLS encryption, IPv4/IPv6, AC discovery, NAT, time synchronization, dual tunnels, PPPoE client and IPsec in Cloud AP mode |
| WLAN Management | Automatic RF adjustment, SSID hiding, client limits, centralized/local/policy forwarding, VLAN binding, user isolation, load balancing, band steering and 802.11k/v/r roaming |
| WLAN Extensions | Multicast enhancement, RSSI location, third-party RFID/Zigbee gateway support through the PSE port, Mesh, wireless probing, Hotspot 2.0 and Bonjour gateway |
| User Authentication | 802.1X, MAC, Portal, PSK, Private-PSK/PPSK and social-media authentication in Cloud AP mode |
| EAP Methods | EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, EAP-FAST, GTC and EAP-SIM |
| Wireless Security | WPA2, WPA3, OWE, AES, TKIP, CCMP, WEP40/104, packet and MAC filtering, broadcast suppression, EAD, management frame protection, WIPS and IPSG |
| Layer 2 and Layer 3 | Static/DHCP IP, DHCP server/client/relay, NAT/NAT66/NAT logging, LLDP, STP, IPv4/IPv6 ICMP, ACL, DHCP, TFTP, FTP and DNS |
| Service Assurance | Remote AP, Doctor AP, spectrum analysis, 802.11ax-only access, bandwidth guarantee, port aggregation, broadcast suppression, weak-signal client blocking, roaming optimization and software recovery |
| Quality of Service | WMM, QoS mapping and prioritization, packet filtering, traffic classification, CAR, user bandwidth management, ATF, CAC, SQA and UCC |
| Power Saving | Green AP, U-APSD and SM Power Save |
| Management and Maintenance | Web management via HTTP/HTTPS, SNMP v1/v2c/v3, MIB, SSH v2, Telnet, FTP/TFTP, CLI, Syslog, secure boot and NETCONF |
| IEEE Standards | IEEE 802.11a/b/g/n/ac/ac Wave 2/ax/be, 802.11d/e/h/i/w/u, 802.11k/v/r, 802.3af/at/bt, 802.3az and 802.15.1 |
| Wi-Fi Certifications | Wi-Fi 7, Wi-Fi 6E, Wi-Fi 6, WMM, WPA, WPA2, WPA3 Enterprise/Personal (SAE) and Enhanced Open (OWE) |
