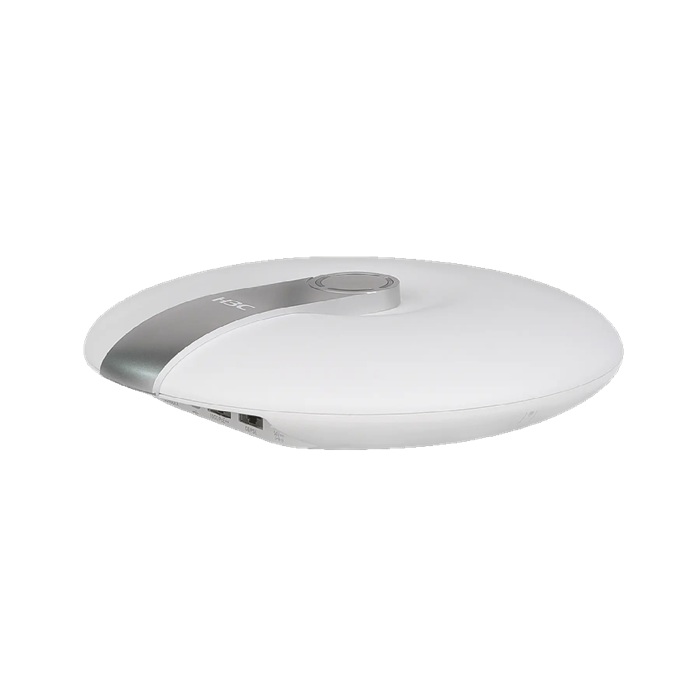

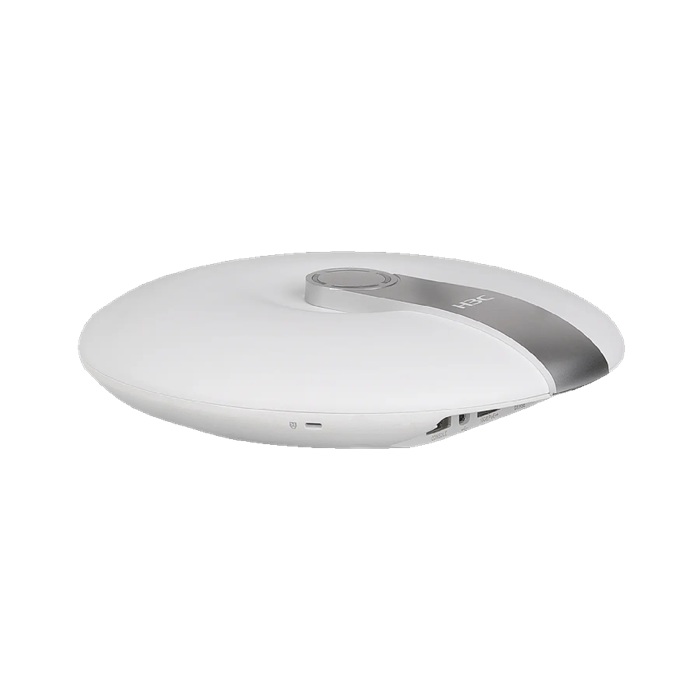

H3C EWP-WA6638-FIT Best price in Dubai UAE
Supports flexible CloudAP, FitAP, and AnchorAP modes for diverse network deployments.
Enables centralized wired and wireless management through Cloudnet and AD-Campus.
Uses OFDMA and DL/UL MU-MIMO to improve efficiency and support high-density connections.
Features BSS Coloring and Target Wake Time to reduce interference and improve power efficiency.
Provides WPA2/WPA3 security, rogue device detection, and encrypted controller links.
Supports intelligent RF optimization, fast roaming, and wireless fault diagnosis.
Offers application identification, traffic prioritization, and secure boot protection.
H3C EWP-WA6638-FIT Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA6638 – Wi-Fi 6 Triple-Radio High-Performance Access Point Distributor for Africa dsrtech.ae, H3C Dubai
Hardware Specifications
| Weight | 1.28 kg |
| Dimensions (W × D × H) | 239 × 236 × 52 mm (without mounting brackets) |

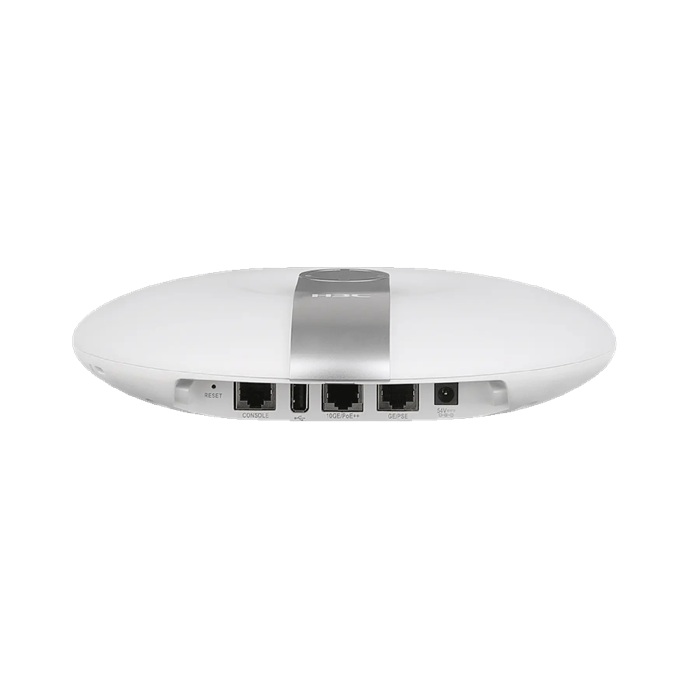

| Ethernet Interfaces | 1 × 100/1000M/2.5G/5G/10G RJ-45 Multigigabit Ethernet PoE input; 1 × 100/1000M RJ-45 Ethernet PoE output |
| Console Port | 1 × RJ-45 management console port |
| USB Port | 1 × USB 2.0, 2.5 W |
| PoE Input | 802.3bt/at over Multigigabit Ethernet |
| PoE Output | 802.3af over Ethernet |
| Local Power Supply | 54 V DC, center-positive circular plug (adapter sold separately) |
| Antenna | Built-in omnidirectional antenna |
| Antenna Gain | Peak gain: 5.8 GHz 5.3 dBi, 5.2 GHz 4.7 dBi, 2.4 GHz 4.8 dBi. Equivalent gain: 4 dBi, 4 dBi and 3 dBi, respectively |
| Built-in IoT Module | Bluetooth Low Energy (BLE) 5.0 |
| Frequency Bands | 2.4 GHz: 2.400–2.4835 GHz; 5 GHz: 5.150–5.250 GHz, 5.250–5.350 GHz, 5.470–5.725 GHz and 5.725–5.850 GHz. Available bands depend on the regulatory domain |
| Modulation Technology | 802.11b: DSSS; 802.11a/g/n/ac: OFDM; 802.11ax: OFDMA |
| Modulation Modes | 802.11b: BPSK, QPSK, CCK; 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM; 802.11ac: up to 256-QAM; 802.11ax: up to 1024-QAM |
| Data Rates | 802.11b: 1–11 Mbps; 802.11a/g: 6–54 Mbps; 802.11n: 6.5–600 Mbps; 802.11ac: 6.5–6,933 Mbps; 802.11ax: 7.3–9,608 Mbps |
| Maximum Transmit Power | 5 GHz: 26 dBm; 2.4 GHz: 26 dBm. Actual power depends on local regulations and excludes antenna gain |
| Adjustable Power Granularity | 1 dBm increments |
| Reset Button | Factory reset and Cloud AP/Fit AP mode control |
| Security Slot | Kensington security slot |
| Installation | Wall or ceiling mounting; bracket preinstalled |
| LED Indicators | Yellow, green and blue status LEDs for boot, association, operation and fault states |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | −40°C to +70°C |
| Humidity | Operating and storage: 5%–95%, non-condensing |
| Protection Class | IP42 |
| Surge Protection | 4 kV common mode |
| Power Consumption | 47.25 W (including PSE and USB); 29.75 W (excluding PSE and USB) |
| Safety Standards | IEC/EN 62368-1, GB 4943.1, SRRC |
| EMC Standards | EN 301 489-1/-3/-17, EN 60601-1-2, EN 55032/55035, CISPR 32/35, AS/NZS CISPR32, ICES-003 Issue 7, GB/T 9254.1/.2, GB 17625.1/.2, IEC/EN 61000-4-2/-3/-4/-5/-6/-8/-11 and IEC/EN 61000-3-2/-3 |
| Radio Standards | ETSI EN 300 328, EN 301 893, EN 300 440; FCC Part 15E |
| RoHS Standards | Directive 2011/65/EU; (EU) 2015/863 |
| Health Standards | EN 50385:2017, EN IEC 62311:2020 |
| MTBF (25°C) | 306,015 hours |
Software Specifications
| Product Type | Indoor tri-radio Wi-Fi 6 access point supporting 802.11a/b/g/n/ac/ac Wave 2/ax |
| Operating Modes | Fit AP, Cloud AP and Anchor AP; modes can be switched through CLI, wireless controller, Cloudnet platform or reset button |
| Supported Controllers | H3C WX2800X, WX3800X and WX5800X series |
| Tri-Radio Configuration | 5.8 GHz: 4×4:4, 2.4 Gbps; 5.2 GHz: 4×4:4, 2.4 Gbps; 2.4 GHz: 4×4:4, 1.15 Gbps |
| Channel Widths | 5.8 GHz and 5.2 GHz: 20/40/80 MHz; 2.4 GHz: 20/40 MHz |
| Maximum Transmission Speed | 5.95 Gbps across all three radios |
| Maximum Clients | 1,536 total; up to 512 per radio, depending on the environment |
| Maximum BSSIDs | 16 per radio |
| Wi-Fi 6 Features | Uplink/downlink MU-MIMO, OFDMA, Target Wake Time (TWT), BSS coloring and spatial reuse |
| WLAN Basics | A-MPDU, A-MSDU, LDPC, LACP, STBC, DFS, TxBF, CCF, MRC and CDD/CSD |
| Tunnel Management | CAPWAP, AC discovery, NAT, DTLS encryption, IPv4/IPv6, AC time synchronization, dual tunnels, PPPoE client and IPsec in Cloud AP mode |
| RF and WLAN Management | Automatic channel, power and bandwidth adjustment; SSID hiding; client limits; centralized, local and policy forwarding; VLAN binding; user isolation; traffic-, user- and band-based load balancing; band steering; 802.11k/v/r roaming |
| Additional WLAN Features | Multicast enhancement, BLE/RSSI location in Fit AP mode, IoT gateway support, Mesh, wireless probing, Hotspot 2.0 and Bonjour gateway |
| User Authentication | 802.1X, MAC, Portal, PSK, Private-PSK/PPSK and social media authentication in Cloud AP mode |
| EAP Methods | EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, EAP-FAST, GTC and EAP-SIM |
| Wireless Security | WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE, AES, TKIP and CCMP |
| Forwarding Security | Packet and MAC filtering, broadcast storm suppression, EAD, management frame protection, WIPS and IP source guard (IPSG) |
| Layer 2 and Layer 3 | Static/DHCP IP configuration; DHCP server/client/relay; NAT, NAT66 and NAT logging; LLDP; STP; IPv4/IPv6 ICMP, ACL, DHCP, TFTP, FTP and DNS |
| Service Assurance | Remote AP, Doctor AP, spectrum analysis, 802.11ax-only access, bandwidth guarantee, port aggregation, broadcast suppression, weak-signal client blocking, roaming optimization and software recovery |
| QoS | WMM, QoS mapping and prioritization, packet filtering, traffic classification, CAR, user bandwidth management, ATF, CAC, application identification, SQA and UCC |
| Power Saving | Green AP mode, U-APSD and SM Power Save |
| Management and Maintenance | Web GUI via HTTP/HTTPS, SNMP v1/v2c/v3, MIB, SSH v2, Telnet, FTP/TFTP, CLI, Syslog, secure boot and NETCONF |
| IEEE Standards | 802.11a/b/g/n/ac/ac Wave 2/ax; 802.11d/e/h/i/w/u; 802.11k/v/r; 802.3af/at/bt; 802.15.1 |
| Wi-Fi Certifications | Wi-Fi 6, WMM, WPA, WPA2 and WPA3 Enterprise/Personal (SAE), Enhanced Open (OWE) |
