H3C 9801A5BG Best price in Dubai UAE
Delivers high-performance Wi-Fi 7 connectivity with 2×2 MIMO on 2.4 GHz, 5 GHz, and 6 GHz bands, supporting up to 6.453 Gbps aggregated data rates and 320 MHz channels.

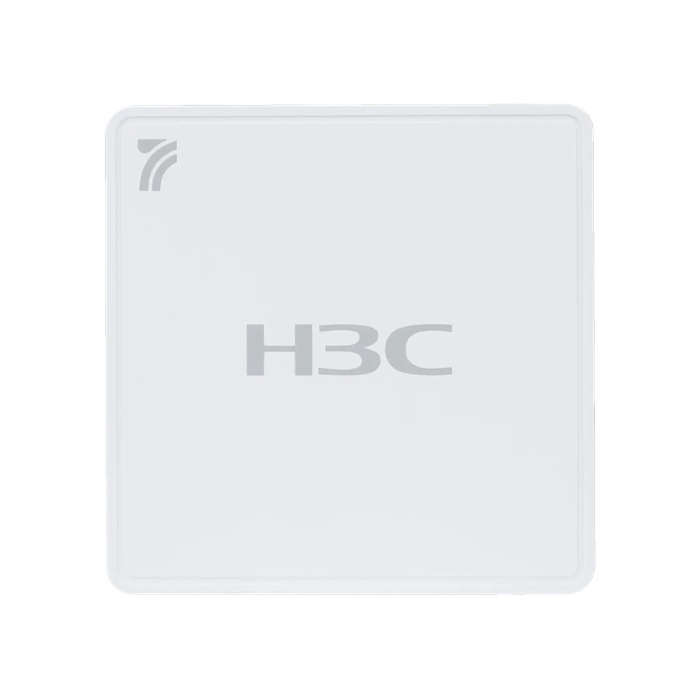

Features a compact 86 × 86 mm design that fits standard 86-type switch or socket back boxes, making it ideal for hotels, residences, and small offices.

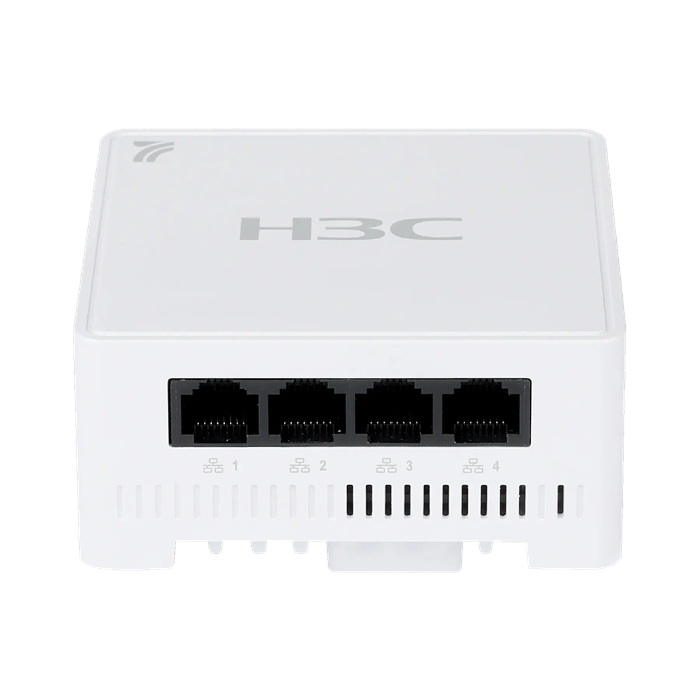

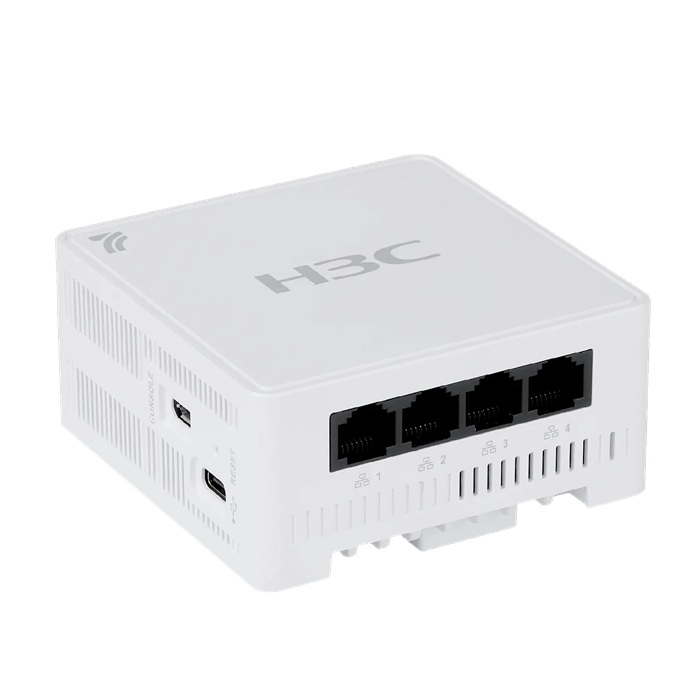

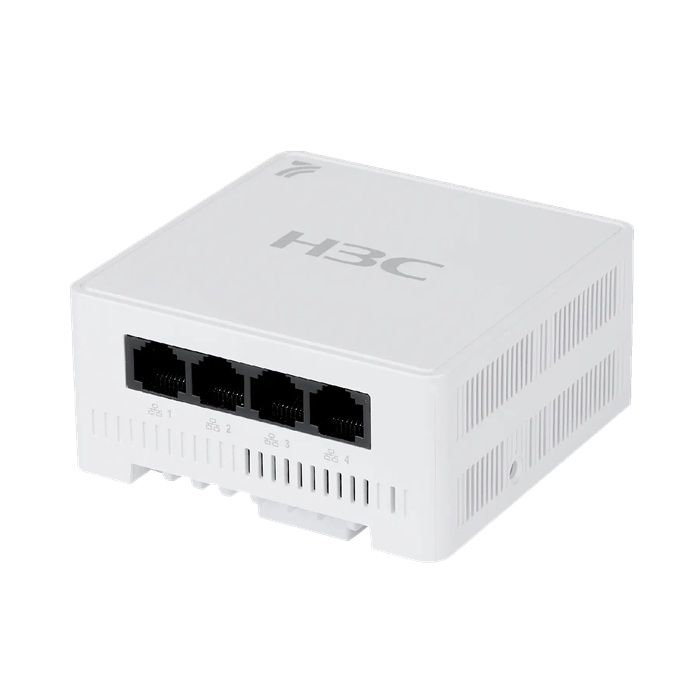

Provides 1× 2.5GbE uplink and 4× GE downlink ports for reliable wired connectivity to multiple devices.
Supports Wi-Fi 7 technologies including 4096-QAM, MLO, enhanced OFDMA, and 320 MHz channels for improved speed, capacity, and low-latency performance.
Supports CloudAP, FitAP, and AnchorAP deployment modes with H3C Cloudnet and AD-Campus for flexible and centralized network management.
Enhances network performance with intelligent RF management, application control, fast roaming, station access control, and wireless fault diagnosis.
Provides secure and energy-efficient operation with WPA2/WPA3, WIPS, CAPWAP/DTLS protection, secure boot, and AI-powered dynamic power saving.
H3C 9801A5BG Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA7322H-HI – Wi-Fi 7 Dual-Radio High-Performance Access Point Distributor for Africa dsrtech.ae, H3C Dubai
Hardware Specifications
| Weight | 259 g |
| Dimensions (W × D × H) | 86 × 86 × 40 mm |
| Interfaces | 4 × Gigabit Ethernet RJ-45 downlink/LAN; 1 × 2.5G Ethernet RJ-45 uplink/LAN/WAN |
| Console Port | 1 × Micro-USB management port |
| USB Port | 1 × USB 2.0, 2.5W |

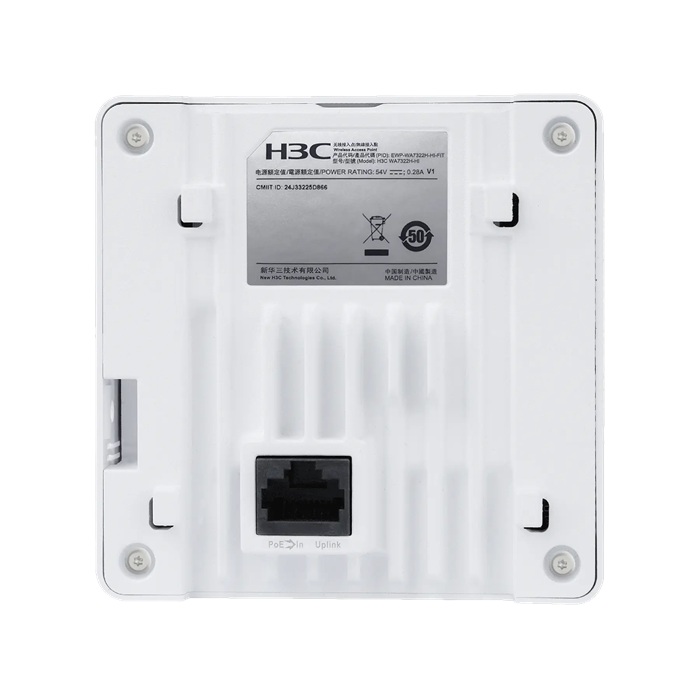

| PoE Input | 802.3at/af via 2.5G Ethernet |
| Local Power | PoE injector, sold separately |
| Antenna | Built-in omni-directional; peak gain up to 5.2dBi |
| Frequency Bands | 2.4GHz, 5GHz and 6GHz |
| Maximum Data Rate | 802.11be: up to 23,059 Mbps |
| Maximum Transmit Power | 23dBm on 2.4GHz, 5GHz and 6GHz |
| Power Adjustment | 1dBm increments |
| Installation | Wall mounting |
| Operating Temperature | 0°C to +40°C |
| Humidity | 5% to 95%, non-condensing |
| Protection | IP31; 4KV common-mode surge protection |
| Maximum Power Consumption | 15W via 802.3at; 12.5W via 802.3af |
| MTBF | 3,810,889 hours at 25°C |
| Safety Standards | IEC/EN 62368-1, GB 4943.1 |
| Radio Standards | ETSI EN 300 328, EN 301 893, FCC Part 15E, ETSI EN 303 687 |
| RoHS | EN IEC 63000:2018 |
Software Specifications
| Product Type | Wall-plate dual-radio Wi-Fi 7 AP |
| AP Modes | Fit AP, Cloud AP and Anchor AC |
| Wireless Controllers | H3C WX2800X, WX3800X and WX5800X Series |
| Radio Configuration | 5GHz 2×2:2 + 2.4GHz 2×2:2; or 6GHz 2×2:2 + 2.4GHz 2×2:2 |
| Channel Bandwidth | 6GHz up to 320MHz; 5GHz up to 160MHz; 2.4GHz up to 40MHz |
| Maximum Transmission Speed | Up to 6.453Gbps |
| Maximum Clients | 1,024 |
| Maximum BSSIDs | 16 per radio |
| Wi-Fi 7 Features | 320MHz channels, 4096-QAM, MLO, preamble puncturing, Multi-RU, MU-MIMO and OFDMA |
| Wi-Fi 6 Features | TWT, BSS Coloring/Spatial Reuse, MU-MIMO and OFDMA |
| WLAN Features | A-MPDU, A-MSDU, LDPC, STBC, DFS, TxBF, MRC and CDD/CSD |
| CAPWAP & Tunnel | CAPWAP, DTLS, IPv4/IPv6, dual tunnels and AC discovery |
| Forwarding | Centralized, local and policy forwarding |
| RF Management | Automatic channel, power and bandwidth adjustment |
| Roaming & Mesh | 802.11k/v/r roaming; secure multi-hop Mesh |
| Load Balancing | Traffic-, user- and frequency-based load balancing |
| Authentication | 802.1X, MAC, Portal, PSK, PPSK and EAP authentication |
| Wireless Security | WPA2, WPA3, OWE, AES, TKIP, CCMP, WIPS and management frame protection |
| Layer 2/3 | DHCP, NAT/NAT66, LLDP, STP, ACL, DNS, FTP and TFTP |
| Multicast | IGMP/MLD Snooping and multicast-to-unicast conversion |
| Wireless Location | RSSI-based location in Fit AP mode |
| Hotspot | Hotspot 2.0 support in Fit AP mode |
| IoT | RFID/Zigbee gateway support |
| QoS | WMM, QoS, ATF, CAC, CAR and bandwidth management |
| Power Saving | Green AP, U-APSD and SM Power Save |
| Service Assurance | Remote AP, Doctor AP, spectrum analysis and intelligent bandwidth guarantee |
| Management | Web GUI, SNMP, CLI, SSH, Telnet, Syslog, TFTP/FTP and Netconf |
| Power Management | Dynamic MIMO adjustment and wireless client power-saving features |
| Standards | IEEE 802.11a/b/g/n/ac/ac Wave 2/ax/be; 802.3af/at/bt; 802.3az |
| Wi-Fi Certification | Wi-Fi 7, Wi-Fi 6E, Wi-Fi 6, WMM, WPA, WPA2 and WPA3 |
