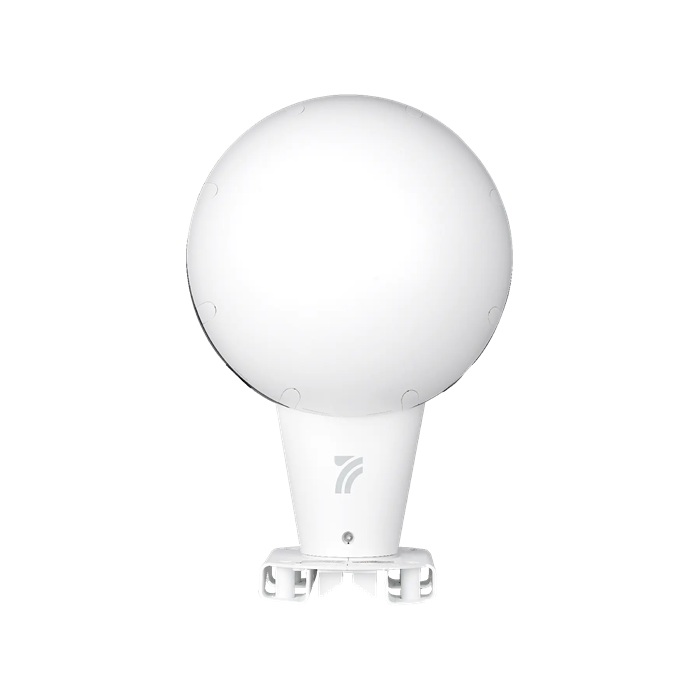

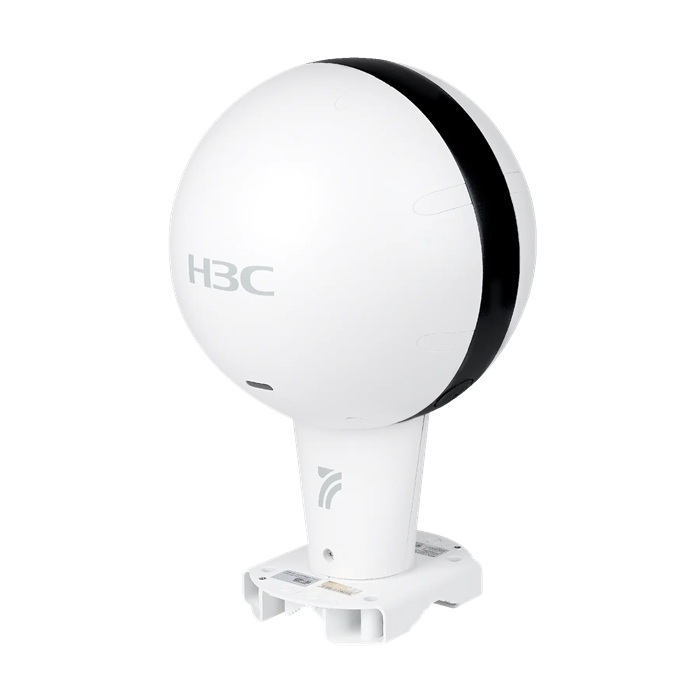

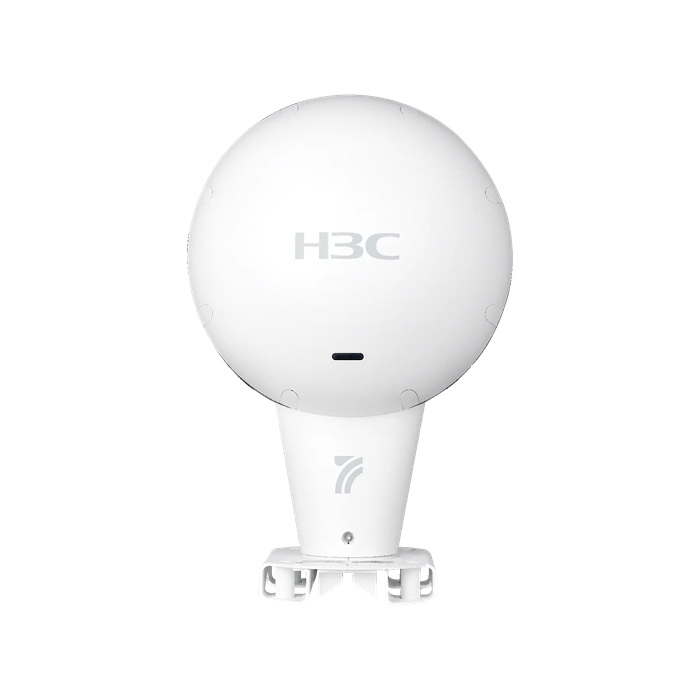

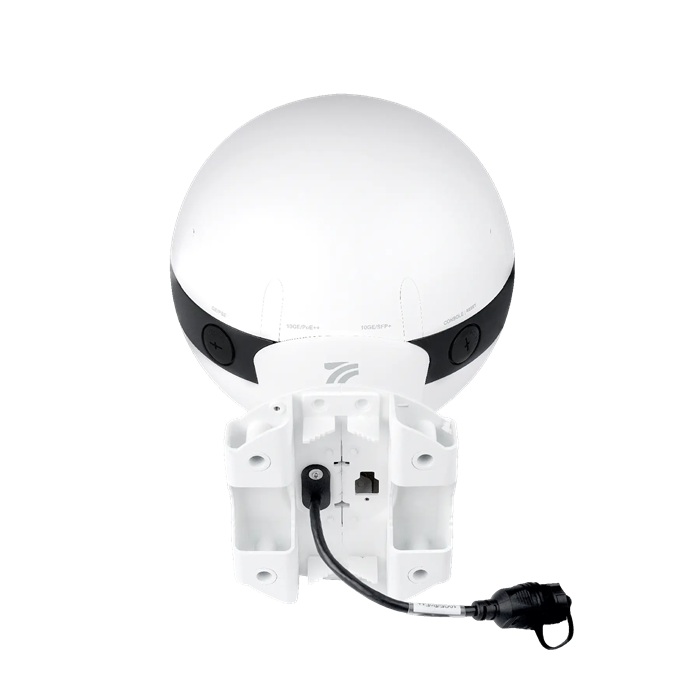

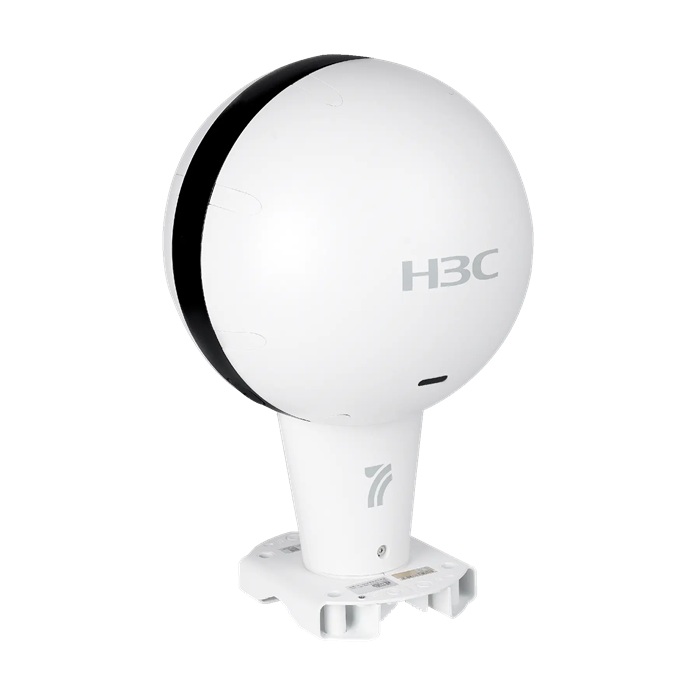

H3C EWP-WA7630X-FIT Best price in Dubai UAE
Delivers high-performance Wi-Fi 7 connectivity with triple-radio 4×4 MIMO across 2.4 GHz, 5 GHz, and 6 GHz bands, supporting up to 18.67 Gbps aggregated throughput.
Supports 320 MHz channels, 4096-QAM, MLO, and enhanced OFDMA for faster speeds, higher capacity, and low-latency applications.
Provides reliable connectivity with 10GbE and 10G SFP+ uplinks and flexible deployment through CloudAP, FitAP, and AnchorAP modes.
Features a durable dome-shaped design with 360° coverage and IP68 protection, making it suitable for outdoor and high-density wireless deployments.
Integrates Bluetooth, PoE-out, and GPS capabilities to support IoT connectivity, positioning, and smart applications.
Enhances network performance with intelligent RF management, application control, fast roaming, station access control, and wireless fault diagnosis.
Provides strong security and energy efficiency with WPA2/WPA3, WIPS, CAPWAP/DTLS protection, secure boot, and AI-powered dynamic power saving.
H3C EWP-WA7630X-FIT Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA7630X – Wi-Fi 7 Triple-Radio High-Performance Access Point Distributor for Africa dsrtech.ae, H3C Dubai
Hardware Specifications
| Weight | 5 kg |
| Dimensions (W × D × H) | 270 × 270 × 411 mm |
| Interfaces | 1 × 10G Multigigabit RJ-45 PoE input; 1 × 10G SFP+; 1 × Gigabit RJ-45 PoE output |
| Console Port | 1 × RJ-45 management console |
| PoE Input | 802.3bt/at |
| PoE Output | 802.3af |
| Local Power | PoE injector, sold separately |
| Antenna | Built-in omni-directional; peak gain up to 6.4dBi |
| IoT | BLE 5.4 |
| Frequency Bands | 2.4GHz, 5GHz and 6GHz |
| Maximum Data Rate | 802.11be: up to 23,059 Mbps |
| Maximum Transmit Power | 6GHz: 30dBm; 5GHz: 30dBm; 2.4GHz: 33dBm |
| Power Adjustment | 1dBm increments |
| Installation | Wall or pole mounting; mounting bracket included |
| Operating Temperature | –40°C to +65°C |
| Humidity | 0% to 100%, non-condensing |
| Protection | IP68; 6KV common-mode surge protection |
| Maximum Power Consumption | 46.4W via 802.3bt/PoE injector; 26.8W via 802.3at |
| Security | Kensington security slot; factory reset button |
| MTBF | 957,897 hours at 25°C |
Software Specifications
| Product Type | Outdoor triple-radio Wi-Fi 7 AP |
| AP Modes | Fit AP, Cloud AP and Anchor AP |
| Wireless Controllers | H3C WX2800X, WX3800X and WX5800X Series |
| Radio Configuration | 6GHz 4×4:4 + 5GHz 4×4:4 + 2.4GHz 4×4:4; dual-5GHz option available |
| Channel Bandwidth | 6GHz up to 320MHz; 5GHz up to 160MHz; 2.4GHz up to 40MHz |
| Maximum Transmission Speed | Up to 18.67Gbps |
| Maximum Clients | 1,536 |
| Maximum BSSIDs | 16 per radio |
| Wi-Fi 7 Features | 320MHz channels, 4096-QAM, MLO, preamble puncturing, Multi-RU, MU-MIMO and OFDMA |
| Wi-Fi 6 Features | TWT, BSS Coloring/Spatial Reuse, MU-MIMO and OFDMA |
| WLAN Features | A-MPDU, A-MSDU, LDPC, LACP, STBC, DFS, TxBF, CCF, MRC and CDD/CSD |
| CAPWAP & Tunnel | CAPWAP, DTLS, IPv4/IPv6, dual tunnels, PPPoE and IPsec |
| Forwarding | Centralized, local and policy forwarding |
| RF Management | Automatic channel, power and bandwidth adjustment |
| Roaming & Mesh | 802.11k/v/r roaming; secure multi-hop Mesh |
| Load Balancing | Traffic-, user- and frequency-based load balancing |
| Band Steering | Steers Wi-Fi 6E/7 clients toward the 6GHz band |
| Authentication | 802.1X, MAC, Portal, PSK, PPSK, EAP and Cloud social login |
| Wireless Security | WPA2, WPA3, OWE, AES, TKIP, CCMP, WIPS, IPSG and management frame protection |
| Layer 2/3 | DHCP, NAT/NAT66, LLDP, STP, ACL, DNS, FTP and TFTP |
| Multicast | IGMP/MLD Snooping and multicast-to-unicast conversion |
| Wireless Location | BLE and RSSI-based location in Fit AP mode |
| IoT | RFID/Zigbee gateway support through PSE port |
| Hotspot | Hotspot 2.0 support in Fit AP mode |
| Bonjour Gateway | mDNS forwarding across VLANs |
| QoS | WMM, QoS, ATF, CAC, CAR and user bandwidth management |
| Power Saving | Green AP, U-APSD and SM Power Save |
| Service Assurance | Remote AP, Doctor AP, spectrum analysis, intelligent bandwidth guarantee, roaming optimization and fast forwarding |
| Management | Web GUI, SNMP, CLI, SSH, Telnet, Syslog, FTP/TFTP and Netconf |
| Secure Boot | Firmware integrity protection with trusted boot chain |
| Standards | IEEE 802.11a/b/g/n/ac/ac Wave 2/ax/be; 802.3af/at/bt; 802.3bz/az; 802.15.1 |
| Wi-Fi Certification | Wi-Fi 7, Wi-Fi 6E, Wi-Fi 6, WMM, WPA, WPA2 and WPA3 |
