H3C 9801A4A3 Best price in Dubai UAE
Delivers high-performance Wi-Fi 7 connectivity with triple-radio 4×4 MIMO and up to 18.44 Gbps aggregated throughput across 2.4 GHz, 5 GHz, and 6 GHz bands.
Supports 320 MHz channels, 4096-QAM, Multi-Link Operation (MLO), and enhanced OFDMA for faster speeds, higher capacity, and low-latency applications.
Provides flexible networking with 10GbE, GE, and 10G SFP+ uplinks, redundant connectivity, and extended PoE+ support for reliable deployments.
Supports CloudAP, FitAP, and AnchorAP modes with H3C Cloudnet and AD-Campus for flexible cloud-based and on-premises management.
Integrates Bluetooth, USB, and PoE-out connectivity to support IoT devices, positioning services, and diverse smart applications.
Enhances network reliability and user experience with intelligent RF optimization, application control, fast roaming, and wireless fault diagnosis.
Provides comprehensive security with WPA2/WPA3, WIPS, CAPWAP/DTLS protection, secure boot, and AI-powered dynamic power saving.
H3C 9801A4A3 Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA7638 – Wi-Fi 7 Triple-Radio High-Performance Access Point Distributor for Africa dsrtech.ae, H3C Dubai
Hardware Specifications
| Weight | 1.9 kg |
| Dimensions (W × D × H) | 265 × 265 × 48 mm |

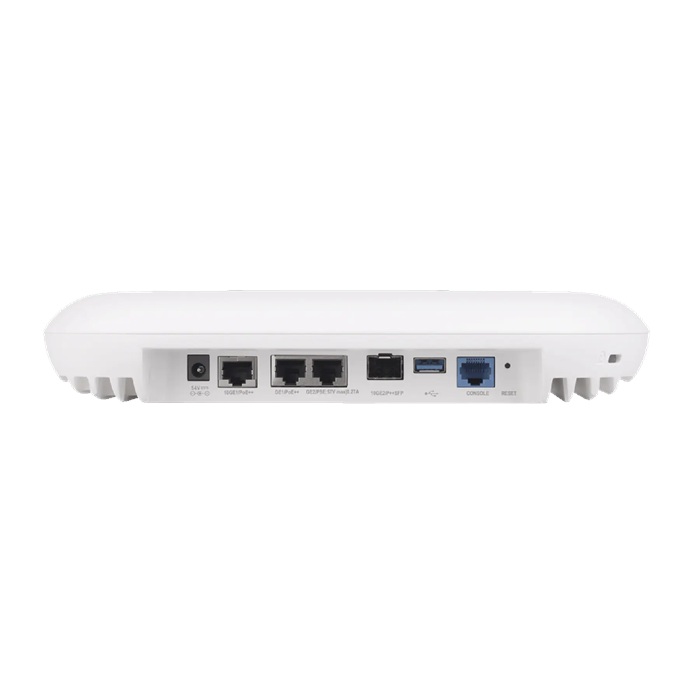

| Interfaces | 1 × 10G Multigigabit RJ-45; 1 × 10G SFP+; 2 × Gigabit RJ-45 |
| Console Port | 1 × RJ-45 |
| USB Port | 1 × USB 2.0, 2.5W |
| PoE | 802.3bt/at input; 802.3af output |
| Local Power | 54V DC |
| Antenna | Built-in omni-directional; up to 6.0dBi gain |
| IoT | BLE 5.4 |
| Frequency Bands | 2.4GHz, 5GHz and 6GHz |
| Maximum Data Rate | 802.11be: up to 23,059 Mbps |
| Maximum Transmit Power | 26dBm on 2.4GHz, 5GHz and 6GHz |
| Installation | Wall or ceiling mounting |
| Operating Temperature | –10°C to +50°C |
| Humidity | 5% to 95%, non-condensing |
| Protection | IP42; 4KV common-mode surge protection |
| Maximum Power Consumption | 39.5W via 802.3bt; 26.8W via 802.3at; 57W via DC |
| MTBF | 906,923 hours at 25°C |
Software Specifications
| Product Type | Indoor triple-radio Wi-Fi 7 AP |
| AP Modes | Fit AP, Cloud AP and Anchor AP |
| Wireless Controllers | H3C WX2800X, WX3800X and WX5800X Series |
| Radio Configuration | 6GHz 4×4:4, 5GHz 4×4:4 and 2.4GHz 4×4:4 |
| Channel Bandwidth | 6GHz up to 320MHz; 5GHz up to 160MHz; 2.4GHz up to 40MHz |
| Maximum Transmission Speed | Up to 18.441Gbps |
| Maximum Clients | 1,536 |
| Wi-Fi 7 Features | 320MHz channels, 4096-QAM, MLO, Multi-RU, preamble puncturing, MU-MIMO and OFDMA |
| Wi-Fi 6 Features | TWT, BSS Coloring, MU-MIMO and OFDMA |
| Roaming & Mesh | 802.11k/v/r roaming; secure multi-hop Mesh |
| Forwarding | Centralized, local and policy forwarding |
| Authentication | 802.1X, MAC, Portal, PSK, PPSK and Private-PSK |
| Wireless Security | WPA2, WPA3, OWE, AES, TKIP and CCMP |
| Network Protocols | CAPWAP, DTLS, LACP, LLDP, STP, PPPoE and IPsec |
| RF Management | Automatic channel, power and bandwidth adjustment; spectrum analysis |
| QoS | WMM, QoS, CAC, CAR and bandwidth management |
| IoT & Location | BLE, RSSI location and RFID/Zigbee gateway support |
| Multicast | IGMP/MLD Snooping and multicast-to-unicast conversion |
| Management | Web GUI, SNMP, CLI, SSH, Telnet, Syslog and Netconf |
| Power Saving | Green AP, U-APSD and SM Power Save |
| Standards | IEEE 802.11a/b/g/n/ac/ac Wave 2/ax/be; 802.3af/at/bt; 802.3bz |
| Wi-Fi Certification | Wi-Fi 7, Wi-Fi 6E, Wi-Fi 6, WMM, WPA2 and WPA3 |
