H3C WA6520 Best price in Dubai UAE

H3C WA6520 Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA6520 Wi-Fi 6 Dual-Radio Wireless Access Point Distributor for Africa dsrtech.ae, H3C Dubai

Weight	0.5 kg
Dimensions (W × D × H)	180 × 180 × 32 mm (without mounting brackets)

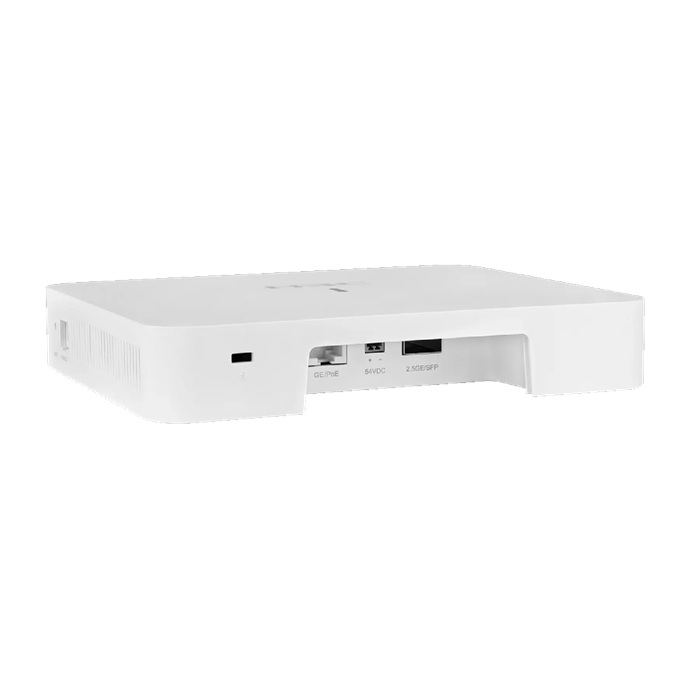

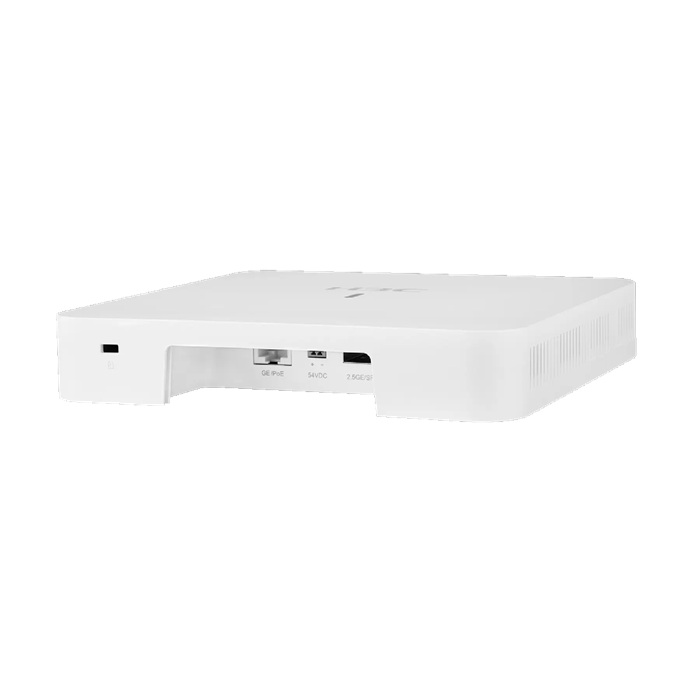

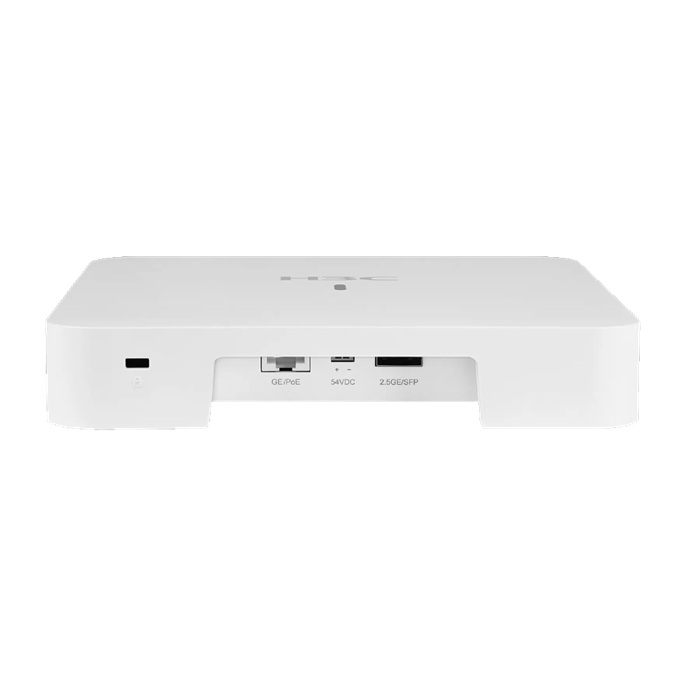

Interfaces	1 × 10/100/1000M RJ-45 Ethernet with PoE input; 1 × 1000M/2.5G optical port
Console Port	1 × RJ-45 management console port
PoE Input	IEEE 802.3af, 10/100/1000M Ethernet
Local Power Supply	54V DC Phoenix connector power adapter (sold separately)
Antenna Type	Built-in omnidirectional antenna
Antenna Gain	5 GHz: 5 dBi peak, 4 dBi equivalent; 2.4 GHz: 4 dBi peak, 3 dBi equivalent
Built-in IoT Module	BLE 5.1
Frequency Bands	2.400–2.4835 GHz; 5.150–5.250 GHz; 5.250–5.350 GHz; 5.470–5.725 GHz; 5.725–5.850 GHz. Availability depends on the regulatory domain.
Modulation Technology	802.11b: DSSS; 802.11a/g/n/ac: OFDM; 802.11ax: OFDMA
Modulation Modes	802.11b: BPSK, QPSK, CCK; 802.11a/g/n: BPSK, QPSK, 16QAM, 64QAM; 802.11ac: up to 256QAM; 802.11ax: up to 1024QAM
Data Rates	802.11b: 1–11 Mbps; 802.11a/g: 6–54 Mbps; 802.11n: 6.5–600 Mbps; 802.11ac: 6.5–6,933 Mbps; 802.11ax: 7.3–9,608 Mbps
Maximum Transmit Power	5 GHz: 23 dBm; 2.4 GHz: 23 dBm. Actual power depends on local regulations.
Adjustable Power Granularity	1 dBm increments
Reset Button	Factory reset and CloudAP/FitAP mode control
Security Slot	Kensington security slot
Installation	Wall or ceiling mounting; mounting bracket preinstalled
LED Indicators	Yellow, green and blue status LEDs for boot, association, operation and fault states
Operating Temperature	0°C to +50°C
Storage Temperature	−40°C to +70°C
Operating Humidity	0%–95%, non-condensing
Storage Humidity	0%–95%, non-condensing
Protection Class	IP41
Surge Protection	Common mode: 4 kV
Power Consumption	12.95 W
Safety Standards	IEC/EN 62368-1, GB 4943.1, SRRC
EMC Standards	EN 301 489-1/-3/-17, EN 60601-1-2, EN 55032, EN 55035, CISPR 32/35, AS/NZS CISPR 32, ICES-003 Issue 7, GB/T 9254.1/.2, GB 17625.1/.2, IEC/EN 61000-4-2/-3/-4/-5/-6/-8/-11 and IEC/EN 61000-3-2/-3
Radio Standards	ETSI EN 300 328, EN 301 893, EN 300 440, FCC Part 15E
RoHS Standards	EN IEC 63000:2018
Health Standards	EN 50385:2017, EN IEC 62311:2020
MTBF (25°C)	864,581 hours

Product Type	Indoor dual-radio Wi-Fi 6 AP supporting IEEE 802.11a/b/g/n/ac/802.11ac Wave 2/ax
Operating Modes	Fit AP (Wireless LAN Controller managed) and Cloud AP (H3C Intelligent O&M platform managed); modes can be switched through CLI, controller, platform or reset button
Supported Controllers	H3C WX2800X, WX3800X and WX5800X Series Wireless LAN Controllers
Radio Configuration	Dual-radio, 2 × 2:2 MIMO; 5 GHz up to 2.4 Gbps and 2.4 GHz up to 575 Mbps
Wireless Standards and Bandwidth	5 GHz: 802.11a/n/ac/ax at 20/40/80/160 MHz; 2.4 GHz: 802.11b/g/n/ax at 20/40 MHz
Maximum Transmission Speed	2.975 Gbps combined
Maximum Clients	256 total (128 per radio)
Maximum BSSIDs	8 per radio
Wi-Fi 6 Features	Uplink/downlink MU-MIMO and OFDMA, Target Wake Time (TWT), BSS Coloring and spatial reuse
WLAN Optimization	A-MPDU, A-MSDU, LDPC, LACP, STBC, DFS, TxBF, cellular coexistence filtering, MRC and CDD/CSD
Tunnel Management	CAPWAP tunnels; AC discovery through unicast, broadcast, DNS, DHCP or static IP; NAT, DTLS encryption, IPv4/IPv6, AC time synchronization and dual-AC tunnels
Additional Connectivity	PPPoE client and IPsec support in Cloud AP mode
RF Management	Automatic channel, power and bandwidth adjustment; SSID hiding; client limits; band steering; traffic-, user- and frequency-based load balancing
Forwarding and VLAN	Centralized, local and policy forwarding; SSID/VLAN-based local forwarding; VLAN binding by interface, SSID or MAC; VLAN- and SSID-based user isolation
Roaming	802.11k/v smart roaming and 802.11r fast transition
Multicast and Location	Multicast-to-unicast conversion, BLE/RSSI location, Mesh networking, wireless probing and Hotspot 2.0
Authentication	802.1X, MAC, portal, guest/captive portal, PSK, Private PSK/PPSK and cloud-based social media authentication
EAP Support	EAP-TLS, EAP-TTLS, PEAP, MSCHAPv2, EAP-FAST, EAP-GTC and EAP-SIM
Wireless Security	WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Enhanced Open (OWE), TKIP, CCMP and AES
Security Protection	Packet and MAC filtering, broadcast storm suppression, management frame protection, wireless EAD, WIPS and IP source guard (IPSG)
Layer 2 and Layer 3	Static/DHCP IP, DHCP server/client/relay, NAT/NAT66/NAT logging, LLDP, and IPv4/IPv6 ICMP, ACL, DHCP, TFTP, FTP and DNS
Service Assurance	Remote AP service continuity, Doctor AP diagnostics, spectrum analysis, 802.11ax-only access, intelligent bandwidth guarantee, port aggregation, broadcast suppression and weak-signal client access control
Client and RF Optimization	Roaming navigation, active client relinking, channel reuse adjustment, optimized data forwarding, reduced client sleep time and automatic software recovery
QoS	WMM, DSCP/TOS priority, wired/wireless priority mapping, SSID/VLAN QoS policies, Layer 2–4 filtering, CAR, user bandwidth management, Airtime Fairness (ATF) and Call Admission Control (CAC)
Power Saving	Green AP mode, U-APSD and Spatial Multiplexing Power Save
Management	Web management over HTTP/HTTPS, SNMP v1/v2c/v3 via controller in Fit AP mode, MIB-II, RFC 3418, SSH v2.0, Telnet, FTP, TFTP, CLI, Syslog and NETCONF
Secure Boot	Trusted Boot-Loader and firmware integrity protection
IEEE 802.11 Standards	802.11a/b/g/n/ac/802.11ac Wave 2/ax, 802.11d/e/h/i/w/u and 802.11k/v/r
IEEE 802.3 Standards	802.3af/at/bt
IEEE 802.15 Standards	802.15.1
Wi-Fi Certification	Wi-Fi 6, WMM, WPA, WPA2 and WPA3 Enterprise/Personal (SAE), Enhanced Open (OWE)
