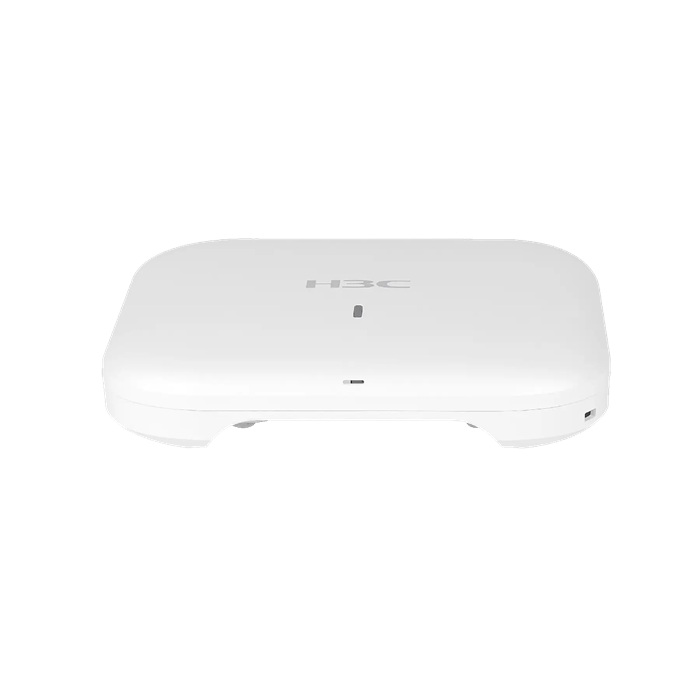

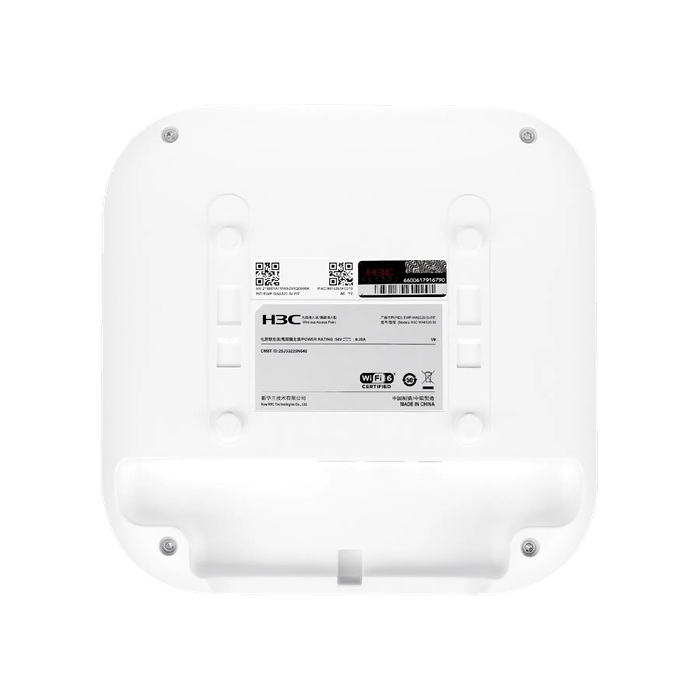

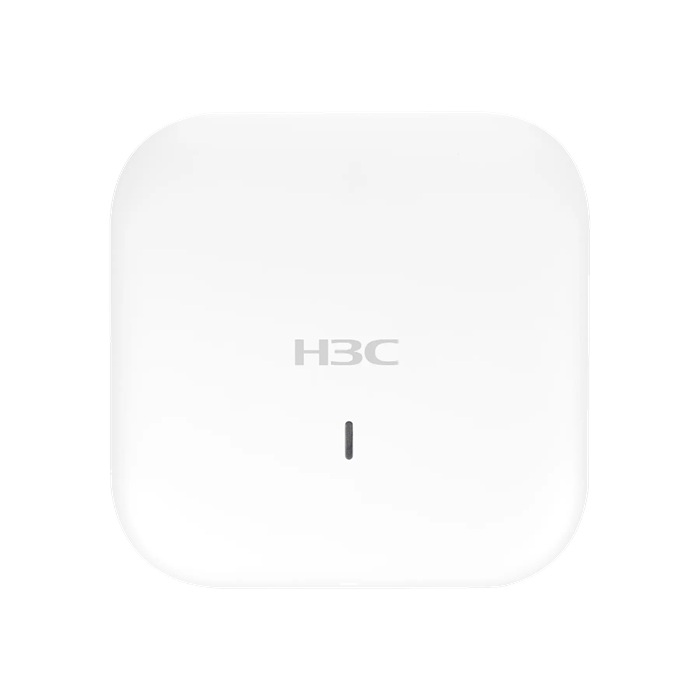

H3C WA6520-SI Best price in Dubai UAE
Supports CloudAP and FitAP modes for flexible deployment.
Provides unified network management through Cloudnet and AD-Campus.
Uses Wi-Fi 6 OFDMA and MU-MIMO for efficient connectivity.
Improves network capacity with BSS Coloring and TWT.
Supports WPA2/WPA3 security, rogue device detection, and DTLS encryption.
Enhances performance with intelligent RF management and fault diagnosis.
H3C WA6520-SI Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA6520-SI Wi-Fi 6 Dual-Radio Wireless Access Point Distributor for Africa dsrtech.ae, H3C Dubai
| Weight | 670 g |
| Dimensions (W × D × H) | 190 × 190 × 40 mm (without mounting brackets) |
| Interface | 1 × 10/100/1000M RJ-45 Ethernet with PoE input |
| Console Port | 1 × RJ-45 management console port |
| PoE Input | IEEE 802.3af, 10/100/1000M Ethernet |
| Local Power Supply | 54V DC Phoenix connector power adapter (sold separately) |
| Antenna Type | Built-in omnidirectional antenna |
| Antenna Gain | 5 GHz: 4 dBi; 2.4 GHz: 3 dBi |
| Built-in IoT Module | BLE 5.1 |
| Frequency Bands | 2.400–2.4835 GHz; 5.150–5.250 GHz; 5.250–5.350 GHz; 5.470–5.725 GHz; 5.725–5.850 GHz. Available bands depend on the regulatory domain. |
| Modulation Technology | 802.11b: DSSS; 802.11a/g/n/ac: OFDM; 802.11ax: OFDMA |
| Modulation Modes | 802.11b: BPSK, QPSK, CCK; 802.11a/g/n: BPSK, QPSK, 16QAM, 64QAM; 802.11ac: up to 256QAM; 802.11ax: up to 1024QAM |
| Data Rates | 802.11b: 1–11 Mbps; 802.11a/g: 6–54 Mbps; 802.11n: 6.5–600 Mbps; 802.11ac: 6.5–6,933 Mbps; 802.11ax: 7.3–9,608 Mbps |
| Maximum Transmit Power | 5 GHz: 23 dBm; 2.4 GHz: 23 dBm. Actual power depends on local regulations. |
| Adjustable Power Granularity | 1 dBm increments |
| Reset Button | Factory reset and CloudAP/FitAP mode control |
| Security Slot | Kensington security slot |
| Installation | Wall or ceiling mounting; mounting bracket preinstalled |
| LED Indicators | Yellow, green and blue status LEDs for boot, association, operation and fault states |
| Operating Temperature | 0°C to +45°C |
| Storage Temperature | −40°C to +70°C |
| Operating Humidity | 5%–95%, non-condensing |
| Storage Humidity | 5%–95%, non-condensing |
| Protection Class | IP41 |
| Surge Protection | Common mode: 4 kV |
| Power Consumption | 13.5 W |
| Safety Standards | IEC/EN 62368-1, GB 4943.1, SRRC |
| EMC Standards | EN 301 489-1/-3/-17, EN 60601-1-2, EN 55032, EN 55035, CISPR 32/35, AS/NZS CISPR 32, ICES-003 Issue 7, GB/T 9254.1/.2, GB 17625.1/.2, IEC/EN 61000-4-2/-3/-4/-5/-6/-8/-11 and IEC/EN 61000-3-2/-3 |
| Radio Standards | ETSI EN 300 328, EN 301 893, EN 300 440, FCC Part 15E |
| RoHS Standards | EN IEC 63000:2018 |
| Health Standards | EN 50385:2017, EN IEC 62311:2020 |
| MTBF (25°C) | 864,581 hours |
