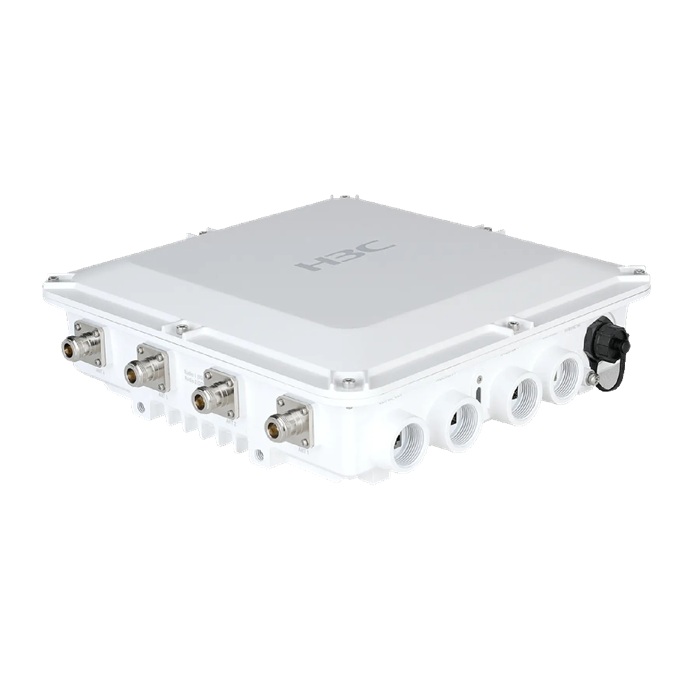

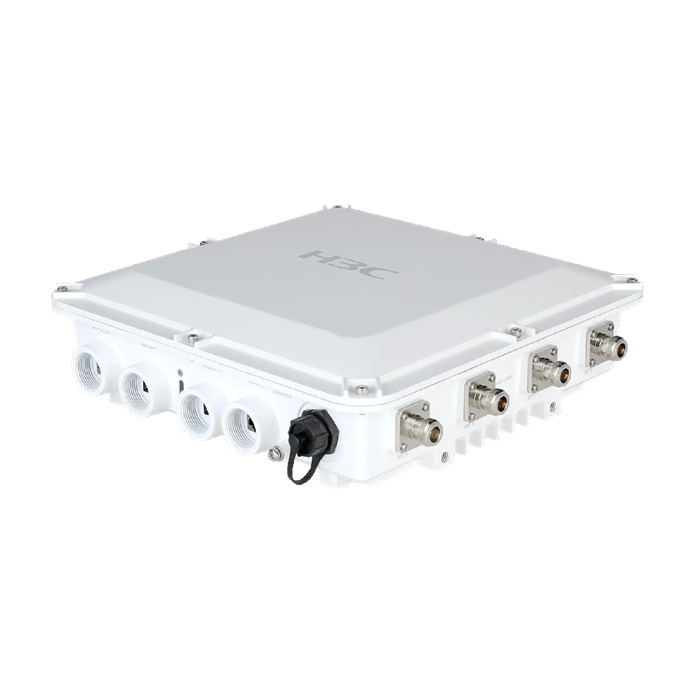

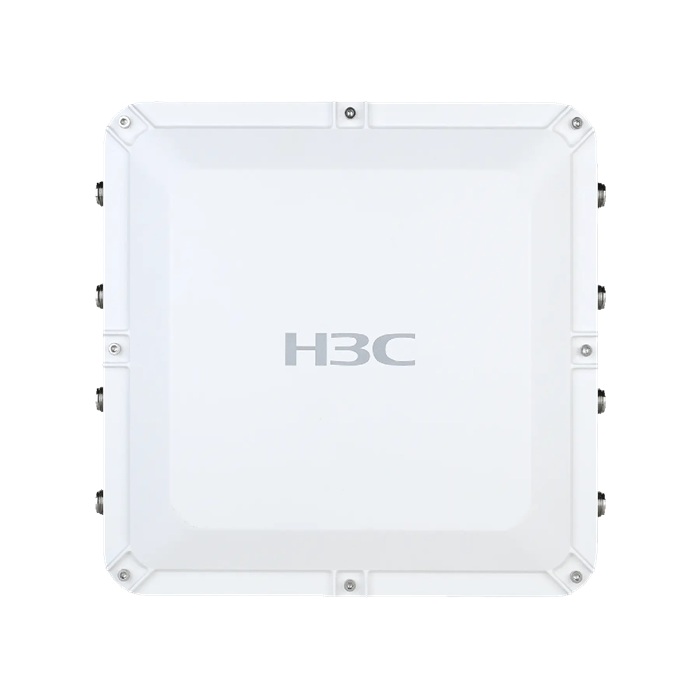

H3C WA6628X Best price in Dubai UAE
Supports CloudAP, FitAP, and AnchorAP modes for flexible deployment across diverse network environments.
Provides centralized wired and wireless management through H3C Cloudnet and AD-Campus platforms.
Uses Wi-Fi 6 OFDMA and DL/UL MU-MIMO to reduce latency, improve spectrum efficiency, and support high-density connections.
Features BSS Coloring and Target Wake Time to reduce interference and improve power efficiency.
Protects wireless networks with WPA2/WPA3 security, WIPS rogue device monitoring, and encrypted CAPWAP links.
Enhances connectivity with intelligent RF optimization, wireless fault diagnosis, traffic management, and fast roaming using 802.11k/v/r.
Supports Layer 4–7 application identification, traffic prioritization, secure boot protection, and energy-saving technologies.
H3C WA6628X Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA6628X – Wi-Fi 6 Dual-Radio High-Performance Access Point Distributor for Africa dsrtech.ae, H3C Dubai
Hardware Specifications
| Weight | 3.2 kg |
| Dimensions (W × D × H) | 280 × 280 × 85 mm (without mounting brackets) |
| Interfaces | 2 × 1000M/2.5G/5G/10G Multigigabit optical SFP+ ports; 1 × 100/1000M RJ-45 Ethernet PoE output port; 1 × RJ-45 management console port |
| PoE Output | 802.3af via 100/1000M Ethernet port |
| Local Power Supply | 100–264V AC |
| Antenna Type | External antenna |
| Antenna Gain | Depends on the external antenna used |
| Frequency Bands | 2.400–2.4835GHz ISM; 5.150–5.250GHz U-NII-1; 5.250–5.350GHz U-NII-2A; 5.470–5.725GHz U-NII-2C; 5.725–5.850GHz U-NII-3/ISM |
| Modulation Technology | 802.11b: DSSS; 802.11a/g/n/ac: OFDM; 802.11ax: OFDMA |
| Modulation Modes | 802.11b: BPSK, QPSK, CCK; 802.11a/g/n: BPSK, QPSK, 16QAM, 64QAM; 802.11ac: up to 256QAM; 802.11ax: up to 1024QAM |
| Data Rates | 802.11b: 1–11Mbps; 802.11a/g: 6–54Mbps; 802.11n: up to 600Mbps; 802.11ac: up to 6,933Mbps; 802.11ax: up to 9,608Mbps |
| Maximum Transmit Power | 5GHz: 33dBm; 2.4GHz: 30dBm (excluding antenna gain) |
| Adjustable Power Granularity | 1dBm increments |
| Installation | Wall or pole mounting; mounting bracket sold separately |
| LED Indicators | Yellow, green and blue status LEDs for boot, association, operating and fault states |
| Operating Temperature | −40°C to +70°C |
| Storage Temperature | −40°C to +85°C |
| Humidity | 0%–100% non-condensing (operating and storage) |
| Protection Class | IP68 |
| Surge Protection | 6kV common mode |
| Power Consumption | 52W including PSE; 37W excluding PSE |
| Safety Standards | IEC/EN 62368-1, GB 4943.1, SRRC |
| EMC Standards | EN 301 489-1/-3/-17, EN 60601-1-2, EN 55032/55035, CISPR 32/35, AS/NZS CISPR32, ICES-003 Issue 7, GB/T 9254.1/.2, GB 17625.1/.2, IEC/EN 61000-4-2/-3/-4/-5/-6/-8/-11 and IEC/EN 61000-3-2/-3-3 |
| Radio Standards | ETSI EN 300 328, EN 301 893, EN 300 440, FCC Part 15E |
| RoHS Standards | Directive 2011/65/EU, (EU) 2015/863 |
| Health Standards | EN 50385:2017, EN IEC 62311:2020 |
| MTBF (25°C) | 856,044 hours |
Software Specifications
| Product Type | Outdoor dual-radio AP supporting 802.11a/b/g/n/ac/AC Wave 2/ax, with dual-radio and triple-radio operating modes |
| Operating Modes | Fit AP (Wireless LAN Controller managed), Cloud AP (Cloudnet or AD-Campus managed) and Anchor AP; switchable via CLI, controller, Cloudnet platform or reset button |
| Supported Controllers | H3C WX2800X, WX3800X and WX5800X Series |
| Frequency and MIMO | Dual-radio: 5GHz 8×8:8 at 4.8Gbps; 2.4GHz 4×4:4 at 1.15Gbps. Triple-radio: 5.8GHz 4×4:4 at 2.4Gbps; 5.2GHz 4×4:4 at 2.4Gbps; 2.4GHz 4×4:4 at 1.15Gbps |
| Channel Bandwidth | 5GHz: 20/40/80MHz; 2.4GHz: 20/40MHz |
| Maximum Transmission Speed | 5.95Gbps in dual-radio mode and 5.95Gbps in triple-radio mode, according to the supplied specifications |
| Maximum Clients | Dual-radio: 1,024 (512 per band); triple-radio: 1,536 (512 per radio) |
| Maximum BSSIDs | 16 per radio |
| Wi-Fi 6 Features | Uplink/downlink MU-MIMO and OFDMA, Target Wake Time (TWT), BSS coloring and spatial reuse |
| WLAN Features | A-MPDU, A-MSDU, LDPC, LACP, STBC, DFS, TxBF, CCF, MRC and CDD/CSD |
| Tunnel Management | CAPWAP, AC discovery, NAT, DTLS encryption, IPv4/IPv6, AC time synchronization, dual AC tunnels, PPPoE client and IPsec in Cloud AP mode |
| RF Management | Automatic channel, power and bandwidth adjustment; SSID hiding; client limits; centralized, local and policy forwarding; VLAN binding by interface, SSID or MAC; VLAN/SSID user isolation |
| Load Balancing | Traffic-, user- and frequency-band-based load balancing; band steering to prioritize 5GHz access |
| Roaming | 802.11k/v smart roaming and 802.11r fast transition |
| Multicast Enhancement | IGMP/MLD snooping and multicast-to-unicast conversion |
| Wireless Location | BLE and RSSI location in Fit AP mode |
| Mesh and Probing | Mesh links, Mesh security, multi-hop Mesh and wireless environment monitoring |
| Hotspot 2.0 | Supported in Fit AP mode |
| Bonjour Gateway | Forwards mDNS packets across VLANs |
| Authentication | 802.1X, MAC, Portal, guest/captive portal, MAC-triggered Portal, PSK, Private-PSK/PPSK and social login in Cloud AP mode |
| EAP Methods | EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, EAP-FAST, GTC and EAP-SIM |
| Wireless Security | WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE, AES, TKIP and CCMP |
| Forwarding Security | Packet and MAC filtering, broadcast storm suppression, EAD integration, management frame protection, WIPS and IP Source Guard (IPSG) |
| Layer 2 and Layer 3 | Static/DHCP IP, DHCP server/client/relay, NAT/NAT66/logging, LLDP, STP, IPv4/IPv6 ICMP, ACL, DHCP, TFTP, FTP and DNS |
| Service Assurance | Remote AP, Doctor AP, spectrum analysis, 802.11ax-only access, bandwidth guarantee, port aggregation, broadcast suppression, weak-signal client blocking, roaming optimization, RF tuning and software recovery |
| QoS | WMM, priority marking and mapping, SSID/VLAN-based QoS policies, Layer 2–4 filtering and classification, CAR, per-client and SSID bandwidth management, ATF, CAC, Layer 2–7 application identification, SQA and UCC |
| Power Saving | Green AP, U-APSD and Spatial Multiplexing Power Save |
| Management | Cloud AP web management via HTTP/HTTPS, SNMP v1/v2c/v3, MIB-II, SNMP MIB, SSH v2, Telnet, FTP/TFTP, CLI, Syslog, secure boot and NETCONF |
| IEEE Standards | IEEE 802.11a/b/g/n/ac/AC Wave 2/ax, 802.11d/e/h/i/w/u, 802.11k/v/r, 802.3af/at/bt and 802.15.1 |
| Wi-Fi Certifications | Wi-Fi Alliance Wi-Fi 6, WMM, WPA/WPA2/WPA3 Enterprise and Personal (SAE), Enhanced Open (OWE) |
