H3C WA7220CE Best price in Dubai UAE
Delivers dual-band Wi-Fi 7 connectivity with 2×2 MIMO on 2.4 GHz and 5 GHz, supporting up to 160 MHz channels and a maximum aggregated rate of 5.37 Gbps.
Provides 4× Gigabit Ethernet ports for multi-device wired access and a 10G SFP+ uplink with up to 400 m PoE+ connectivity over hybrid copper-fiber cable.
Features an industrial-grade design with -40°C to +60°C operating temperature, IP52 protection, RS485/RS232 interfaces, DIN-rail or ear mounting, and flexible PoE or local power options.
Supports CloudAP, FitAP, and AnchorAP modes with H3C Cloudnet and AD-Campus for flexible deployment, centralized management, and intelligent O&M.
Enhances wireless performance with intelligent RF management, radio resource optimization, application control, station access control, fast roaming, and Doctor AP fault diagnosis.
Provides robust security through WPA2/WPA3 authentication, WIPS protection, CAPWAP/DTLS encryption, and Secure Boot with a trusted chain of verification.
Reduces operating costs with AI-powered dynamic power saving, while supporting global Wi-Fi 7 regulatory configurations for compliant deployment across different regions.
H3C WA7220CE Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA7220CE – Wi-Fi 7 Dual-Radio High-Performance Access Point Distributor for Africa dsrtech.ae, H3C Dubai
Hardware Specifications
| Weight | 1.15 kg |
| Dimensions (W × D × H) | 128 × 180 × 38 mm |

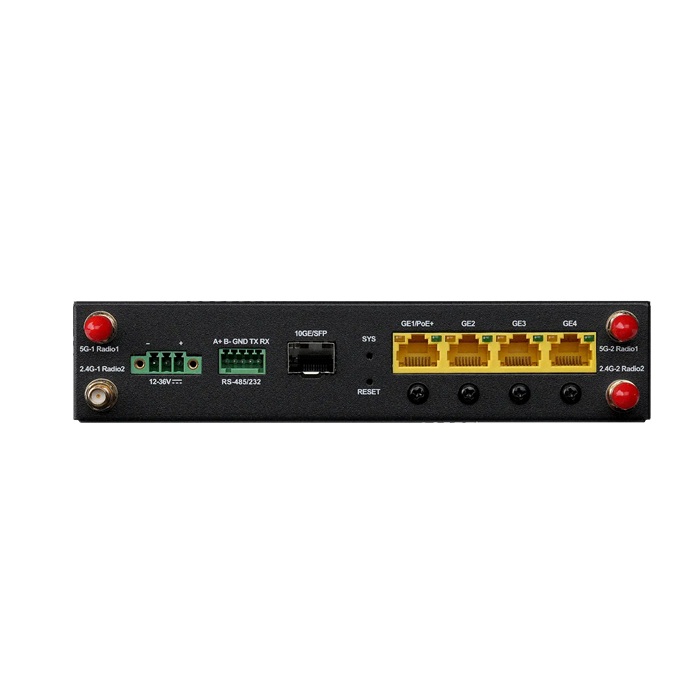

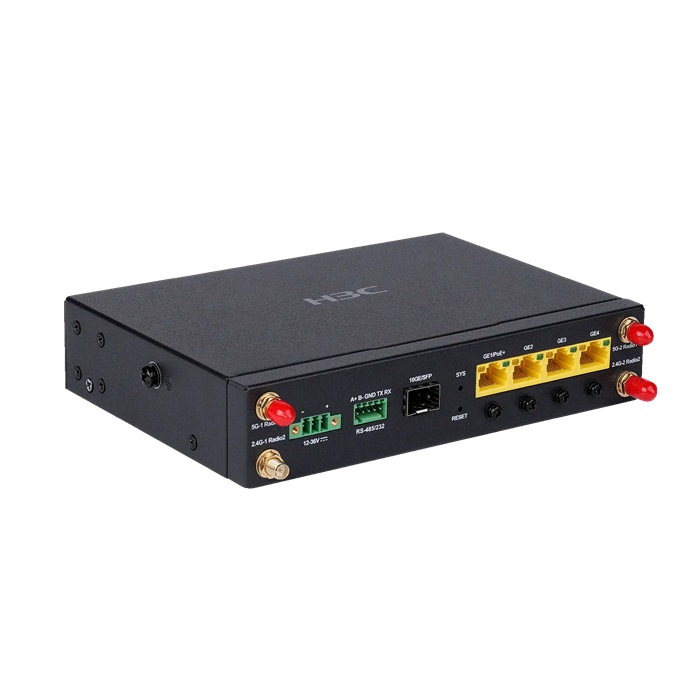

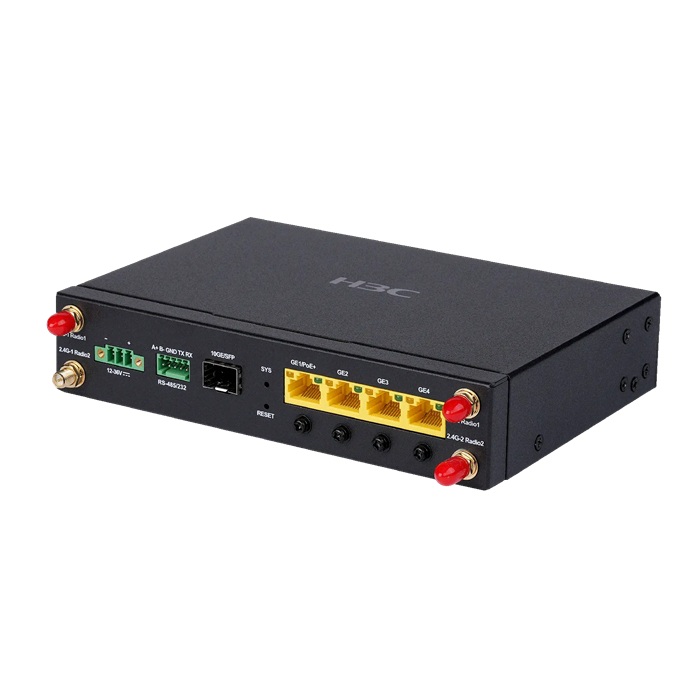

| Interfaces | 4 × 10/100/1000M RJ-45; 1 × 1G/2.5G/5G/10G SFP+ |
| Console Ports | 1 × RS232; 1 × RS485, 5-pin Phoenix connectors |
| PoE Input | 1 × Gigabit RJ-45 PoE input |
| Local Power | Phoenix connector |
| Antenna | External antenna |
| Frequency Bands | 2.4GHz and 5GHz; 6GHz support subject to regulatory domain |
| Maximum Data Rate | 802.11be: up to 23,059 Mbps |
| Modulation | DSSS, OFDM and OFDMA; up to 4096-QAM |
| Maximum Transmit Power | 5GHz: 23dBm; 2.4GHz: 23dBm |
| Power Adjustment | 1dBm increments |
| Reset Button | Factory reset and CloudAP/FitAP mode control |
| Installation | Side/bottom mounting ears or rear DIN rail mounting |
| Operating Temperature | –40°C to +60°C |
| Humidity | 5% to 95%, non-condensing |
| Protection | IP52; 6KV common-mode surge protection |
| Maximum Power Consumption | 16.2W via 802.3at or PoE injector; 11.4W via 802.3af |
| LED Indicators | Yellow, green and blue status indicators |
| MTBF | 3,482,178 hours at 25°C |
| Safety & Compliance | IEC/EN 62368-1; GB 4943.1; EN IEC 63000:2018 |
| Radio Standards | ETSI EN 300 328, EN 301 893, EN 300 440, EN 303 687, FCC Part 15E |
Software Specifications
| Product Type | Indoor dual-radio Wi-Fi 7 AP |
| AP Modes | Fit AP, Cloud AP and Anchor AC |
| Wireless Controllers | H3C WX2800X, WX3800X and WX5800X Series |
| Radio Configuration | 5GHz 2×2:2 up to 2.882Gbps; 2.4GHz 2×2:2 up to 0.688Gbps |
| Channel Bandwidth | 5GHz up to 160MHz; 2.4GHz up to 40MHz |
| Maximum Transmission Speed | Up to 3.57Gbps |
| Maximum Clients | 512, with 256 per radio |
| Maximum BSSIDs | 8 per radio |
| Wi-Fi 7 Features | 4096-QAM, MLO, preamble puncturing, Multi-RU, MU-MIMO and OFDMA |
| Wi-Fi 6 Features | TWT, BSS Coloring/Spatial Reuse, MU-MIMO and OFDMA |
| WLAN Features | A-MPDU, A-MSDU, LDPC, LACP, STBC, DFS, TxBF, CCF, MRC and CDD/CSD |
| CAPWAP & Tunnel | CAPWAP, DTLS, IPv4/IPv6, dual tunnels, PPPoE and IPsec |
| Forwarding | Centralized, local and policy forwarding with VLAN binding |
| RF Management | Automatic channel, power and bandwidth adjustment |
| Roaming & Mesh | 802.11k/v/r roaming; secure multi-hop Mesh |
| Load Balancing | Traffic-, user- and frequency-based load balancing |
| Band Steering | Directs Wi-Fi 6E/7 clients toward 6GHz when available |
| Authentication | 802.1X, MAC, Portal, PSK, PPSK, EAP and Cloud social login |
| Wireless Security | WPA2, WPA3, OWE, AES, TKIP, CCMP, WIPS, IPSG and management frame protection |
| Layer 2/3 | DHCP, NAT/NAT66, LLDP, STP, ACL, DNS, FTP and TFTP |
| Multicast | IGMP/MLD Snooping and multicast-to-unicast conversion |
| Wireless Location | RSSI-based location in Fit AP mode |
| Hotspot | Hotspot 2.0 support in Fit AP mode |
| Bonjour Gateway | mDNS forwarding across VLANs |
| QoS | WMM, QoS, ATF, CAC, CAR and user bandwidth management |
| Service Assurance | Remote AP, Doctor AP, spectrum analysis, intelligent bandwidth guarantee, roaming optimization and fast forwarding |
| Power Saving | Green AP, U-APSD and SM Power Save |
| Management | Web GUI, SNMP, CLI, SSH, Telnet, Syslog, FTP/TFTP and Netconf |
| Secure Boot | Trusted boot chain and firmware integrity protection |
| Standards | IEEE 802.11a/b/g/n/ac/ac Wave 2/ax/be; 802.11d/e/h/i/w/u/k/v/r; 802.3af/at/bt; 802.3az; 802.15.1 |
| Wi-Fi Certification | Wi-Fi 7, Wi-Fi 6E, Wi-Fi 6, WMM, WPA, WPA2 and WPA3 |
