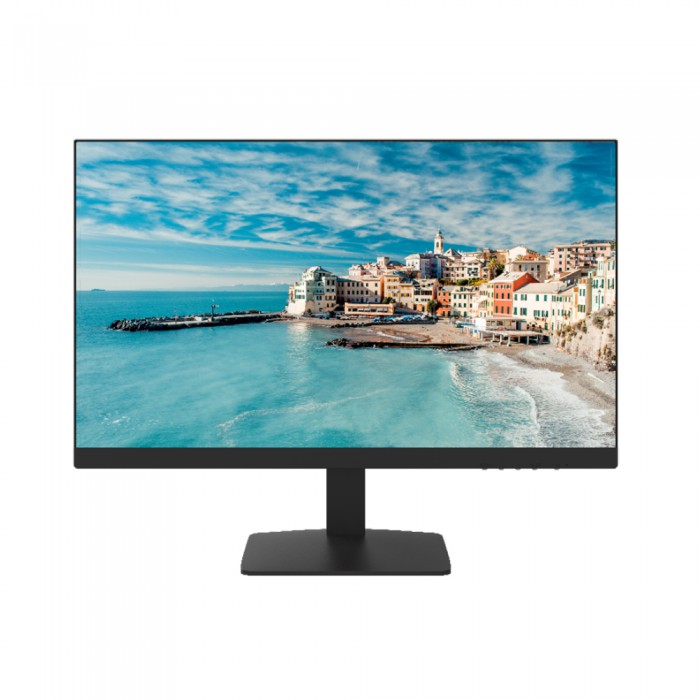

Hikvision 21.5 inch DS-D5022FN-C FHD Borderless Monitor - 317500067
- Ultra-thin device body with ultra-thin border for 3 sides.
- 2 channels of 8 bit/10 bit LVDS HD (1920 × 1080) display.
- 178 ultra-wide view screen.
- 3D noise reduction.
- Low blue light design for eye care.
- Dual interface of HDMI and VGA.
- Support VESA wall mount
Screen Size 21.5 inch
Active Display Area 478.656 (H) mm x 260.28 (V) mm
Resolution 1920 x 1080
Backlight E-LED
Pixel Pitch 0.0831 (H) mm x 0.241 (V) mm
Brightness 250 cd/m
Viewing Angle 178(H)/178(V)
Color Depth 8 bit
Contrast Ratio 3000:1
Response Time 6.5 ms
Refresh Rate 60 Hz
Haze 25%
Reliability 7 x 24 h
Color Gamut 72% NTSC
Interface
Video & Audio Input HDMI 1.4 x 1, VGA x 1
Power
Power Supply 100 to 240 VAC, 50/60 Hz
Power Consumption < 22 W
Standby Consumption < 0.5 W
Working Environment
Working Temperature 0 C to 40 C (32 F to 104 F)
Working Humidity 20% to 90% RH (without condensation)
Storage Temperature –20 C to 60 C (–4 F to 140 F)
Storage Humidity 10% to 90% RH (without condensation)
General
Casing Material Plastic
VESA 75 mm x 75mm，4-M6 x 6 screw holes
Bezel Width Top: 1.88 mm, bottom: 19 mm, left: 1.88 mm, right: 1.88 mm
Product Dimensions (W x H x D) With base: 492.356 (W) mm x 390.11 (H) mm x 200.20 (D) mm (19.38'' x15.36'' x 7.88'')
Without base: 492.356 (W) mm x 289.680 (H) mm x 43.88 (D) mm (19.38'' x 11.40'' x 1.73'')
Package Dimensions (W x H x D) 647 (W) mm x 111 (H) mm x 406 (D) mm (25.49 '' x 4.37 '' x 15.99 '')
Net Weight 2.6 + 0.5 kg (5.7 + 1.1 lb.)
Gross Weight 4.0 + 0.5 kg (8.8 + 1.1 lb.)
Packing List Monitor x1, AC power cable x 1, base bracket x 1, user manual x 1, quick start guide x 1, HDMI cable x 1
Remarks The base is included by default.
The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information.
