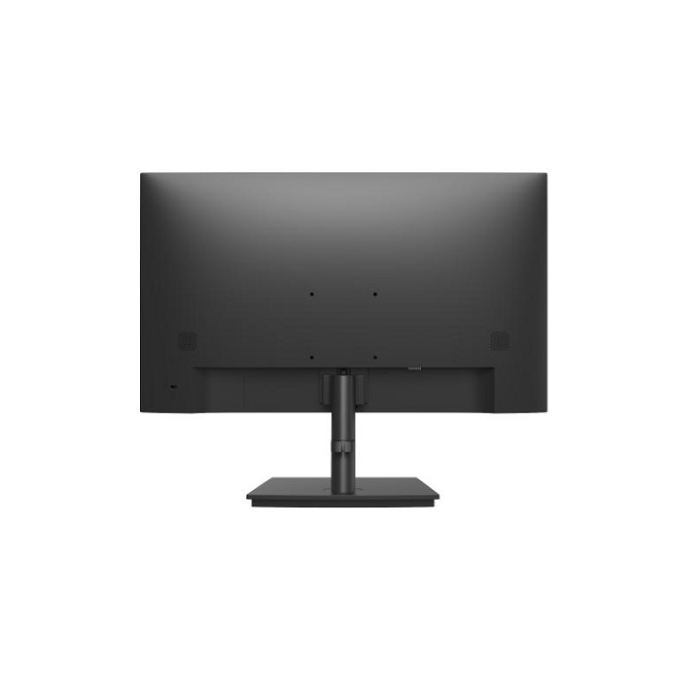

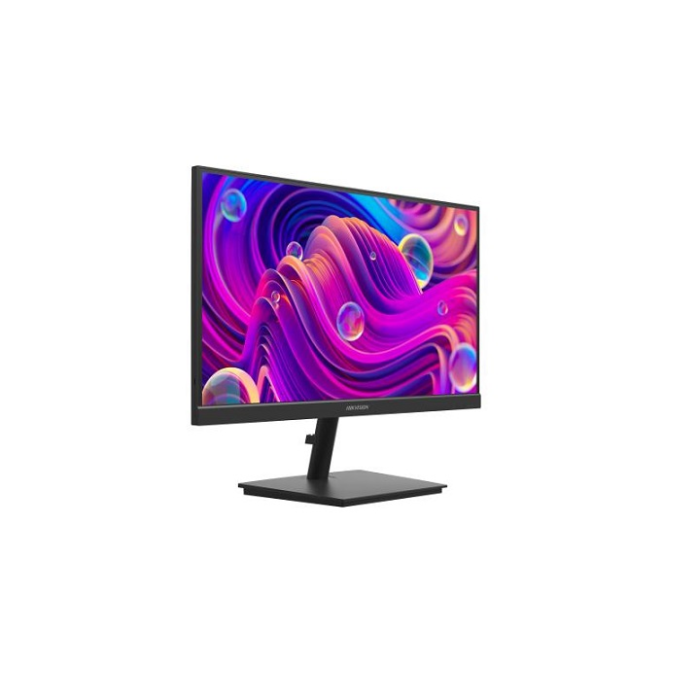

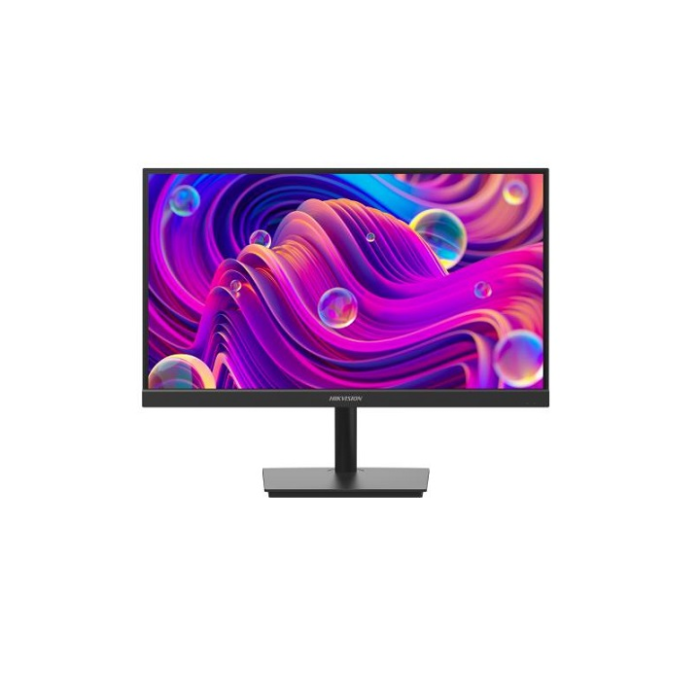

Hikvision 21.5 inch DS-D5022F2-1P2 FHD IPS 100Hz Monitor
- 100 Hz refresh rate, more fluid and life-like video
- IPS technology for wide, 178° ultra-wide view screen.
- Ultra-thin device body with ultra-thin border for 3 sides.
- 8 bit LVDS FHD (1920 × 1080) display.
- 3D noise reduction.
- Low blue light design for eye care.
- Dual interface of HDMI and VGA.
- Support VESA wall mount.
Display
Screen Size 21.45 inch
Active Display Area 478.656 (H) mm x 260.280 (V) mm
Resolution 1920 x 1080
Backlight E-LED
Pixel Pitch 0.241 (H) mm x 0.241 (V) mm
Brightness 250 cd/m
Viewing Angle 178 (H)/178 (V)
Color Depth 8 bit, 16.7 M
Contrast Ratio 1000:1
Response Time 6.5 ms
Refresh Rate Max. 100 Hz, Typ. 60 Hz
Haze Haze 25%, 3H
Reliability 7 x 16 H
Color Gamut 72% NTSC
Interface
Video & Audio Input HDMI 1.4 x 1, VGA x 1
Video & Audio Output Audio Out
Power
Power Supply DC 12V, 2.0A
Power Consumption < 24 W
Standby Consumption < 0.5 W
Working Environment
Working Temperature 0 C to 40 C (32 F to 104 F)
Working Humidity 20% RH to 90% RH (Non-Condensing)
Storage Temperature -20 C to 60 C (-4 F to 140 F)
Storage Humidity 10% RH to 90% RH (Non-Condensing)
General
Casing Material Plastic
VESA 75 mm x 75 mm (4 - M4 x 6 mm)
Bezel Width 2.38 mm (top/left/right), 21.55 mm (bottom)
Product Dimensions (W x H x D) With base: 493.26 (W) mm x 393.45 (H) mm x 185.74 (D) mm (19.42'' x 15.49'' x 7.31'')
Without base: 493.26 (W) mm x 290.13 (H) mm x 42.35 (D) mm (19.42'' x 11.42'' x 1.67'')
Package Dimensions (W x H x D) 599 (W) mm x 393 (H) mm x 109 (D) mm (23.58'' x 15.47'' x 4.29'')
Net Weight 2.0 ± 0.5 kg (4.41 ± 1.10 lb.)
Gross Weight 3.2 ± 0.5 kg (7.05 ± 1.10 lb.)
Packing List Monitor x 1, Base component x 1, Power adapter (12 V, 2.0 A) x 1, HDMI cable (1.5 m) x 1, User manual x 1, Multilingual
manual x 1
Remarks The base is included by default.
The product appearance and parameters in this specification may vary from your actual device. Please consult our local sales staff for further information
