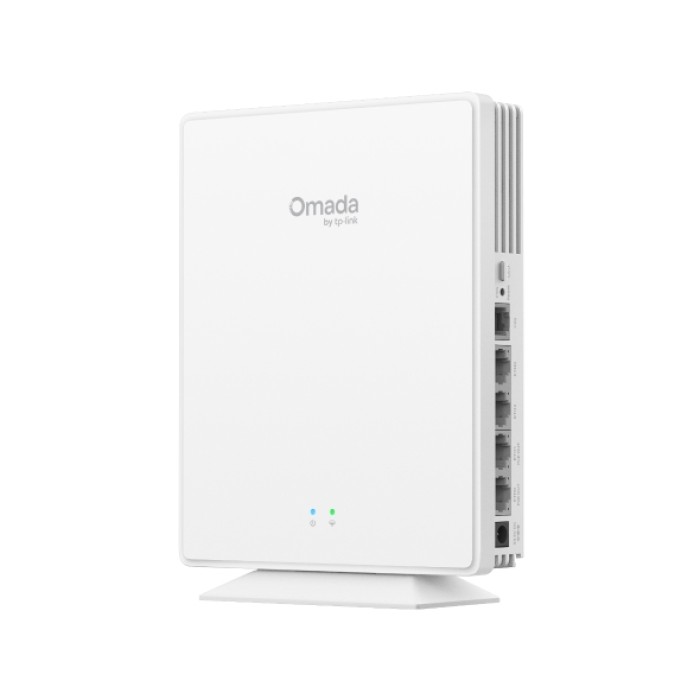

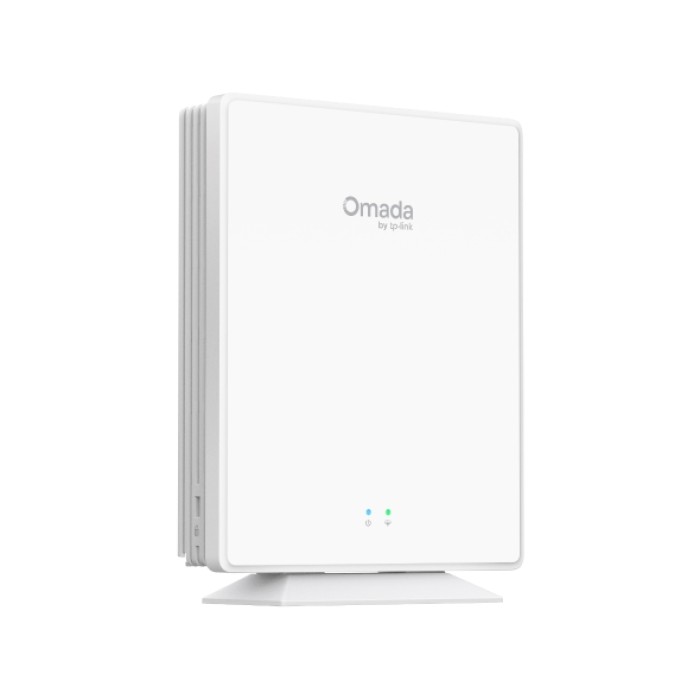

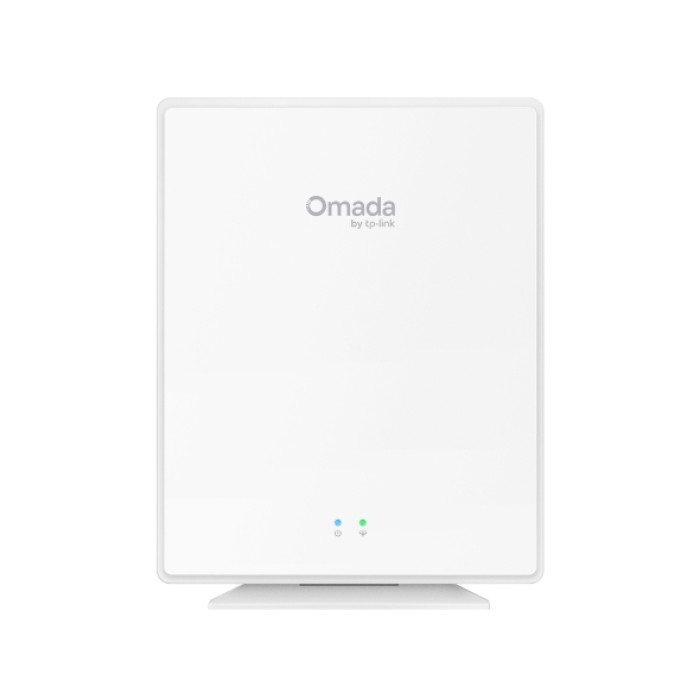

Omada by Tplink EAP650GP-Desktop Omada AX3000 Wi-Fi 6 Desktop GPON Access Point
Seamless 3.0 Gbps Wi-Fi 6 Speeds: 2402 Mbps on 5 GHz & 574 Mbps on 2.4 GHz
Multiple Ports for More Devices: 1x GPON port & 4x GbE ports (two support PoE-out)
One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
Easy Use: One-Click Pairing and Automatic Adoption
High Flexibility: Support both desktop and wall-mounting setups
Advanced Fueatures: Unified management for OLT^ and Omada devices, PPSK, multiple portals, Omada mesh, and seamless roaming
| Hardware Features | |
|---|---|

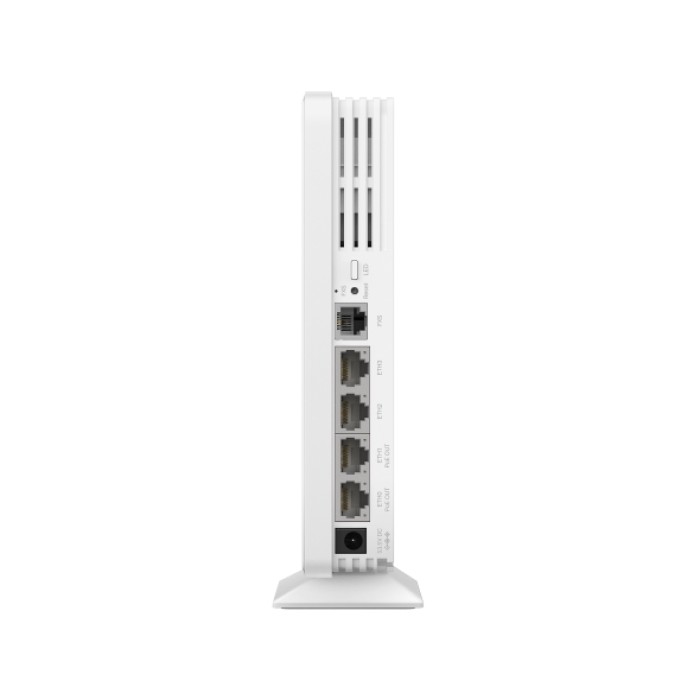

| Interface | 1 x GPON Port 1 x FXS Port 4 x Gigabit Ethernet Ports (2 support 802.3af PoE Out) |
| GPON Interface | Port Type: SC-APC Standards: ITU-984.x, G.988, Class B+ Data Rate: 2.488 Gbps (Downstream), 1.244 Gbps (Upstream) Fiber Type: 9/125 μm Single Mode Max Cable Length: 20 km |
| Button | Reset, LED |
| Power Supply | 53.5V / 0.81A DC |
| Max Power Consumption | 20 W (PoE Out Power Not Included) |
| Dimensions (W x D x H) | 6.9 x 5.5 x 1.3 in (175 x 140 x 33 mm) |
| Antenna | Internal Omni Antenna 2.4 GHz: 2 x 4.5 dBi 5 GHz: 3 x 5 dBi |

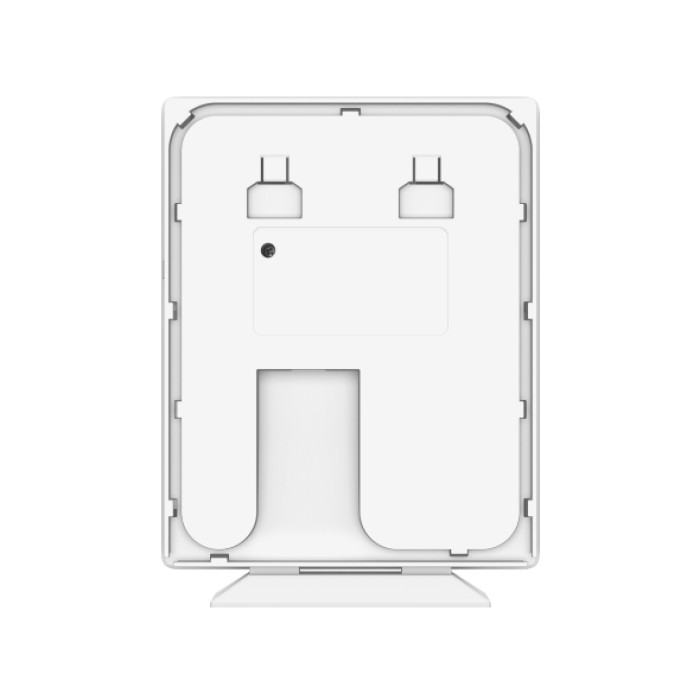

| Mounting | Desktop / Wall Mounting (Kits Included) |
| Wireless Features | |
| Concurrent Clients | 100+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz: 2402 Mbps 2.4 GHz: 574 Mbps |
| Wireless Functions | 16 SSIDs (8 per band), SSID Broadcast Control, Wireless Radio Control, Guest Network, Automatic Channel Assignment, Transmit Power Control, QoS (WMM), Seamless Roaming, Mesh, Beamforming, 2x2 MU-MIMO (2.4G & 5G), UL/DL OFDMA, Client-based Rate Limit, Band Steering, Load Balance, Airtime Fairness, RADIUS Accounting, MAC Authentication, Reboot Schedule, Wireless Schedule & Statistics, Static IP / Dynamic IP |
| Wireless Security | Captive Portal, Access Control, MAC Filtering (Up to 4000), Client Isolation, VLAN, Rogue AP Detection, 802.1X, WPA/WPA2/WPA3 Personal & Enterprise |
| Transmission Power | CE (EIRP): <20 dBm (2.4 GHz) <23 dBm (5 GHz Band 1 & 2) <29 dBm (5 GHz Band 3) FCC: <26 dBm (2.4 GHz) <27 dBm (5 GHz) |
| Management Features | |
| Omada App | Yes |
| Restore & Backup | Yes |
| NTP | Yes |
| Centralized Management | Omada Hardware Controller Omada Software Controller Omada Central (Cloud-Based) Omada App |
| Cloud Access | Yes (Requires Omada Controller) |
| Email Alerts | Yes |
| LED Control | On / Off |
| SNMP | v1, v2c, v3 |
| System Logging | System Log (Local / Remote Syslog) |
| Management Access | SSH, Web-based Management |
| Zero-Touch Provisioning | Yes |
| Others | |
| Certification | CE, FCC, RoHS |
| Package Content | EAP650GP-Desktop Desktop / Wall Mounting Kit Installation Guide |
| Environment | Operating Temp: 0–40 C (32–104 F) Storage Temp: -40–70 C (-40–158 F) Operating Humidity: 10–90% RH Storage Humidity: 5–90% RH |
