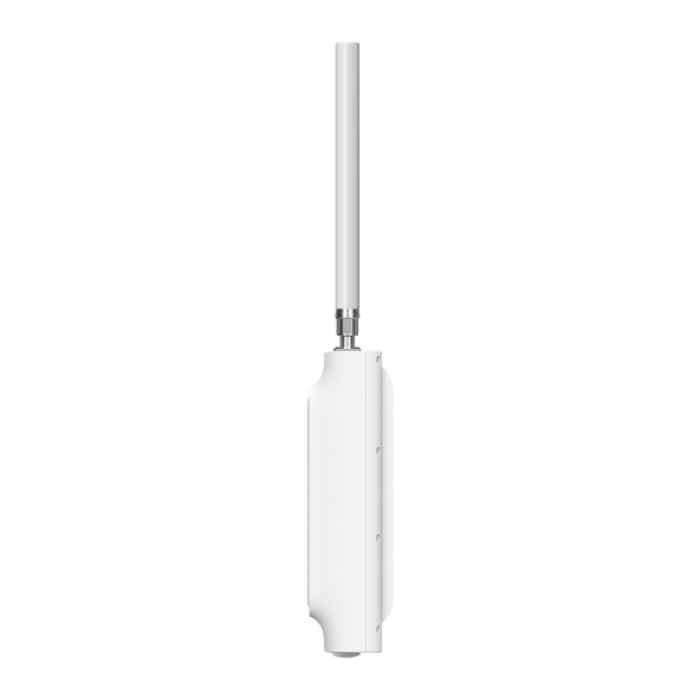

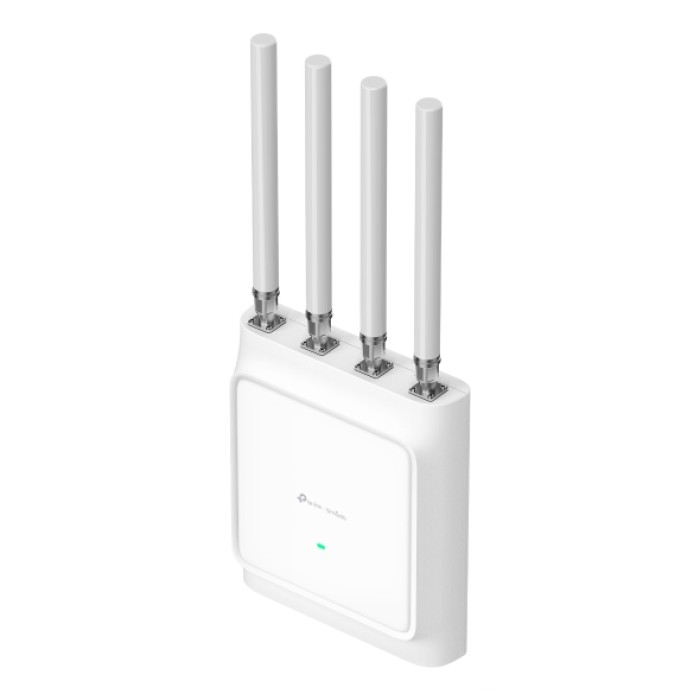

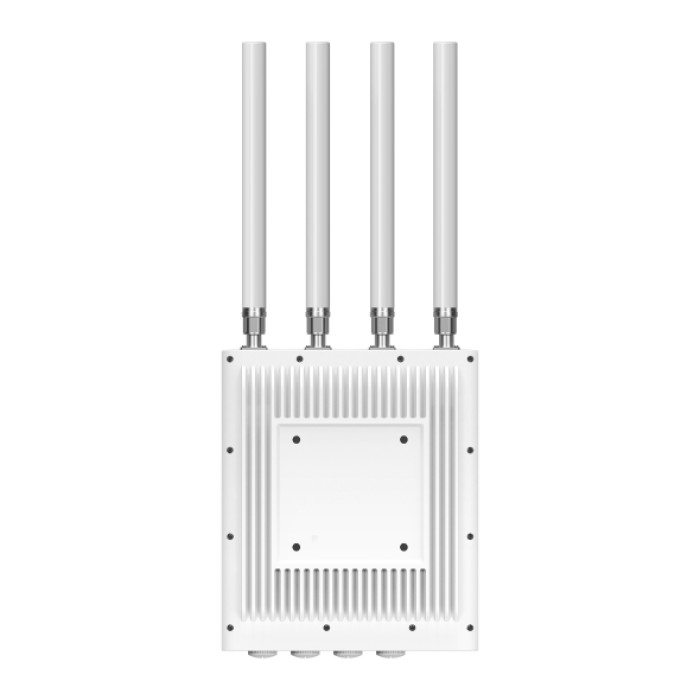

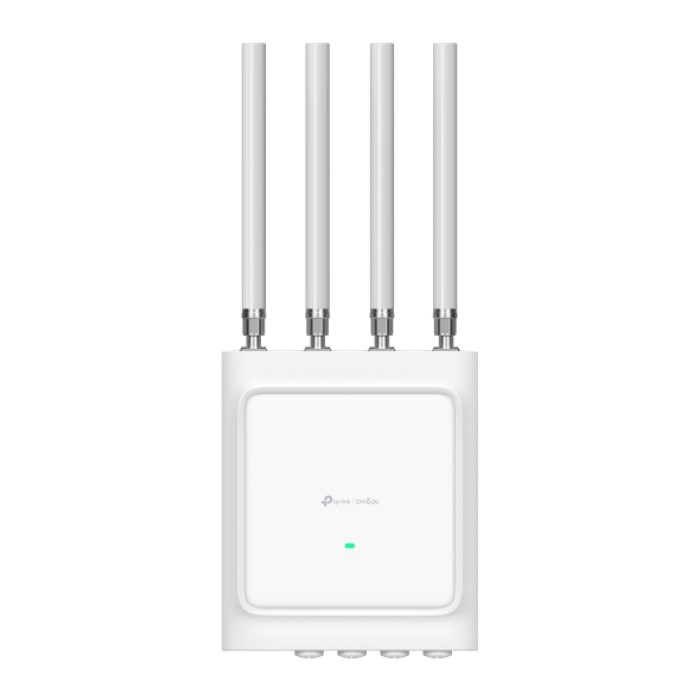

Omada by Tplink EAP668-Outdoor HD AX3600 Indoor/Outdoor WiFi 6 Access Point
- High-Density Connectivity: Supports up to 1,024 devices.
- Ideal for Outdoor Environments: IP68-rated weatherproof enclosure, 6 kV lightning protection, and a reliable operating range of -40 C to +70 C.
- High-gain Detachable Antennas: 4x External N-Type Omni Antennas, 6 dBi Dual-Band (Antennas Included).
- Ultra-Fast 3.6 Gbps Wi-Fi 6 Speeds: 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz.
- Multiple Ports for Flexible Network Solutions: 1x 10G SFP+ slot, 1x 2.5G PoE-In Port, and 1X Gigabit PoE-Out port.
- PoE+/PoE++ Powered and PoE+ Out: Supports 802.3at/bt PoE input and 802.3at PoE output.
- Advanced Features: Omada Mesh, Seamless Roaming, Bluetooth, and Centralized Cloud Management.
| Hardware Features | |
|---|---|

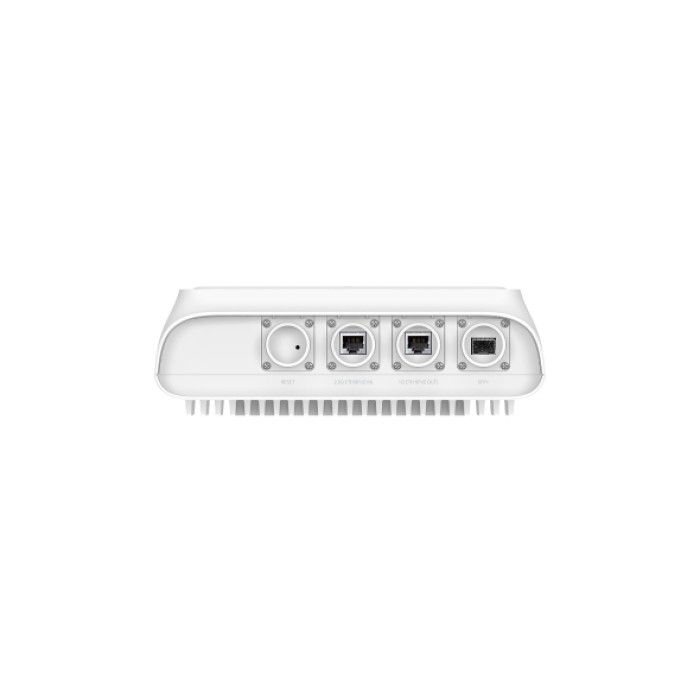

| Interface | 1x 2.5G Ethernet Port + 1x Gigabit Ethernet Port + 1x 10G SFP+ |
| Button | Reset |
| Power Supply | 802.3at/bt PoE |
| Max. Power Consumption | 802.3bt: • EU: 20.2W (bt type3: af PSE out; bt type4: at PSE out) • US: 25.4W (bt type3: af PSE out; bt type4: at PSE out) 802.3at: • EU: 20.2W (PSE disabled) • US: 25.4W (PSE disabled) Note: PoE out power not included. The PoE-out feature requires 802.3bt input. |
| Dimensions (W x D x H) | 240 x 80 x 312 mm (9.5 x 3.2 x 12.3 in) |
| Antenna | 4x× External Dual-Band Omni Antennas: • 2.4 GHz: 6.0 dBi • 5 GHz: 6.0 dBi |
| Bluetooth | Yes |
| Weatherproof Enclosure | IP68 |
| Mounting | • Wall/pole mounting (kits included), supporting + 45 horizontal adjustment • Optional: - APM-110: vertical + 90, horizontal + 45 - APM-100: vertical + 45, horizontal + 45 |
| Wireless Features | |
| Concurrent Clients | 1,000+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | • 2.4 GHz: up to 1148 Mbps • 5 GHz: up to 2402 Mbps |
| Wireless Functions | • 1024-QAM, UL/DL OFDMA, 4x4 MU-MIMO • Mesh§, Seamless Roaming (802.11k/v/r) • Wireless Radio/SSID Enable-Disable • Guest Network, Automatic Channel Assignment • Transmit Power Control (dBm adjustable) • Load Balance, Band Steering, Beamforming • Airtime Fairness, Wireless Statistics • Wireless/Reboot Scheduling • RADIUS Accounting, MAC Authentication • Static/Dynamic IP • Up to 16 SSIDs (8 per band) |
| Wireless Security | • VLAN, Captive Portal Authentication • Access Control, Rogue AP Detection • Wireless Client Isolation • MAC Filtering (up to 4,000 entries) • WPA/WPA2/WPA3 - Personal & Enterprise |
| Transmission Power | CE: • < 20 dBm (2.4 GHz, EIRP) • < 23 dBm (5 GHz Band1 & Band2, EIRP) • < 30 dBm (5 GHz Band3, EIRP) FCC: • < 29 dBm (2.4 GHz) • < 28 dBm (5 GHz Band1 & Band4) • < 23 dBm (5 GHz Band2 & Band3) |
| Management Features | |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware Update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes (via Omada Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| Others | |
| Certification | CE, FCC, RoHS |
| Package Contents | • EAP668-Outdoor HD • 4x External Dual-Band Omni Antennas • Installation Guide • Mounting Kit • Waterproof Kit |
| Operating Environment | • Temperature: -40C to 7C (-40F to 158F) • Humidity: 10%–90% RH (non-condensing) |
| Storage Environment | • Temperature: -40C to 70C (-40F to 158F) • Humidity: 10%–90% RH (non-condensing) |
