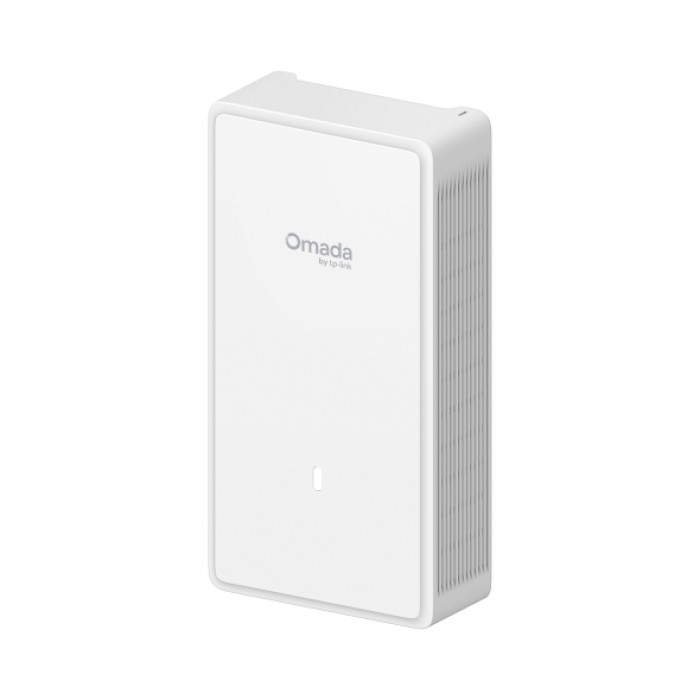

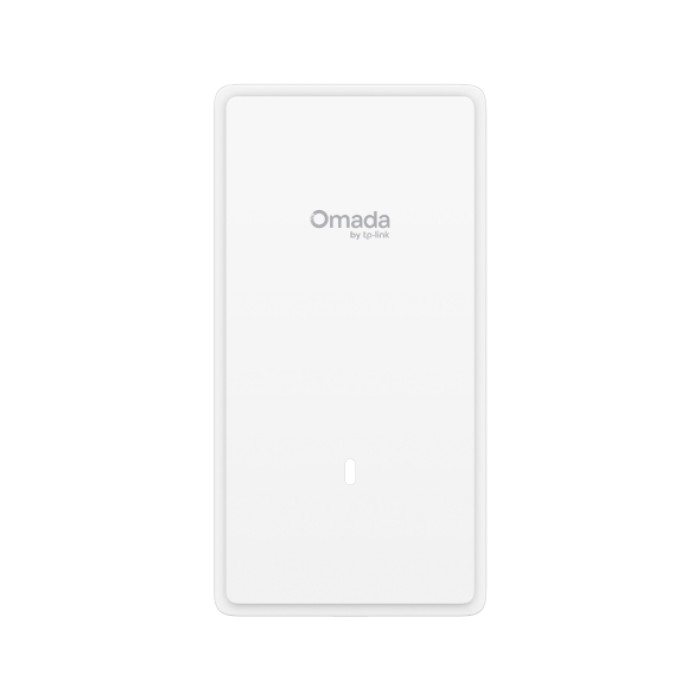

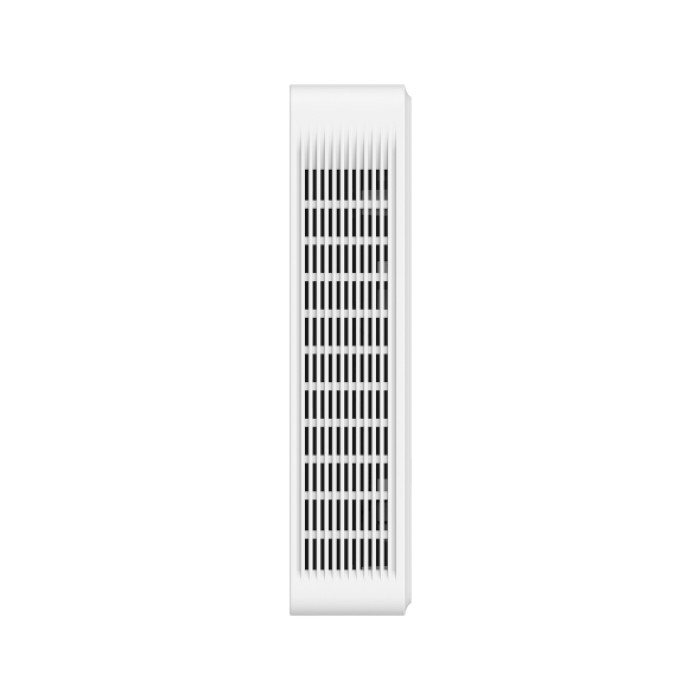

Omada by Tplink EAP775-Wall BE9300 Wall Plate Wi-Fi 7 Access Point
6-Stream Tri-Band Wi-Fi 7: 5765 Mbps on 6 GHz, 2882 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.
Flexible and Aesthetic Integration: Versatile mounting design with a paintable cover included for flexible integration.

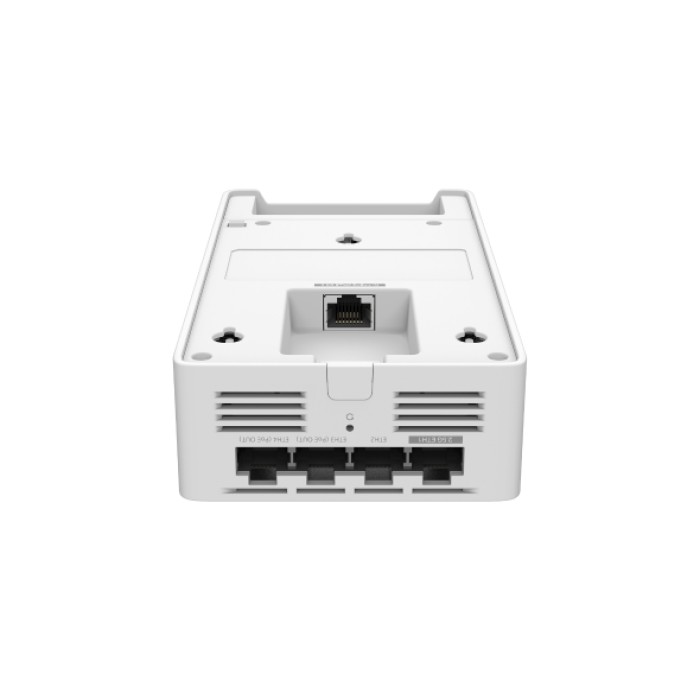

Multiple Ports with PoE Flexibility: 2x 2.5G Ports (1x PoE+/PoE++ In) + 3x Gigabit Ports (2x PoE Out or 1x PoE+ Out)
Low Latency and Interference: Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.
Easy Setup, Easy to Use: Works with Omada SDN for one-click setup.
Advanced Features: Supports centralized cloud management, mesh, and seamless roaming.
Complete In-Room Wi-Fi with More Connections: Supports 380+ concurrent connections and covers up to 1050 ft (100 m) for reliable and extensive wireless connectivity.
| Hardware Features | |
|---|---|
| Interface | Uplink: 1 x 2.5G Ethernet Port Downlink: 1 x 2.5G Ethernet Port + 3 x Gigabit Ethernet Ports (Two Gigabit ports offer flexible PoE Out: dual PoE or single PoE+ output; requires 802.3bt input) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3at / 802.3bt PoE |
| PoE Out | Two Gigabit ports support flexible PoE Out (dual PoE or single PoE+) Requires 802.3bt input |
| Max Power Consumption | 43.35 W (with 25 W PoE Out) |
| Dimensions (W x D x H) | 6.8 x 3.6 x 1.6 in (172.9 x 91.2 x 41.3 mm) |
| Antenna | 6 x Internal Antennas 2.4 GHz: 2 x 5 dBi 5 GHz: 2 x 5.5 dBi 6 GHz: 2 x 5.5 dBi |
| Bluetooth | Version 5.2 |
| Mounting | Wall Mounting (Kits included) |
| Wireless Features | |
| Coverage | 1050 ft (100 m) |
| Concurrent Clients | 380+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz, 5 GHz, 6 GHz |
| Signal Rate | 6 GHz: Up to 5765 Mbps 5 GHz: Up to 2882 Mbps 2.4 GHz: Up to 688 Mbps |
| Wireless Functions | MLO‡, 4K-QAM, Multi-RUs, 320 MHz Bandwidth Up to 24 SSIDs (8 per band) Enable/Disable Wireless Radio, Automatic Channel Assignment Transmit Power Control (dBm), QoS (WMM) Seamless Roaming, Beamforming Rate Limit (SSID/Client-based), Load Balance Airtime Fairness, Band Steering Reboot Schedule, Wireless Schedule RADIUS Accounting, MAC Authentication Wireless Statistics, Static IP / Dynamic IP |
| Wireless Security | Captive Portal Authentication Access Control, MAC Address Filtering Wireless Client Isolation, VLAN Rogue AP Detection WPA / WPA2 / WPA3 (Personal & Enterprise) |
| Transmission Power | 2.4 GHz: 6–20 dBm (ERIP) 5 GHz (U-NII-1 / U-NII-2A): 6–23 dBm (ERIP) 5 GHz (U-NII-2C): 6–27.5 dBm (ERIP) 6 GHz: 6–23 dBm (ERIP) |
| Management Features | |
| Omada App | Yes |
| Centralized Management | Omada Hardware Controller Omada Software Controller Omada Cloud-Based Controller |
| Cloud Access | Yes (Requires Omada Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging | Local / Remote Syslog |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes (Requires Omada Cloud-Based Controller) |
| Others | |
| Certification | CE, RoHS |
| Package Contents | EAP775-Wall Installation Guide Mounting Kits |
| System Requirements | Microsoft Windows XP, Vista, 7, 8, 10, 11 Linux |
| Environment | Operating Temperature: 0–40 C (32–104 F) Storage Temperature: -40–70 C (-40–158 F) Operating Humidity: 10–90% RH (non-condensing) Storage Humidity: 5–90% RH (non-condensing) |
