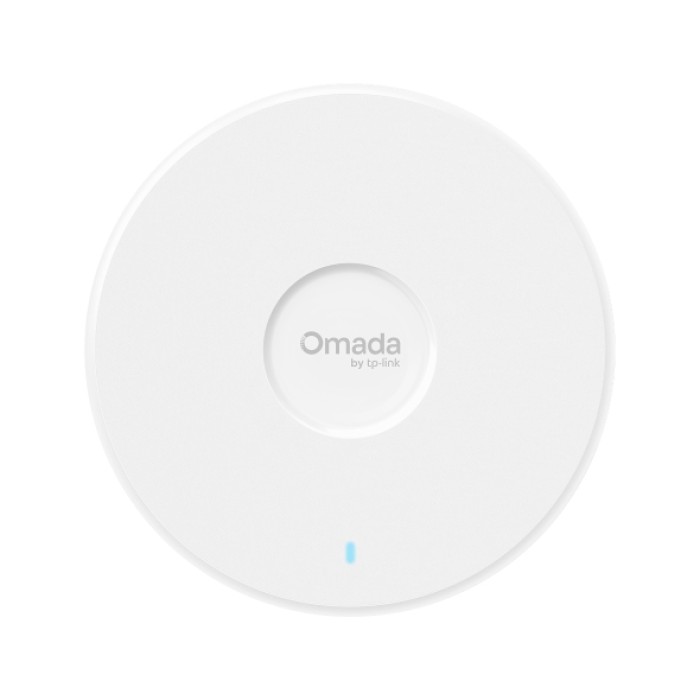

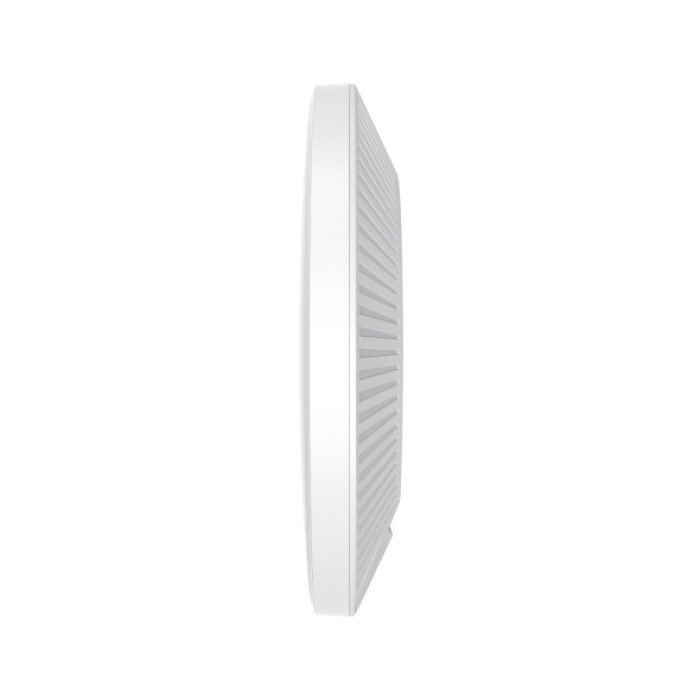

Omada by Tplink EAP787 BE15000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
- Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance.
- Maximized 6 GHz Coverage with AFC: Unlock stronger signals and extended 6 GHz range performance
- Tri-Band 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 8648 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.
- 1x 10G Port: Ensures fast connectivity throughout the network
- Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.
- Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.
- More Capacity and Wider Coverage: Supports 510+ concurrent clients and covers up to 1750 ft (160 m) for reliable and extensive wireless connectivitya
| Hardware Features | |
|---|---|
| Interface | 1 x 10G/2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3bt/at PoE or 12V/2.5A DC |
| Max. Power Consumption | • 29 W (PoE) • 24.5 W (DC) |
| Dimensions (W × D × H) | 220 x 220 x 38.8 mm (8.7 x 8.7 x 1.5 in) |
| Antenna | • 2.4 GHz: 2 x 4.0 dBi • 5 GHz: 2 x 5.0 dBi • 6 GHz: 2 x 5.0 dBi |
| Bluetooth | 1 x 5 dBi internal antenna module Firmware update may be required |

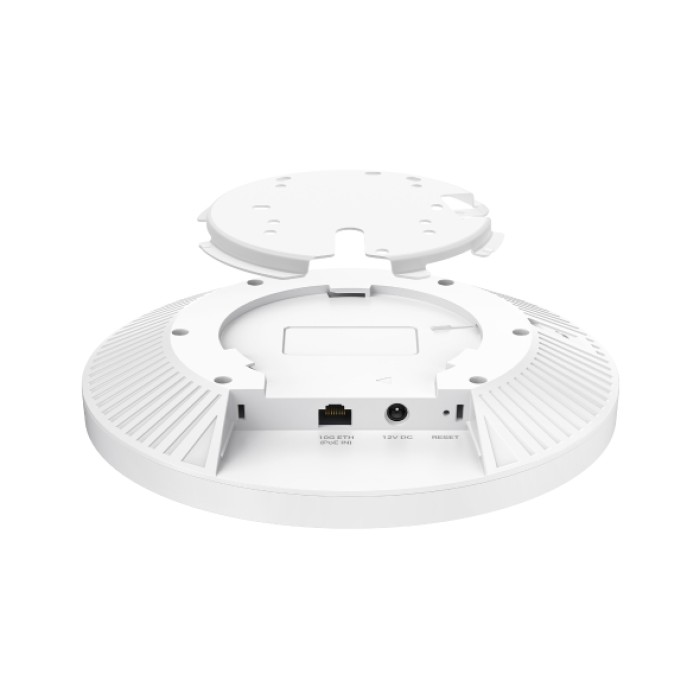

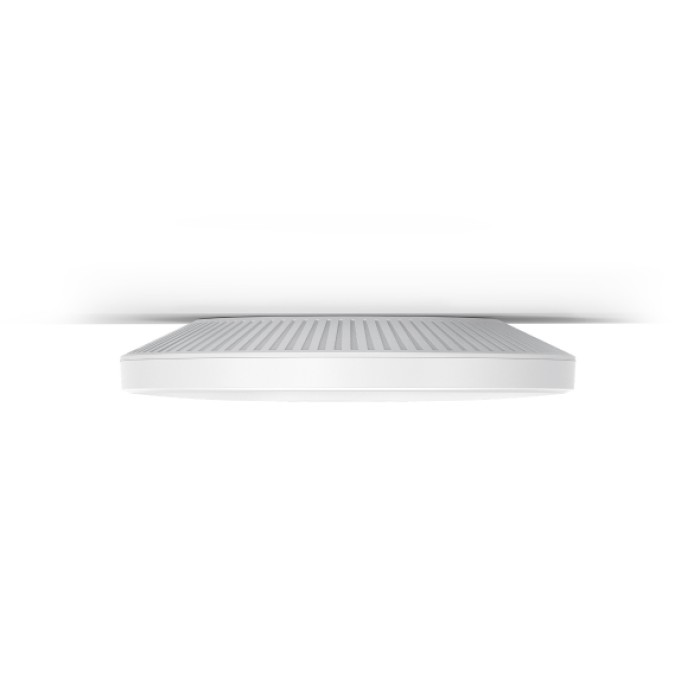

| Mounting | Ceiling / Wall / Junction Box Mounting (Kits Included) |
| Wireless Features | |
| Coverage | 1750 ft (160 m) |
| Concurrent Clients | 510+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz, 5 GHz, 6 GHz |
| Signal Rate | • 2.4 GHz: 688 Mbps • 5 GHz: 8648 Mbps • 6 GHz: 5765 Mbps |
| Wireless Functions | • 320 MHz Bandwidth, MLO, 4K-QAM, Multi-RUs • Seamless Roaming (802.11k/v/r), MU-MIMO, Mesh • BSS Coloring, OFDMA, Load Balance, Band Steering • Beamforming, Airtime Fairness • Multiple SSIDs: 24 (8 per band) • Wireless Schedule, Reboot Schedule, QoS (WMM) • Rate Limit, Static IP/Dynamic IP, RADIUS Accounting, MAC Authentication |
| Wireless Security | • Captive Portal Authentication • Access Control, MAC Filter, Wireless Client Isolation • VLAN, Rogue AP Detection • WPA/WPA2/WPA3 (Personal & Enterprise) |
| Transmission Power | • 2.4 GHz: 4–25 dBm • 5 GHz U-NII-1 & U-NII-3: 7–29 dBm • 5 GHz U-NII-2A: 7–26 dBm • 5 GHz U-NII-2C: 7–24 dBm • 6 GHz: 4–23 dBm |
| Management Features | |
| Omada App | Yes |
| Centralized Management | • Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes (via Omada Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging | Local / Remote Syslog |
| Web-Based Management | Yes |
| Others | |
| Certification | CE, FCC, RoHS, IC |
| Package Contents | • EAP787 • Installation Guide • Ceiling / Wall / Junction Box Mounting Kit Note: Power adapter NOT included |
| Operating Environment | • Temperature: 0C to 40C (32F to 104F) • Humidity: 10%–90% non-condensing |
| Storage Environment | • Temperature: -40C to 70C (-40F to 158F) • Humidity: 5%–90% non-condensing |
