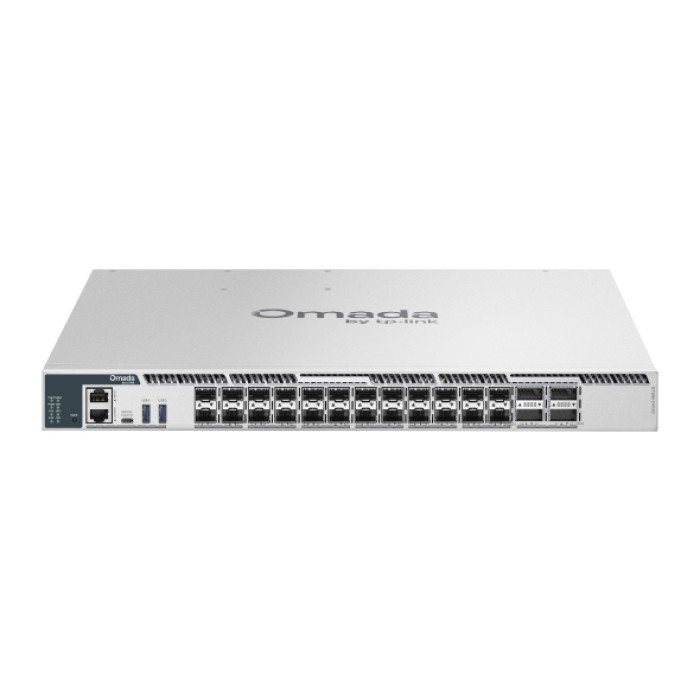

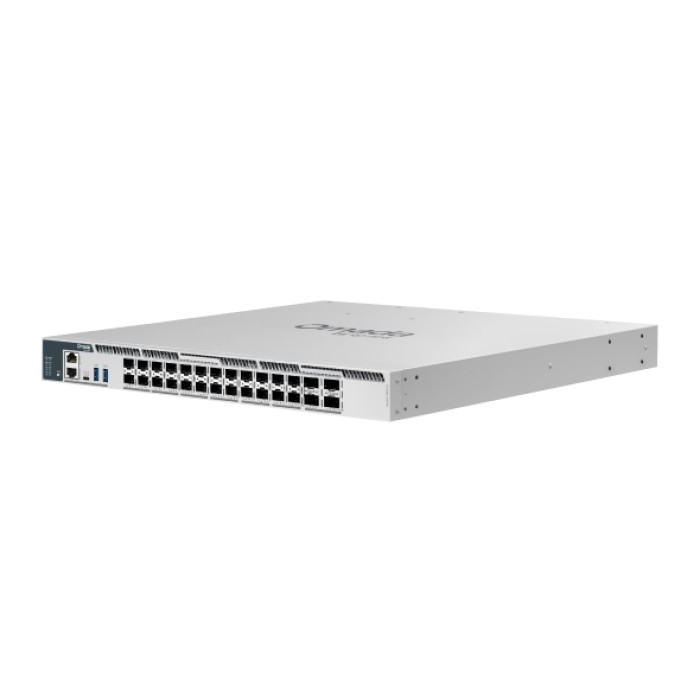

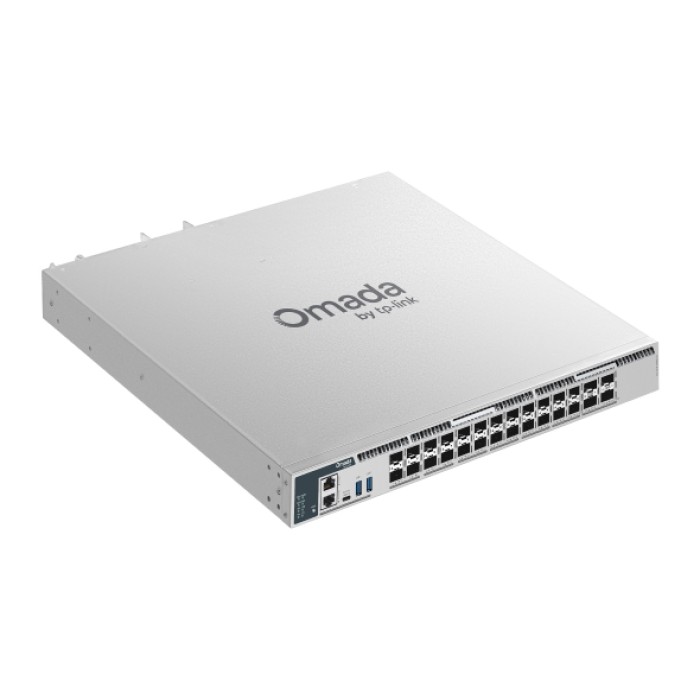

Omada by Tplink S7500-24Y4C Omada Campus 24-Port 25G Stackable L3 Managed Aggregation/Core Switch with 4× 100G Slots
- 24x 25 Gbps SFP28 slots and 4× 100 Gbps QSFP28 slots
- Physical stacking for built-in redundancy and performance
- M-LAG improves link reliability from the card level to the device level
- L3 Features: OSPF, BGP, IS-IS, VRF, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, PBR
- Security Strategies: Secure Boot, RADSEC, IMPB, SFTP, 802.1X, Port Security
- Highly available with two field-replaceable power supplies,* VRRP, ERPS, BFD
- Easy O&M: NETCONF, Configuration Rollback, Hot Patching, RSPAN, and PTPv2
- Centralized cloud management via the web or the Omada app
| HARDWARE FEATURES | |
|---|---|
| Interface | 24x 1/10/25G SFP28 Slots 4x 40/100G QSFP28 Slots 2x USB 3.0 Ports 1x RJ45 Console Port 1x USB Type-C Console Port 1x RJ45 Management Port |

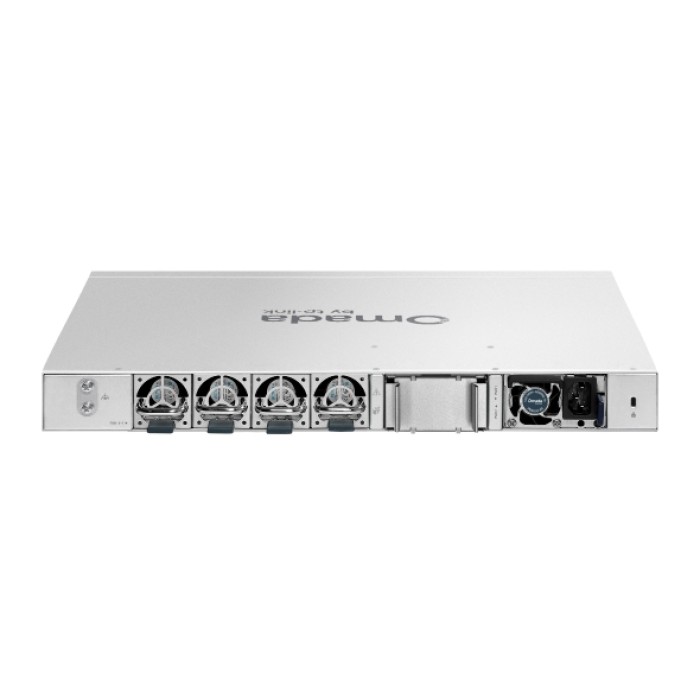

| Fan Quantity | Four Field-replaceable and Hot-swappable Fans |
| Power Supply | Two Field-replaceable and Hot-swappable Power Supply Modules (100–240 VAC, 50/60 Hz) |
| Dimensions | 17.3 x 15.0 x 1.7 in (440 x 380 x 44 mm) |
| Mounting | Rackmountable |
| Max Power Consumption | 137.63W (220 V/50 Hz) |
| Heat Dissipation | 469.6 BTU/hr (220 V/50 Hz) |
| PERFORMANCE | |
| Packet Buffer Memory | 64 Mbit |
| Jumbo Frame | 9 KB |
| Stacking | Up to 12 (standalone), 4 (controller mode), stacking bandwidth up to 800 Gbps |
| Switching Capacity | 2 Tbps |
| Packet Forwarding Rate | 810 Mpps |
| MAC Address Table | Max 128K entries |
| SOFTWARE FEATURES | |
| M-LAG | Domain configuration, DAD, peer-link-port LAG |
| PTP | IEEE 1588v2, IEEE 802.1AS |
| Quality of Service | 8 queues, SP/WRR scheduling, DSCP, WRED, voice VLAN |
| L3 Features | OSPF, BGP, IS-IS, VRF, ECMP, PIM, IGMP, DHCP Relay, VRRP |
| L2 Features | LACP, STP, RSTP, MSTP, ERPS, LLDP, IGMP Snooping, Port Security |
| VLAN | 4K VLANs, QinQ, Private VLAN, MAC VLAN |
| Security | 802.1X, ACL, IP-MAC binding, DHCP snooping, DoS protection |
| MANAGEMENT FEATURES | |
| Controller | Omada / Omada Pro Cloud, Hardware & Software Controller |
| Protocols | SNMPv1/v2c/v3, RMON, CLI, Web GUI |
| Zero-Touch Provisioning | Supported via Omada Cloud Controller |
| Monitoring | CPU monitoring, system logs, alerts, SDM template |
| ENVIRONMENT | |
| Operating Temperature | -5°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 10–90% RH (operating), 5–90% RH (storage) |
