Qnap TL-R1620Sep-RP 16-Bay SAS-3 / SATA III JBOD Expansion Enclosure
For Select QNAP NAS & Server Devices

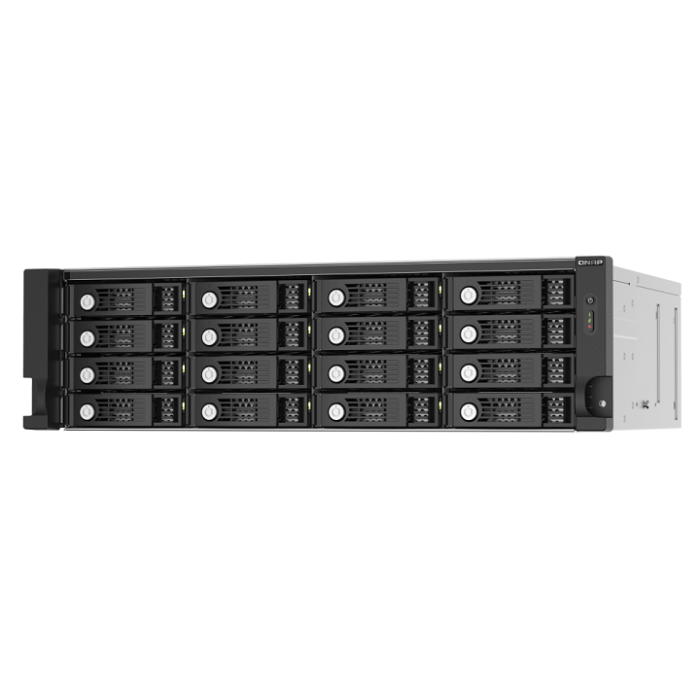

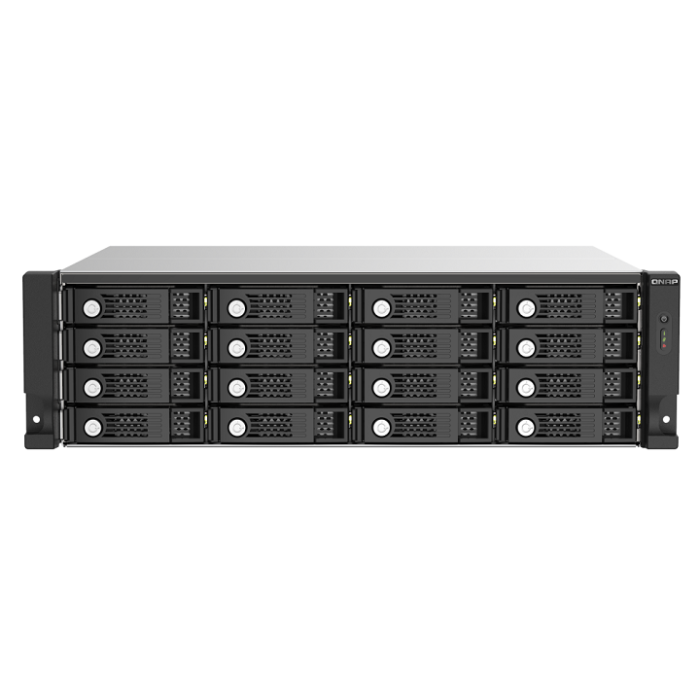

16 x 2.5"/3.5" SAS-3/SATA III Drive Bays
4 x Mini-SAS HD (SFF-8644) Wide Ports
Supports JBOD RAID Configuration
3 RU Rackmount Design
Link Aggregation Support
Daisy Chaining & Multipath Routing
SAS DataBolt Technology
Redundant 550W Power Supply
| 16-Bay SAS JBOD Expansion Unit Specifications | |
|---|---|
| Form Factor | 3U Short Depth Rackmount |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70 °C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing |
| Standard Warranty | 5 years |
| Storage | |
| Drive Bays | 16 x 3.5-inch (HDD not included) |
| Drive Compatibility |
3.5-inch SAS 12Gb/s, 6Gb/s HDD 3.5-inch SATA 6Gb/s, 3Gb/s HDD 2.5-inch SATA 6Gb/s, 3Gb/s SSD Note: Only one disk type per RAID group; mixing HDD and SSD is not supported. |
| Hot-Swap Support | Yes |
| JBOD Connection Interface | SAS (4 x 12Gb/s SAS 3.0 wide ports, Mini-SAS HD SFF-8644) |
| RAID / Management Support |
Managed via QNAP QTS / QuTS hero OS Supports disk S.M.A.R.T., RAID expansion, locate disks/enclosures, smart fan control, in-band firmware updates, multi-path, JBOD cascading, and NAS storage pool expansion |
| Physical & Power | |
| Dimensions (HxWxD) | 131.3 × 482.2 × 425.3 mm (excludes ear hook & PSU protrusion) |
| Net Weight | 13.14 kg |
| Gross Weight | 16.8 kg |
| Power Supply | 2 x 550W, 100-240V |
| Power Consumption (Operating) | 207.13 W (fully populated drives) |
| Fans | 3 x 80mm, 12VDC |
| Indicators & Buttons | |
| Front Panel LEDs | HDD 1-16, Power, Status, Link, Fan error |

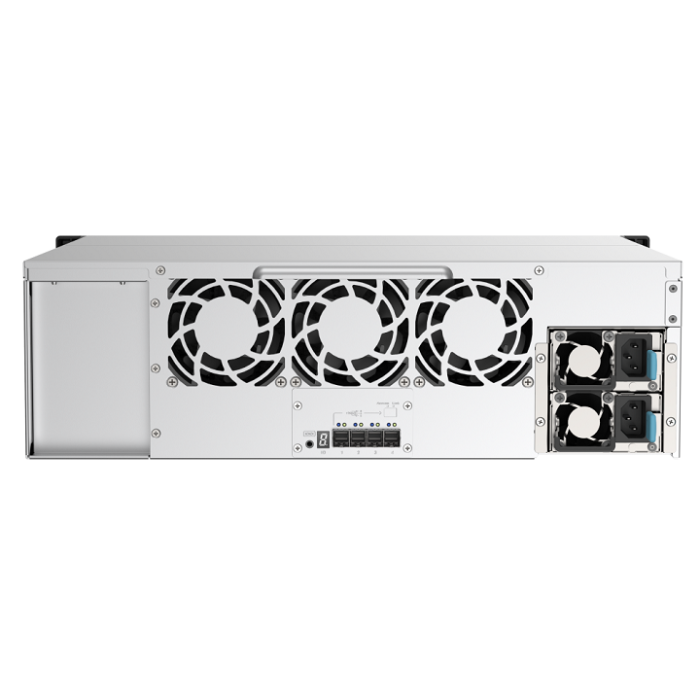

| Rear Panel LEDs | SAS connector, Enclosure ID |
| Buttons | Power |
| System Warning | Buzzer |
| Software / OS Support | |
| Operating System | QNAP QTS / QuTS hero |
| Additional Features | Windows support, multi-path, JBOD cascading, expanding NAS storage pools |
