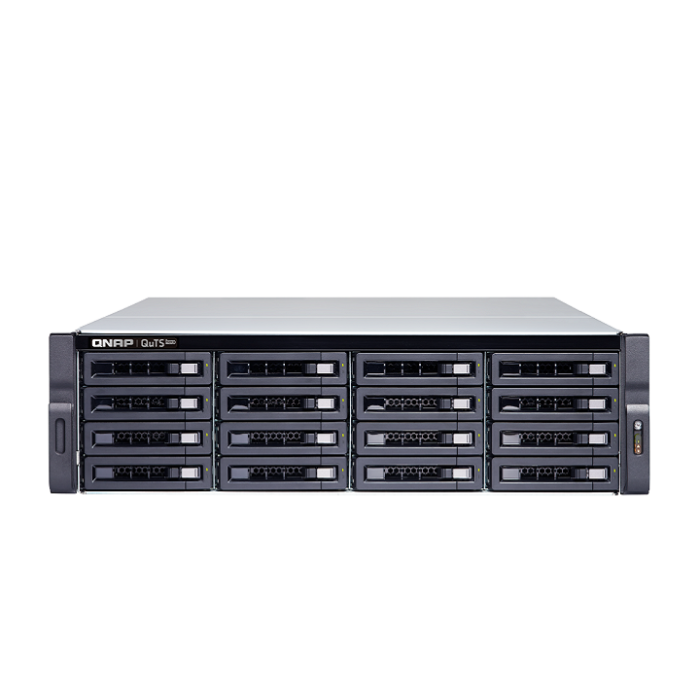

Qnap TS-h1683XU-RP-E2136-128G Best price in Dubai UAE
The QuTS hero NAS TS-h1683XU-RP is powered by an Intel® Xeon® E processor with up to 128 GB DDR4 Error Correcting Code (ECC) memory to deliver server-grade performance with dependable reliability. Running the ZFS-based QuTS hero operating system, the TS-h1683XU-RP supports near-limitless snapshots, real-time SnapSync, block-level inline data deduplication, and inline data compression. The TS-h1683XU-RP helps your business achieve reliable service-level agreement performance, whether as a mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup and recovery applications.
1:DDR4 ECC memory detects and corrects single-bit memory errors, demonstrating high reliability for crucial applications.
2:Pre-installed with a dual-port 10GbE RJ45 adapter and a dual-port 10GbE SFP+ SmartNIC for bandwidth-demanding applications.
3:PCIe expandability allows for installing 10/25/40 adapters, QM2 cards, or Fibre Channel cards to increase application performance.
4:SSD cache acceleration improves random read/write performance to meet IOPS-demanding applications.
5:Supports virtualization storage for VMware®, Microsoft® Hyper-V®, Windows Server® 2019, and can natively host virtual machines and containers.
6:Built-in App Center includes feature-rich apps for expanding potential NAS applications.
Qnap TS-h1683XU-RP-E2136-128G Buy with Best Price from authorized supplier for Qnapproducts in UAE Qnap TS-h1683XU-RP-E2136-128G 6-core / 12-thread processor 16 Bay NAS Distributor for Africa dsrtech.ae, Qnap Dubai
CPU Intel® Xeon® E E-2136 6-core / 12-thread processor
CPU Architecture 64-bit x86
Floating Point Unit yes
Encryption Engine (AES-NI)
System Memory 128 GB UDIMM DDR4 ECC (4 x 32GB)
Maximum Memory 128 GB (4 x 32 GB)
Memory Slot 4 x UDIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 16 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Gigabit Ethernet Port (RJ45) 4
10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC port, 2 x 10GBase-T port
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 4
Slot 1: PCIe Gen 2 x4 (PCH)
Slot 2: PCIe Gen 3 x8 (CPU)
Slot 3: PCIe Gen 3 x4 (CPU)
Slot 4: PCIe Gen 3 x4 (CPU)
Slot 2 and slot 4 are preinstalled with 10GbE network adapters.
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-C USB 3.2 Gen 2 10Gbps
4 x Type-A USB 3.2 Gen 2 10Gbps
Form Factor 3U Rackmount
LED Indicators HDD 1-16, Status, LAN, storage expansion port status
Buttons Power, Reset
Dimensions (HxWxD) 130 × 481 × 573.5 mm
Excludes ear hook and the protruding part of the Power Supply Unit.
Weight (Net) 13.76 kg
Weight (Gross) 21.79 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 500W(x2), 100-240V
Power Consumption: Operating Mode, Typical 149 W
Tested with WD10EFRX fully populated. Yes
Fan System fan: 3 x 80mm, 12VDC
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 10000
