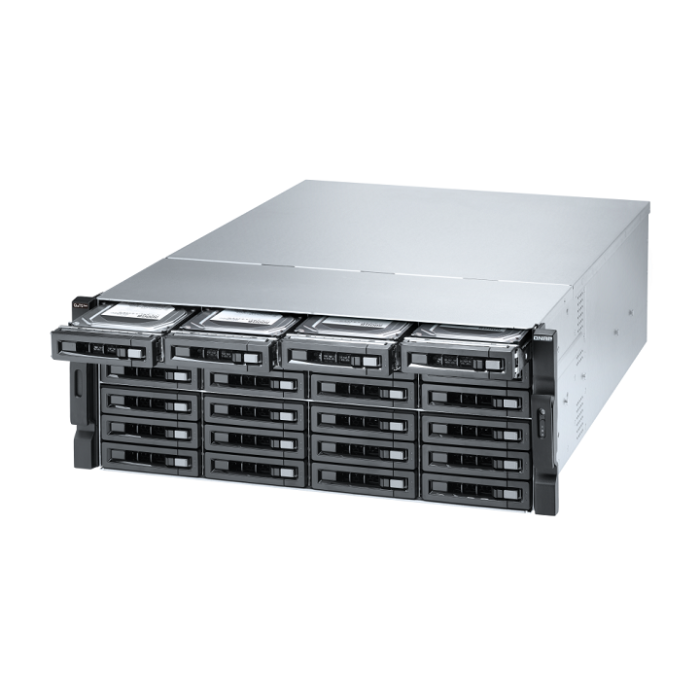

Qnap TS-h2483XU-RP-E2136-128G Best price in Dubai UAE
The QuTS hero NAS TS-h2483XU-RP is powered by an Intel® Xeon® E processor with up to 128 GB DDR4 Error Correcting Code (ECC) memory to deliver server-grade performance with dependable reliability. Running the ZFS-based QuTS hero operating system, the TS-h2483XU-RP supports near-limitless snapshots, real-time SnapSync, block-level inline data deduplication, and inline data compression. The TS-h2483XU-RP helps your business achieve reliable service-level agreement performance, whether as a mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup and recovery applications.
ECC memory
DDR4 ECC memory detects and corrects single-bit memory errors, demonstrating high reliability for crucial applications.
NBASE-T Ethernet
Pre-installed with a dual-port 10GbE RJ45 adapter and a dual-port 10GbE SFP+ SmartNIC for bandwidth-demanding applications.
Flexible PCIe expansion
PCIe expandability allows for installing 10/25/40 adapters, QM2 cards, or Fibre Channel cards to increase application performance.
SSD cache acceleration
SSD cache acceleration improves random read/write performance to meet IOPS-demanding applications.
Virtualization applications
Supports virtualization storage for VMware®, Microsoft® Hyper-V®, Windows Server® 2019, and can natively host virtual machines and containers.
On-demand applications
Built-in App Center includes feature-rich apps for expanding potential NAS applications.
Qnap TS-h2483XU-RP-E2136-128G Buy with Best Price from authorized supplier for Qnapproducts in UAE Qnap TS-h2483XU-RP-E2136-128G 6-core / 12-thread processor 24 Bay NAS Distributor for Africa dsrtech.ae, Qnap Dubai
CPU Intel® Xeon® E E-2136/E-2236 6-core / 12-thread processor
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine (AES-NI)
System Memory 128 GB UDIMM DDR4 ECC (4 x 32GB)
Maximum Memory 128 GB (4 x 32 GB)
Memory Slot 4 x UDIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 24 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
SSD Cache Acceleration Support
GPU pass-through
Gigabit Ethernet Port (RJ45) 4
10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC port, 2 x 10GBase-T port
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 5
Slot 1: PCIe Gen 2 x4 (PCH)
Slot 2: PCIe Gen 3 x4 (CPU)
Slot 3: PCIe Gen 2 x4 (PCH)
Slot 4: PCIe Gen 3 x8 (CPU)
Slot 5: PCIe Gen 2 x4 (PCH)
Slot 2 and slot 4 are preinstalled with 10GbE network adapters.
Card dimensions for PCIe slot 1：260 x 131.15 x 28.76 mm / 10.24 x 5.16 x 1.13 inches.
Card dimensions for PCIe slot 2：300 x 131.15 x 18.76 mm / 11.81 x 5.16 x 0.74 inches.
Card dimensions for PCIe slot 3：300 x 131.15 x 28.76 mm / 11.81 x 5.16 x 1.13 inches.
Card dimensions for PCIe slot 4：300 x 131.15 x 18.76 mm / 11.81 x 5.16 x 0.74 inches.
Card dimensions for PCIe slot 5：300 x 131.15 x 18.76 mm / 11.81 x 5.16 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-C USB 3.2 Gen 2 10Gbps
4 x Type-A USB 3.2 Gen 2 10Gbps
Form Factor 4U Rackmount
LED Indicators HDD 1-24, Status, LAN, storage expansion port status
Buttons Power, Reset
Dimensions (HxWxD) 176.15 × 481.04 × 672.02 mm
Excludes ear hook and the protruding part of the Power Supply Unit.
Weight (Net) 20.67 kg
Weight (Gross) 28.56 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 800W(x2), 100-240V
Power Consumption: Operating Mode, Typical 173.4 W
Tested with drives fully populated.
Fan System fan: 3 x 80mm, 12VDC
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 10000
