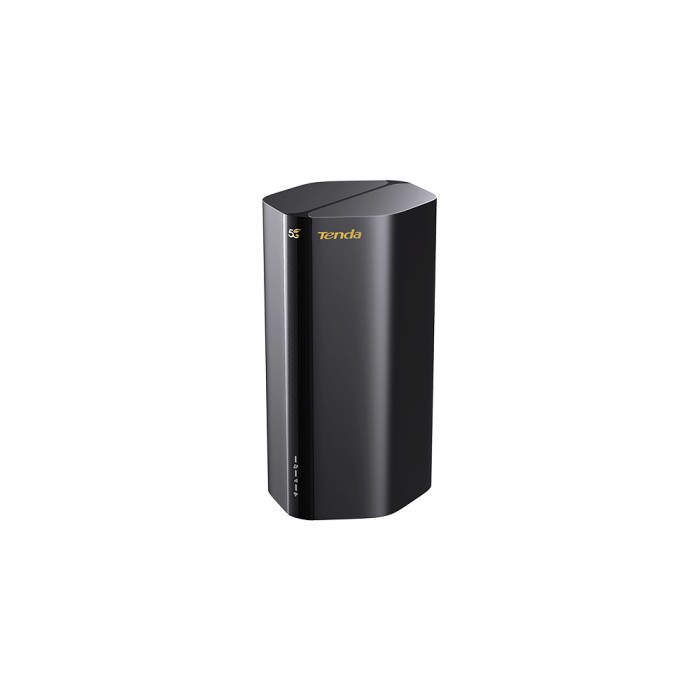

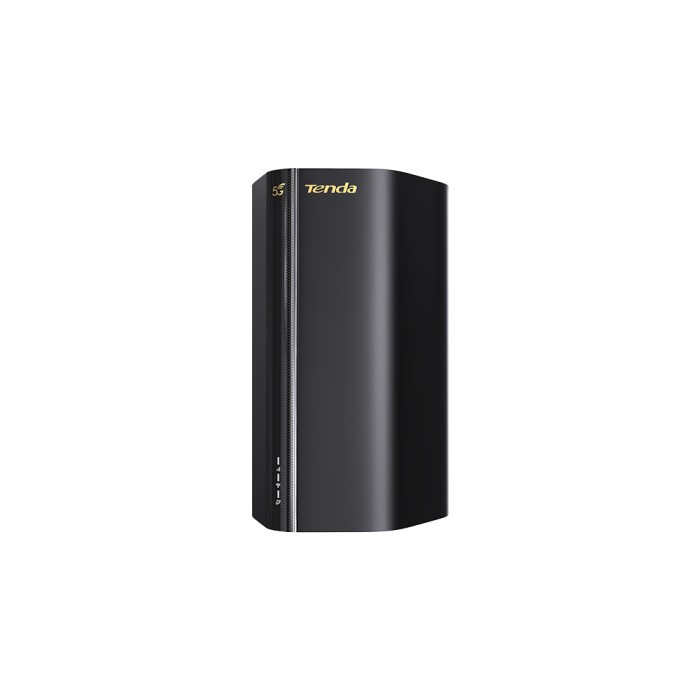

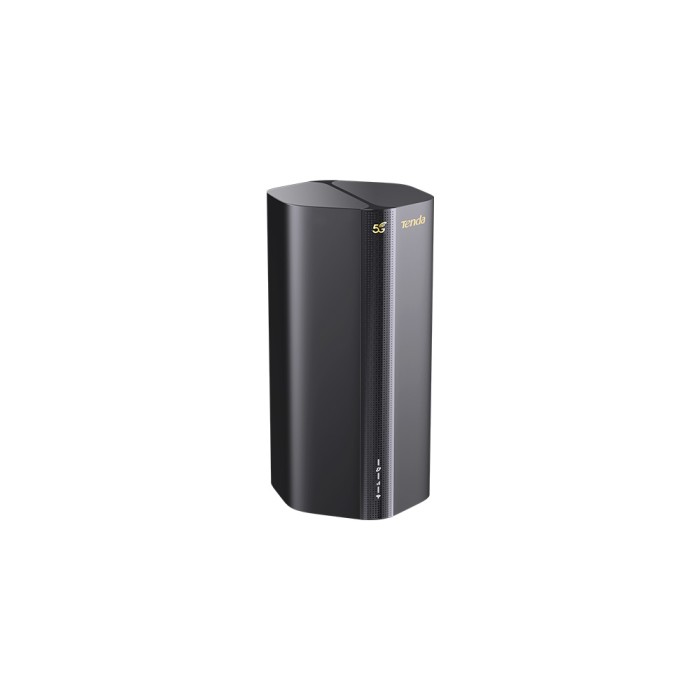

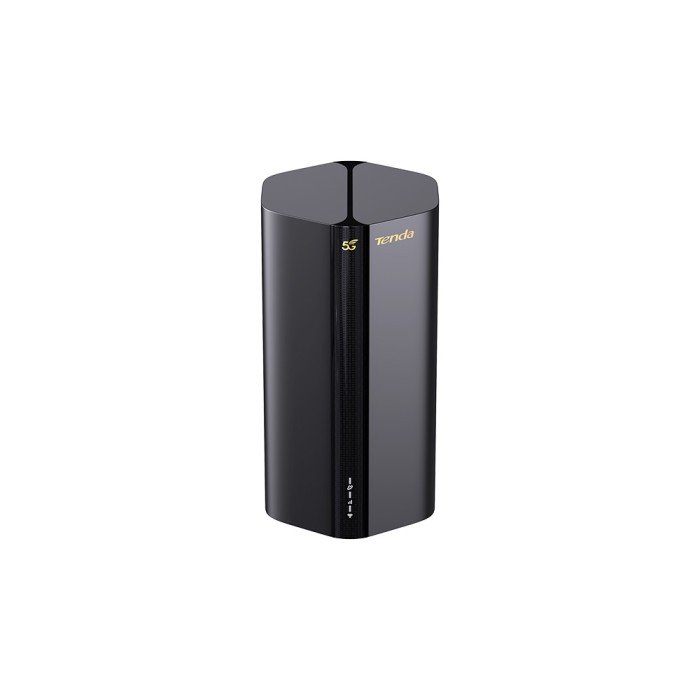

Tenda 5G03 AX1800 Wi-Fi 6 5G NR Router
- Features: MU-MIMO, WAN Failover, Xmesh(WiFi+)
- SIM Slot: Nano(4FF)
- Max No.of Connected Devices: 128
- 1*GE LAN/WAN Port, 1*GE LAN Port
- Wi-Fi Speed:2.4G: 574M; 5G:1201M
- Speed: 4.67G
| 5G NR Router Specifications | |
|---|---|
| Hardware Specifications | |
| 5G/4G/3G Multi-Mode, 5G NR SA/NSA, 4G FDD/TDD LTE, 3G WCDMA | |
| Release 15 | |
| DL: Cat18, UL: Cat19 | |
| Download: 4.67 Gbps, Upload: 1.25 Gbps | |
|
5G NR: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78 FDD-LTE: 1, 3, 5, 7, 8, 20, 28, 32 TD-LTE: 38, 40, 41, 42, 43 WCDMA: 850, 900, 2100 MHz |
|
| 5G NR: 2CC, EN_DC: 5CC | |
| SISO, 2x2, 4x4 | |
| QPSK, 16QAM, 64QAM, 256QAM | |
| Wireless Connectivity | |
| Wi-Fi 6 (802.11ax) with 2x2 MIMO | |
| 2.4GHz: 574 Mbps, 5GHz: 1201 Mbps | |
| 2.4 GHz, 5 GHz | |
| 2.4 GHz: up to 20dBm, 5 GHz: up to 23dBm | |
| WPA3, WPA2, WPA/WPA2, WPA2-PSK, WPA-PSK, WEP | |
| OFDMA, MU-MIMO, Broadcast/Hide SSID, Guest Network, Wi-Fi Schedule, Priority 5GHz | |
| Interfaces & Antennas | |
| 1 × LAN/WAN, 1 × LAN (10/100/1000 Mbps) | |
| 1 × Nano SIM (4FF) | |
| 1 × USB-C | |
| 8 × Internal 5G/4G, 2 × Internal Wi-Fi, 2 × TS-9 Antenna Ports | |
| Power On/Off, RST Hole, MESH/WPS | |
| Internet, 5G/4G Signal, Wi-Fi | |
| Dimensions & Power | |
| 92 × 118.5 × 196 mm | |
| Net: 482 g, Gross: 830 g | |
| Input: AC 100V-240V 50/60Hz, Output: DC 12V ⎓ 2A | |
| Software Specifications | |
| 5G/4G or Wired | |
| Auto-APN, SA/NSA Mode, Auto Dial-Up, 5G Optimization, EN-DC, Roaming, SMS, USSD, Data Limit, PIN Management | |
| EasyMesh, Guest Network, SSID Control, MU-MIMO, OFDMA | |
| Parental Control, DHCP (Client & Server), Virtual Server (UPnP, DMZ, Port Forwarding), DDNS (DynDns, 88ip), VPN (PPTP, L2TP, IPSEC), Firewall, QoS, Local & OTA Firmware Upgrade |
|
| Environmental | |
| 0℃ ~ 40℃ | |
| -30℃ ~ 70℃ | |
| 10% ~ 90% RH (Non-condensing) | |
| 5% ~ 90% RH (Non-condensing) | |
| Package Contents | |
|
1 × 5G NR Router 1 × Ethernet Cable 1 × Power Adapter 1 × User Guide | |
