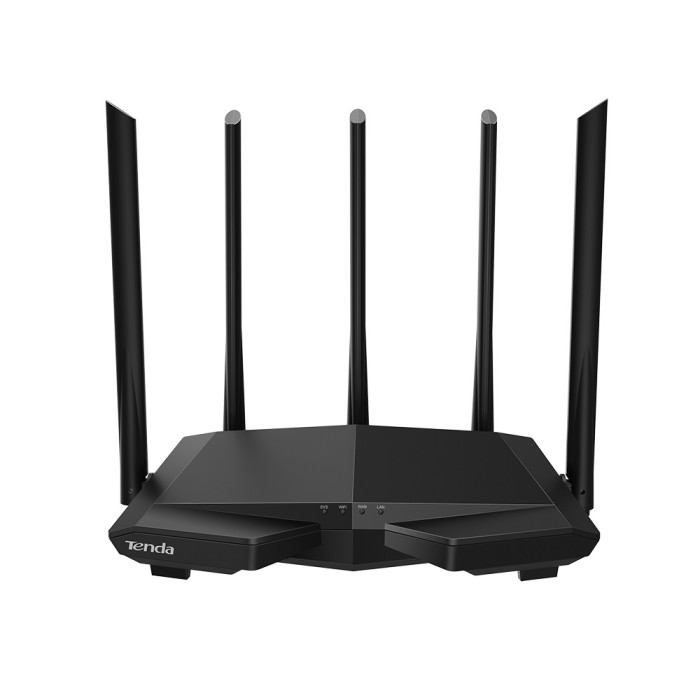

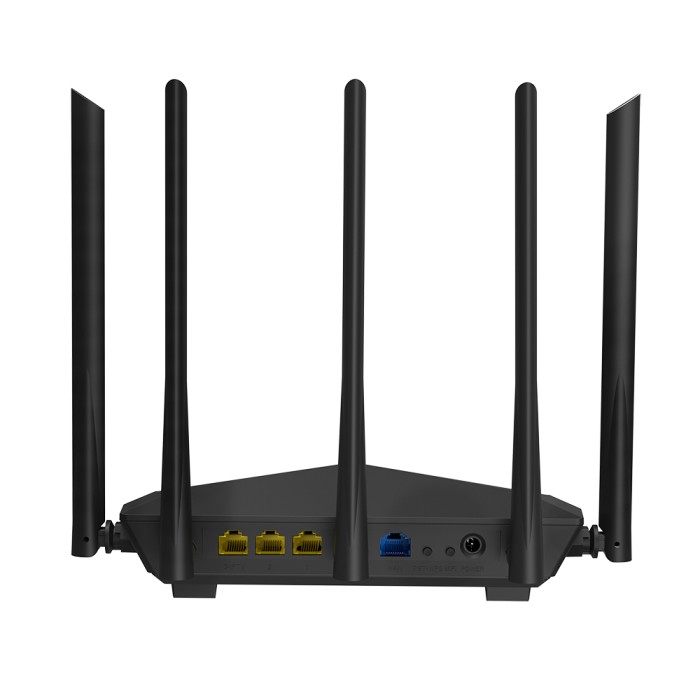

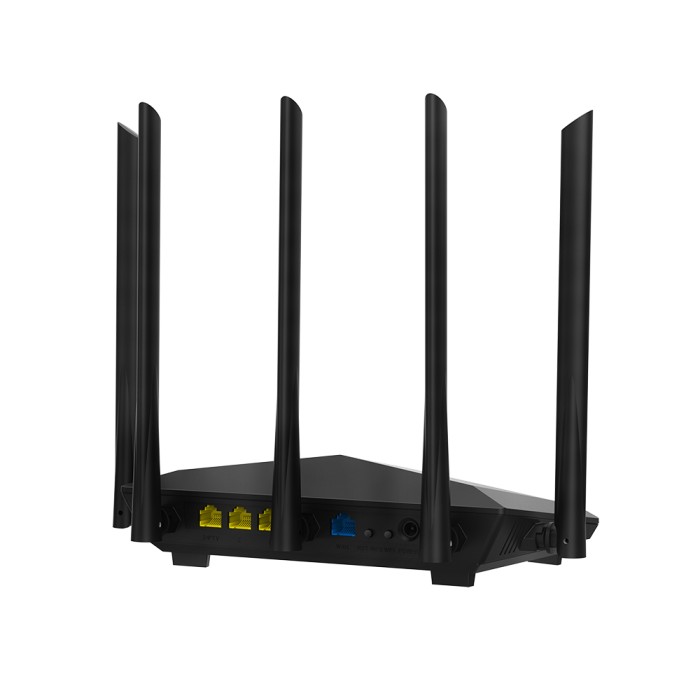

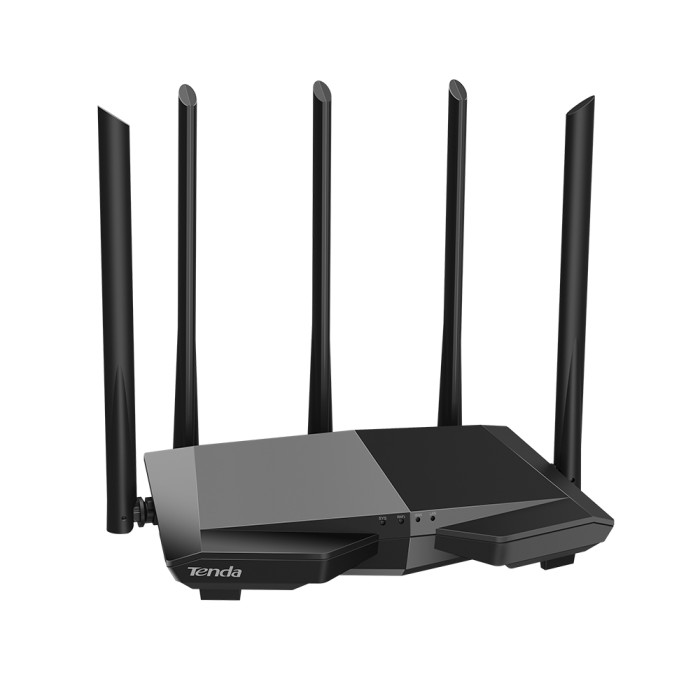

Tenda AC7 AC1200 Smart Dual-Band WiFi Router
AC7 is a robust and stable dual-band WiFi router dedicated for large houses with multiple rooms. It complies with the 5th generation of 802.11ac wave2 standard and boasts a concurrent dual-band throughput up to 1167 Mbps. It can perform lossless data transmission at the 5 GHz frequency band where interference is mild, so as to fully leverage every bit of your bandwidth. With the independent power amplifier, Beamforming+ technology, and 5 external 5dBi antennas, AC7 penetrates one more wall than ordinary routers. Powered by the robust CPU and the latest MU-MIMO technology, AC7 offers you fast and stable internet connection, and allows more clients for connecting. The user-friendly function of PPPoE account migration relives you of configuration when change router, offering you and your family speedy and smart wireless internet experience.
| Hardware | |
|---|---|
| IEEE802.3, IEEE802.3u | |
| 600MHz | |
| 32MB | |
| 1 × 10/100Mbps WAN port 3 × 10/100Mbps LAN ports | |
| 5 × 5dBi external antennas | |
| 1 × Wi-Fi / Reset button | |
| Input: 100-240V ~ 50/60Hz 0.4A Output: DC 9V ⎓ 1A | |
| SYS × 1 | |
| 220 × 141.5 × 49 mm (L × W × H) | |
| Wireles | |
| IEEE 802.11ac/a/n @ 5GHz IEEE 802.11b/g/n @ 2.4GHz | |
| 5GHz: 867Mbps 2.4GHz: 300Mbps | |
|
CE: 2.4G: 2412–2472 MHz (CH1–CH13) 5G: 5150–5250 MHz (CH36–CH64) FCC: 2.4G: 2412–2462 MHz (CH1–CH11) 5G: 5150–5250 MHz (CH36–CH64) 5725–5825 MHz (CH149–CH165) |
|
|
CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz) |
|
| WPA2-PSK, Enable/Disable | |
| Software | |
| PPPoE, Dynamic IP, Static IP PPPoE(Russia), PPTP(Russia), L2TP(Russia) | |
| IPv4 & IPv6 | |
| Router Mode, AP Mode, Universal Repeater Mode (Client+AP, WISP) | |
| Client Filter, URL Filter, Time Limit | |
| DHCP Server, Client List, Static IP Reservation and Allocation | |
| Port Forwarding, DMZ Host, UPnP | |
| ICMP, TCP, UDP Flood Attack Defense Block Ping From WAN | |
| DynDNS, no-ip, oray, 88ip | |
| IPsec pass-through, PPTP pass-through, L2TP pass-through | |
| Special & Basic Features | |
| Guest Network, IPTV, Signal Adjustment | |
|
PPPoE Username/password Clone Smart WiFi Schedule Smart Power Saving Smart LED on/off Tenda App Dual-band in One IPv6 Features Supported Broadband Management MAC Address Clone Backup & Restore Configurations Firmware Upgrade from Local |
|
| Others | |
| Operating: 0℃ ~ 40℃ Storage: -40℃ ~ 70℃ | |
| Operating: 10% ~ 90% RH (non-condensing) Storage: 5% ~ 90% RH (non-condensing) | |
| CE, FCC, RoHS | |
| Wi-Fi Router ×1 RJ45 Ethernet Cable ×1 Power Adapter ×1 Quick Installation Guide ×1 | |
