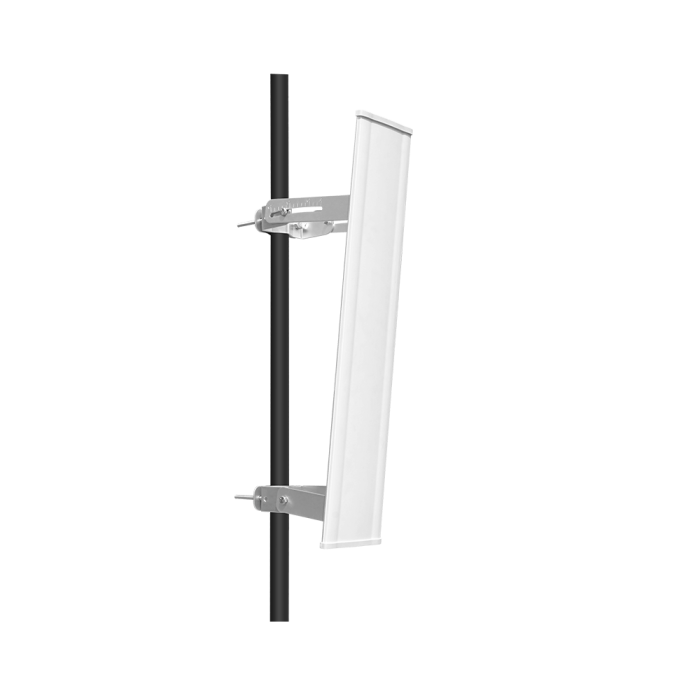

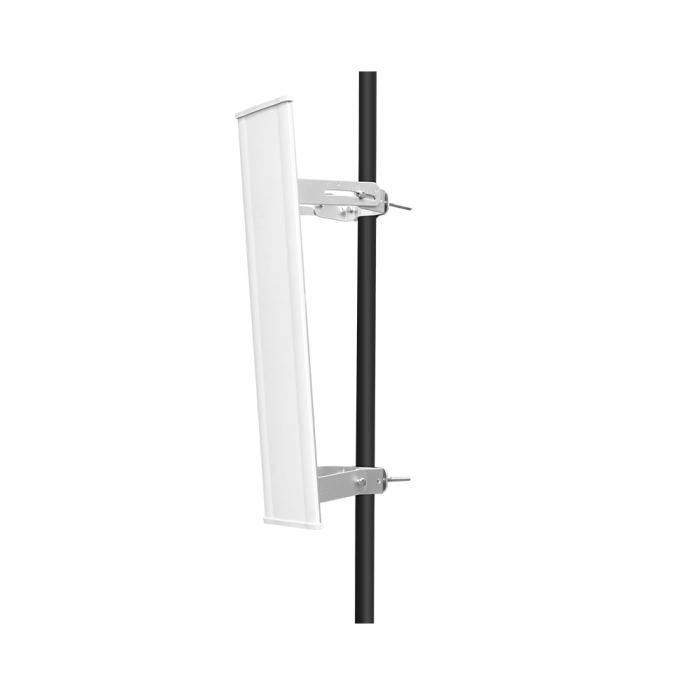

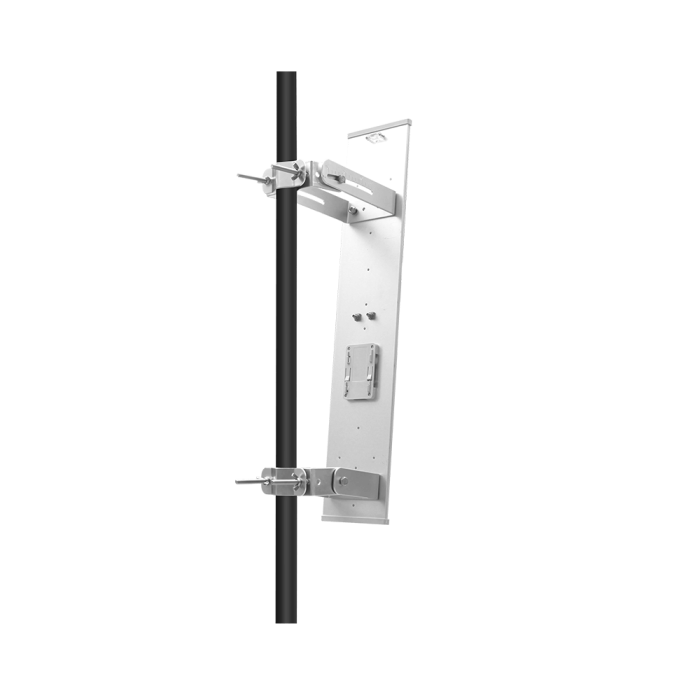

Tenda ANT19-5G120 5GHz 19dBi Dual Polarity Sector Antenna
- Mount pole Diameter 30-70mm
- Operating frequency at 5100~5850MHz
- Two RP-SMA Radio Connector
- Dual polarization design
- 19dBi high gain
Mechanical
Antenna Dimensions( LxWxD);
785 x 150 x 20mm
Mounting
Pole (D30-70mm)
Mechanical tilt capability
0-4
Connector Type
2xRP-SMA
Operational Temperature
-40C to 70C
Operational Humidity
10%-90% non-condensing
Survival Wind
<200km/hr
Electrical
Antenna Type
Sector Antenna
Frequency Range
5100-5850 MHz
Gain
18-19dBi
Polarization
Vertical
Horizontal Beamwidth (6dB);
120
Vertical Beamwidth (6dB);
120
Elevation Beamwidth
4
Electrical Downtilt
0
Front-To-Back Ratio
>25dB
Isolation
>25dB
VSWR
< 2.0
Maximum Power Per Port
20W
Impedance
50
Application Scenarios
Application Scenarios
Pair with B6 to deliver PtMP wireless connection within 5km for Privated ISP access or CCTV Surveillance
