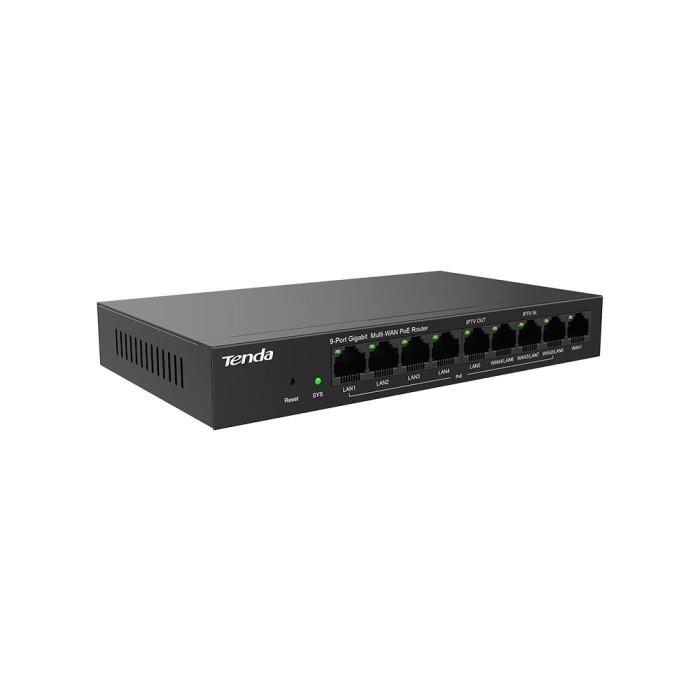

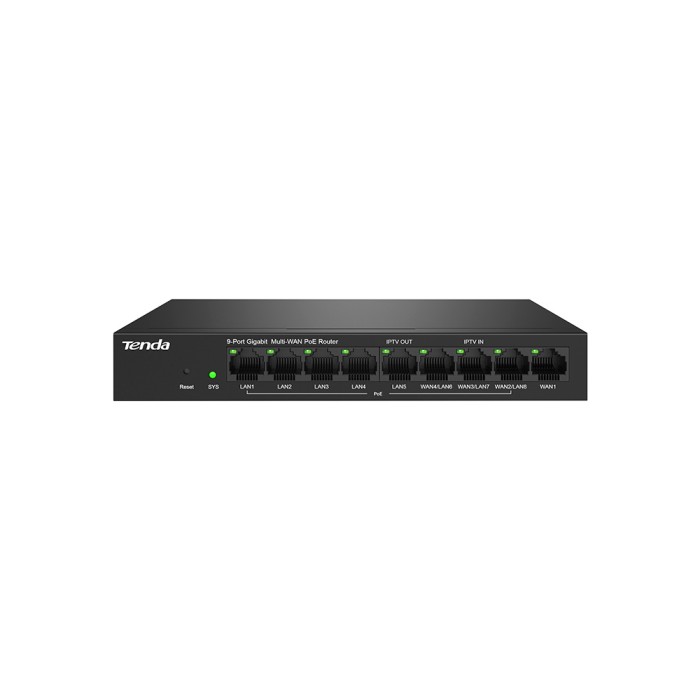

Tenda G0-8G-PoE 9 Port Gigabit Ethernet PoE Router
- Supports IPsec VPN, and L2TP/PPTP VPN connections.
- Up to 4 x WAN Ports，Support load balancing.
- 8x 802.3at/af-compliant PoE ports yield a total power supply of 110W.
- Integrates router, PoE switch, and controller altogether.
- Dual-Core CPU provides 1Gbps Forwarding performance.
Mechanical
Model
G0-8G-PoE
Dimensions
177.5x104x26
Weight
411g
Box Dimensions
326x245x58
Enclosure materials
SGCC
Hardware
Processor
Dual Core, 1.0GHz, MIPS
Memory information
128MB
Networking interface
9xGE (Max. 4 WAN, Max. 8 LAN)

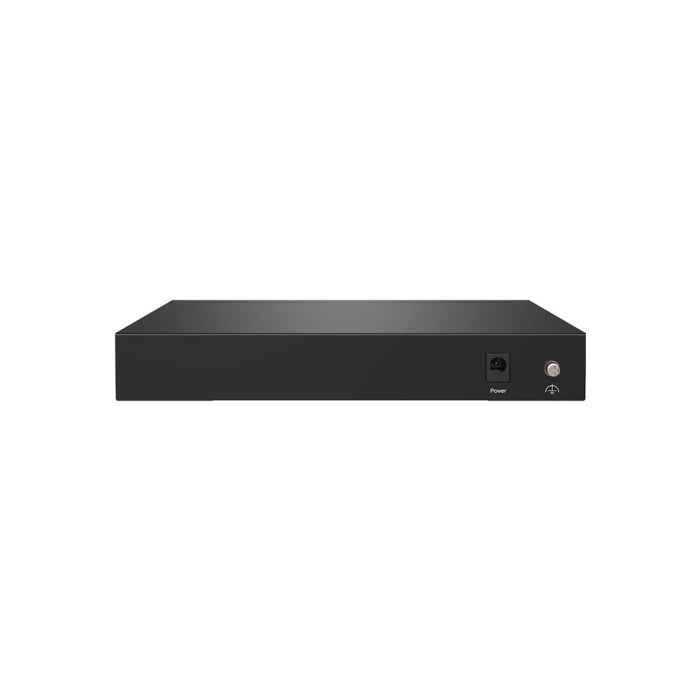

Power method
DC 53V 2.25A
Power supply
Adapter
Max. power consumption
7W (Excluding PoE output)
PoE interface
1-8
Max. PoE wattage per port by PSE
30W
Button
Reset
Operating temperature
Operating Temperature: -10C-45C
Operating humidity
Operating Humidity: 10%-90% RH, non-condensing
Certifications
CE.FCC.RoHS
Performance
Max. Client Capacity
150
Recommended Client Capacity
100
Recommended Broadband
1000Mbps
Max. New Sessions
4000
Max. Concurrent Sessions
49000
NAT (Static IP);
down: 942Mbps/up: 930Mbps
NAT(DHCP);
down: 940Mbps/up: 936Mbps
NAT(PPPoE);
down: 914Mbps/up: 924Mbps
AP Management
Router mode: 128
AC mode: 256
VLAN
4
Gateway Features
Operating Mode
Router& Pure AC
AP Management
Support
DHCP Server
DHCP Server(User/AP)
DHCP Reservation
Wireless Policy
AP Group,Guest Wi-Fi,Wi-Fi Schedule,Wi-Fi Optimization,Scheduled Optimization
Fast Roaming
802.11k,v,r
IPTV
Support
ACL
Based on single user, user group, smart bandwidth control
Bandwidth Control
Group Limit,Single User Limit
VPN
IPSec, PPTP, L2TP
Virtual Server
DMZ, DDNS, DNS Hijacking, IP Hijacking, UPNP, Port Mirroring, Port Mapping, DNS Cache
PPPoE server
Support
captive portal
Support(web.e-mail.SMS.Random Code)
IPV6
Support
WAN Load Balancing
Intelligent Load Balancing,Customize
Routing
Static Routing,Policy Routing
Security
IP-MAC binding, Block Ping from WAN,DDoS Attack Defense,ARP Attack Defense,Binary Association
System Tools
ntp,Scheduled reboot, Diagnosis
System Log
system log,Operating log,Running log
System Account
Administrator,Visitor,Login IP Address Limit
Upgrade
Local,Online
Maintenance
Restore,Backup,Remote WEB Management,Network Diagnosis,Client Detection,WAN Diagnosis,Network Monitoring
Management
http/https, CloudFi, CloudFi APP
LEDs
SYS
Blinking: The device works properly
Solid: The device works abnormally
Off: The device has not finished initiation yet.
Act
Solid: The port is not transmitting or receiving data
Blinking: The port is transmitting or receiving data
Off: The port is not connected to a network device.
