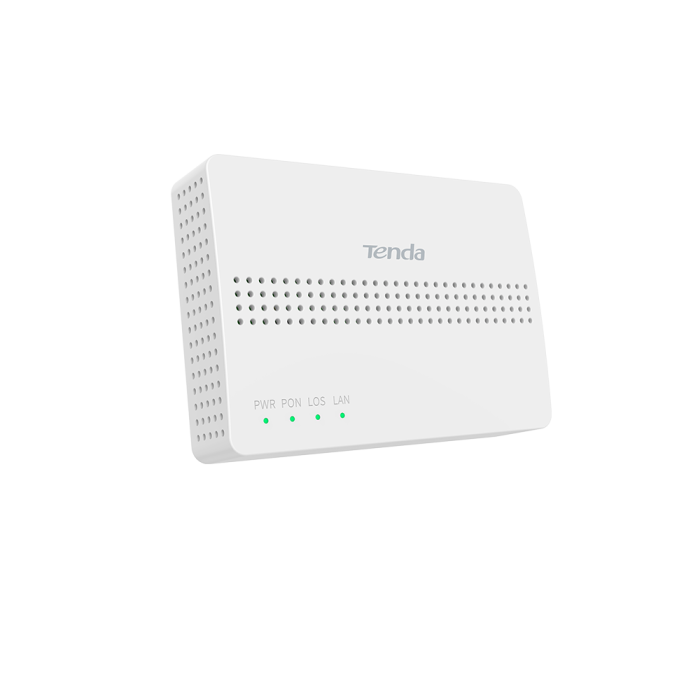

Tenda HG1 Single Port XPON ONT
- Compatibility：Huawei/ZTE/Fiberhome/Nokia and other OLTs
- Feature: Internet
- Interface: 1xGE LAN
Hardware
PON Standards
ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4
Interfaces

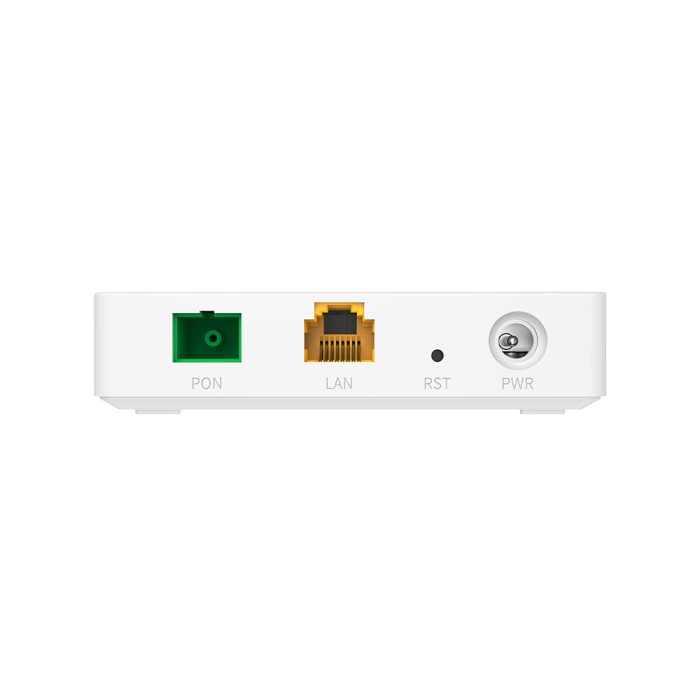

1xSC/APC XPON Port, 1x1000Mbps RJ45 LAN Port, 1xDC Port

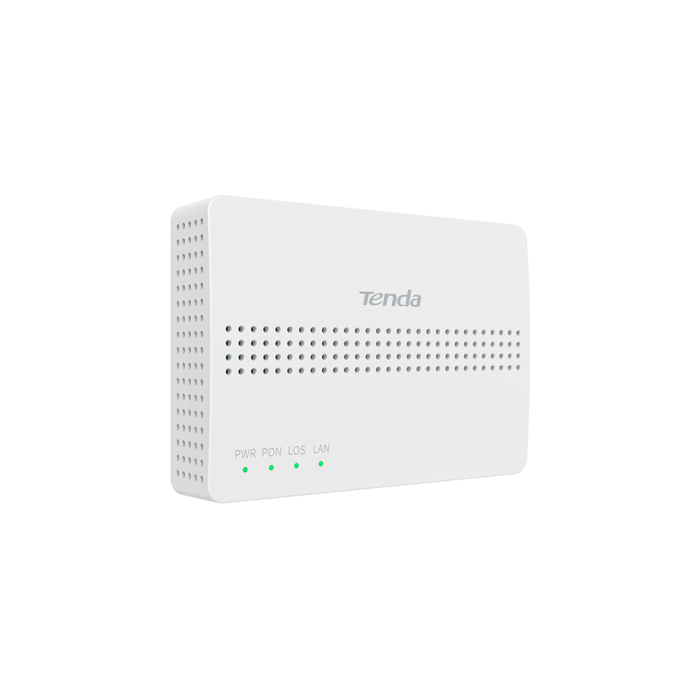

LED Indicator
LAN，LOS，PON，PWR
Button
1 RESET Button
Optical Mode
Class B+
Optical Wavelength
Transmit at 1310nm, Receive at 1490nm
Transmission Distance
20km Max
Bandwidth
Upstream 1.25Gbps Max, Downstream 2.5Gbps Max
Dimension
59x57x23mm(WxDxH)
TX Power
0.5-5dBm
RX Power
-28--8dBm
External Power Supply
DC 9V /0.6A
Power Consumption
<5.4w
Software
DHCP Server
Server, Client, DHCP Client List, Address Reservation, DHCP Relay
WAN Connection
PPPoE , Dynamic IP, Static IP, Bridge
Business Type
Internet
IP Version
IPv4, IPv6
Services
DHCP, Dynamic DNS
Firewall
ALG, IP Filter ,Port Filter, Mac Filter, URL Filter Port Forwarding， DMZ
IPv6
Radvd, DHCPv6, MLD Proxy, MLD Snooping
Diagnostics
Ping, Ping6, Tracert, Tracert6
Wireless
Environment
Operation Temperature
0c - 45c
Storage Temperature
-40c - 70c
Operating Humidity
10% - 90% （Non-condensing）
Storage Humidity
5% - 90% (Non-condensing)
Others
Package Contents
1xHG1,1x Power adapter,1x Quick install guide
Certification
CE, FCC, RoHS, Anatel
