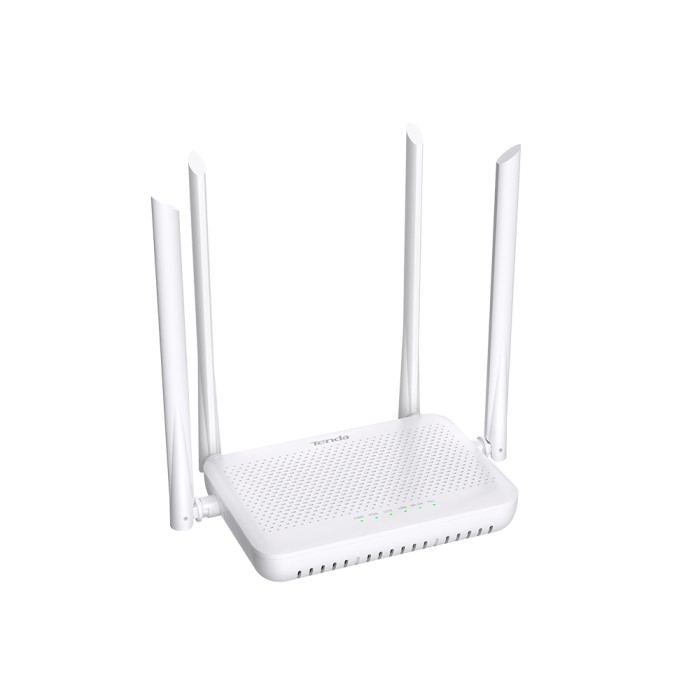

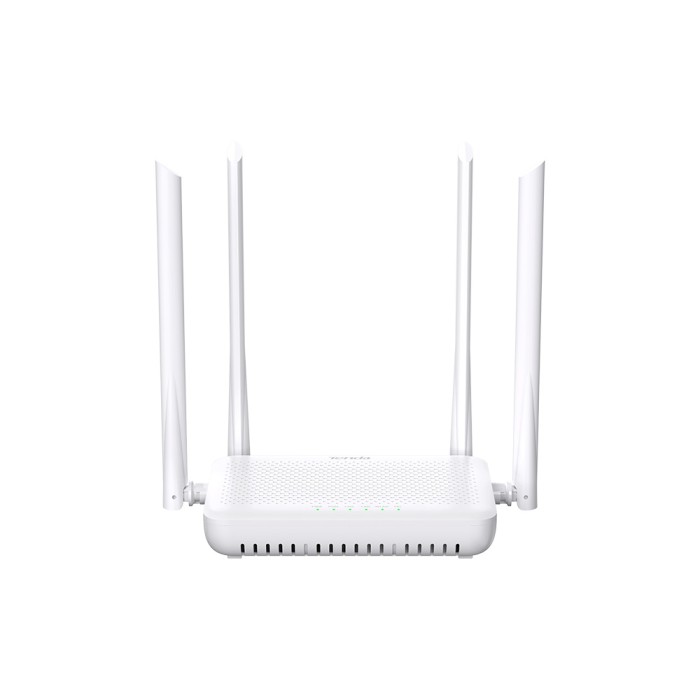

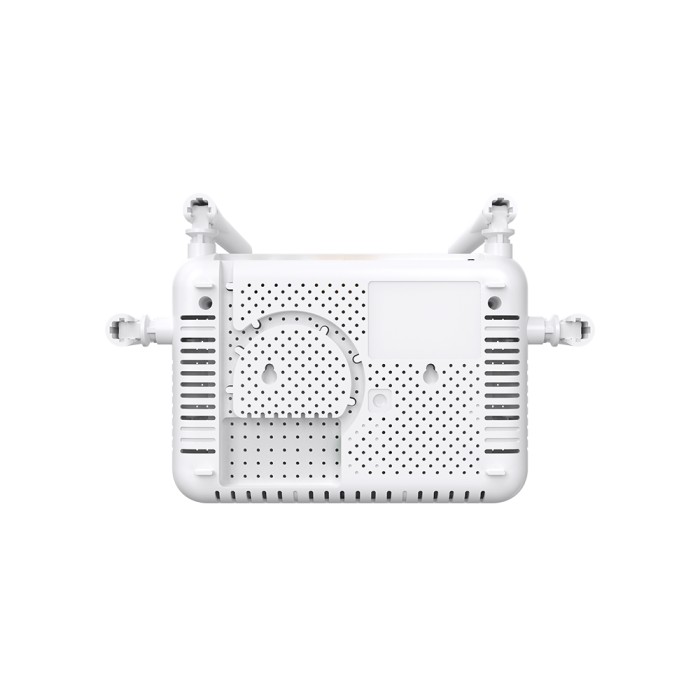

Tenda HG15 AX1500 Wi-Fi6 VoIP XPON ONT
- Compatibility：Huawei/ZTE/Fiberhome/Nokia and other OLTs
- Feature: Easymesh/Xmesh/Preset/IPTV/VoIP/OMCI/TR069
- Interface: 2/4xGE LAN;1xPOTS
- Antenna: 4x6dBi
- Speed: 2.4G:300M; 5G:1201M
Hardware
IEEE Standards
IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z
PON Standards
GPON：ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4
EPON：IEEE 802.3 ah

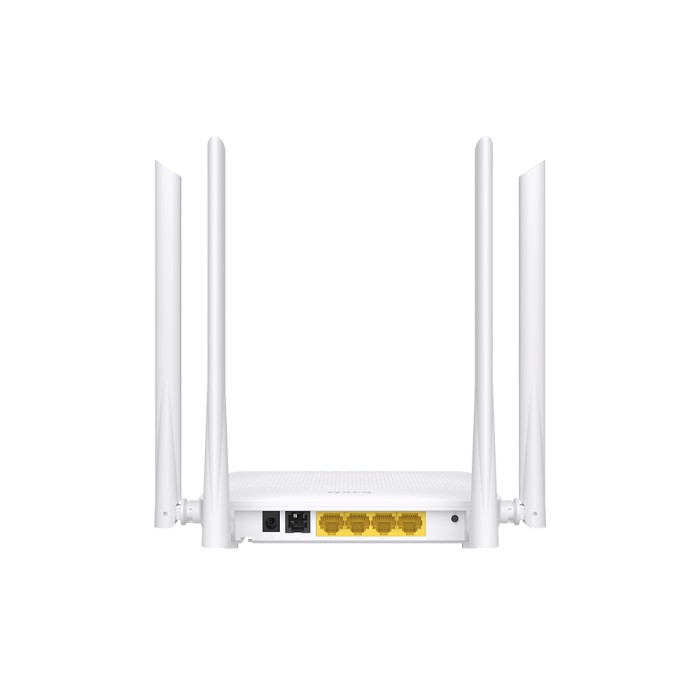

Interfaces
1 xSC/APC or SC/UPC （optional）Port
4 x1000Mbps RJ45 LAN Ports
1 xTEL Port
1 xDC Power
LED Indicator
PWR, PON, LOS, LAN, WLAN, TEL
Button
1 xRST/WPS Button
Optical Mode
Class B+
Optical Wavelength
Transmit at 1310nm, Receive at 1490nm
Transmission Distance
20km Max
Bandwidth
GPON : Upstream 1.244Gbps Max, Downstream 2.488Gbps Max
EPON : Upstream 1.244Gbps Max, Downstream 1.244Gbps Max
Dimension
220.8×141.9×31mm（L×W×H)
TX Power
0.5-5dBm
RX Power
-28--8dBm
External Power Supply
DC 12V /1.5A
Power Consumption
<18w
Software
DHCP Server
Server, Client, DHCP Client List, Address Reservation, DHCP Relay
WAN Connection
PPPoE , Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection
Business Type
TR069, Internet, IPTV, VoIP
Quality Of Service
Bandwidth Control
IP Version
IPv4, IPv6
Services
DHCP, Dynamic DNS, IGMP Proxy UPnP, MU-MIMO, QOS, Preset, Easymesh
VPN Pass-through
PPTP, L2TP, Ipsec Pass-through
Firewall
ALG, IP Filter, Port Filter, MAC Filter, URL Filter Port Forwarding, DMZ, DDOS
IPv6
Radvd, DHCPv6, MLD Proxy, MLD Snooping
Diagnostics
Ping, Ping6, Tracert, Tracert6
TR069
ACS, Connection request
VoIP
Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan , Codec, Hotline, DND, Alarm
Wireless
Frequency
2.4GHz & 5GHz
Bandwidth
2.4G :20M/40M
5G: 20M/40M/80M
Channel Range
2.4G : CH1-CH13
5G : CH36-CH48, CH149-CH165
Antenna
4 x6 dBi Antenna
Easy Client Setup
WPS
Speed
11n 300M + 11ax 1201M
Transmission Power
2.4G: <25.5 dBm(EIRP)
5G: <22.5dBm(EIRP)
Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Beamforming,OFDMA, MU-MIMO
Wireless Security
64/128-bit WEP, WPA / WPA2/ WPA3
SSIDs
Main SSID at 2.4Ghz and 5GHz
4 Guest SSIDs Both At 2.4GHz and 5GHz
Max Terminal Linked
32 at both 2.4GHz and 5GHz
Environment
Operation Temperature
0c - 45c
Storage Temperature
-40c - 70c
Operating Humidity
10% - 95% （Non-condensing）
Storage Humidity
5% - 90% (Non-condensing)
Others
Package Contents
1xHG15, 1x Power adapter, 1x User manual, 1x RJ45 cable, 1xRJ11 cable
Certification
CE, FCC , RoHS，Anatel
