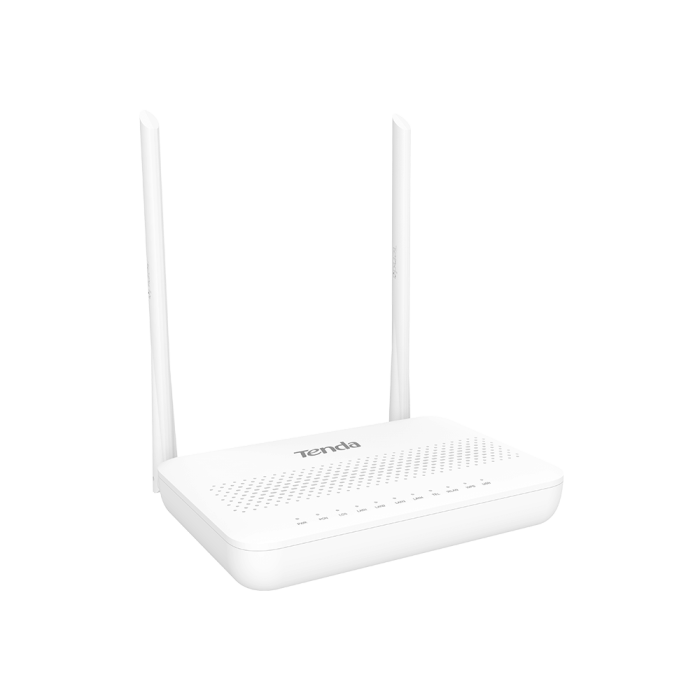

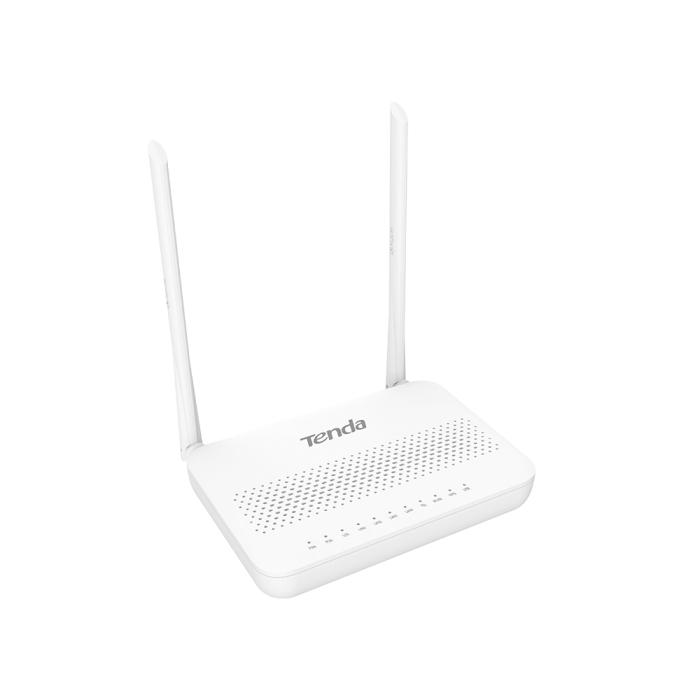

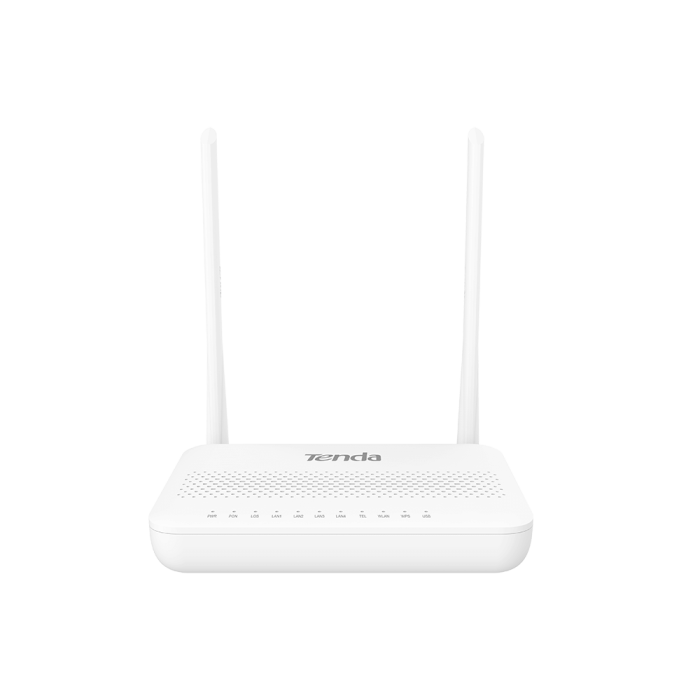

Tenda HG6 N300 Wi-Fi GPON ONT
- Compatibility: Huawei/ZTE/Fiberhome/Nokia and other OLTs
- Feature: Preset/IPTV/VoIP/OMCI/TR069
- Interface: 1xGE+3xFE LAN;1xPOTS;1xUSB 2.0
- Antenna: 2x6dBi
- Speed: 2.4G:300M
Hardware
IEEE Standards
IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z
PON Standards
ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4
Interfaces

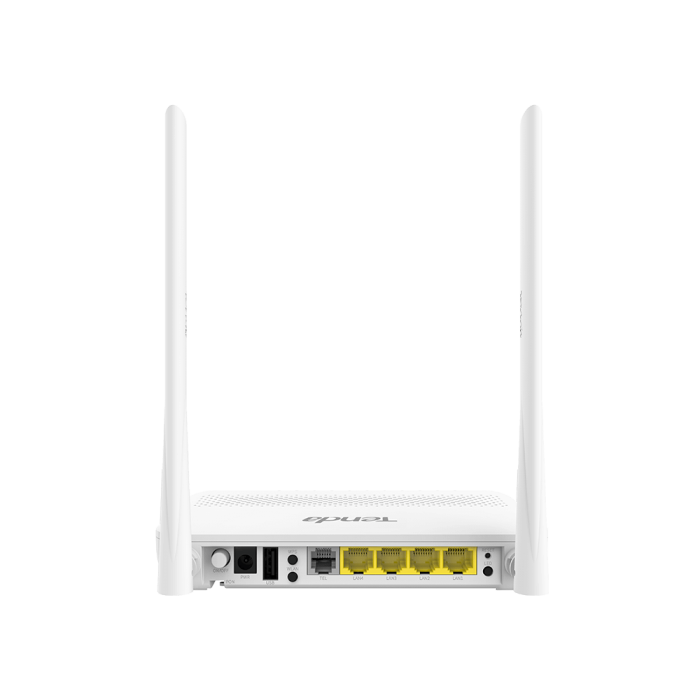

1xSC/APC GPON Port, 1x1000Mbps RJ45 LAN Port, 3x100Mbps RJ45 LAN Ports, 1xUSB Port, 1xVoIP Port, 1xDC Port
LED Indicator
PWR, PON, LOS, LAN1, LAN2，LAN3, LAN4, TEL,WLAN, WPS, USB
Button
1x Power On/Off Button, 1xWPS Button, 1xWLAN Button, 1 RESET Button ，1xLED Button
Optical Mode
Class B+
Optical Wavelength
Transmit at 1310nm, Receive at 1490nm
Transmission Distance
20km Max
Bandwidth
Upstream 1.25Gbps Max, Downstream 2.5Gbps Max
Dimension
163x115x28 mm (W x D x H)
TX Power
0.5-5dBm
RX Power
-28--8dBm
External Power Supply
DC 12V /1.0A
Power Consumption
<12w
Software
DHCP Server
Server, Client, DHCP Client List, Address Reservation, DHCP Relay
WAN Connection
PPPoE , Dynamic IP, Static IP, Bridge
Business Type
TR069, Internet, IPTV, VoIP
Quality Of Service
Bandwidth Control
IP Version
IPv4, IPv6
Services
DHCP, Dynamic DNS , IGMP Proxy UPnP, Samba
VPN Pass-through
PPTP, L2TP, IPsec Pass-through
Firewall
ALG, IP Filter ,Port Filter, Mac Filter, URL Filter Port Forwarding， DMZ
IPv6
Radvd, DHCPv6, MLD Proxy, MLD Snooping
Diagnostics
Ping, Ping6, Tracert, Tracert6
TR069
ACS, Connection request
VoIP
Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan , Codec, Hotline, DND, Alarm
Wireless
Frequency
2.4GHz，IEEE802.11 b/g/n
Bandwidth
20M/40M
Channel Range
CH1-CH13
Antenna
2 x 6 dBi Antenna
Easy Client Setup
WPS Button, WPS LED
Speed
11n 300M
Transmission Power
<20 dBm(EIRP)
Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security
64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK Encryption, Wireless MAC Filtering
SSIDs
Main SSID
4 Guest SSIDs
Max Terminal Linked
32
Environment
Operation Temperature
0c - 45c
Storage Temperature
-40c - 70c
Operating Humidity
10% - 90% （Non-condensing）
Storage Humidity
5% - 90% (Non-condensing)
Others
Package Contents
1xHG6,1x Power adapter, 1x Quick install guide, 1x RJ45 cable, 1x RJ11 cable
Certification
CE, FCC, RoHS, Anatel
