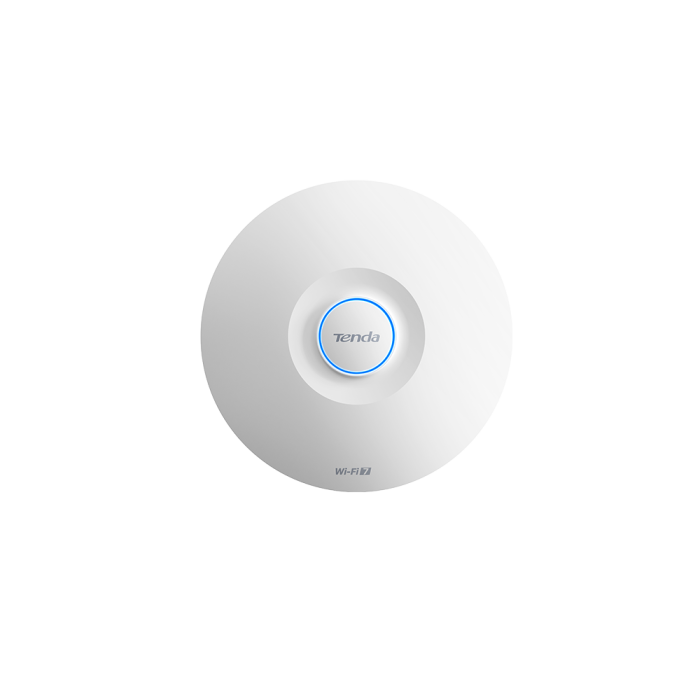

Tenda i36 BE5010 Dual-Band WiFi7 Ceiling Access Point
- Supports PoE power supply
- 2.5G Ethernet uplink port
- Supports cloud platform/APP remote management
- Support 802.11K/V/R fast roaming
- Dual-band wireless speed: 5010 Mbps
Product Information
Model
i36
Category
Ceiling
Dimension
250.6x55 mm
Hardware
Interface
1x100/1000/2500Mbps Ethernet Port (PoE)
1x10/100/1000Mbps Ethernet Port
Button
1xReset
LED Indicator
1xSYS
Maximum Power Consumption
17.4W
Power Supply
PoE 802.3at
Max. Number of Clients
256
Recommended Clients
100
Antenna
2x4dBi + 3x4dBi
2.4GHz maximum power
• CE: <20 dBm (2.4 GHz, EIRP)
• FCC: <25 dBm (2.4 GHz)
5GHz maximum power
• CE: <23 dBm(5 GHz, EIRP)
• FCC: <25 dBm(5 GHz)
Reception Sensitivity
2.4GHz 802.11b -98dBm
2.4GHz 802.11n (MCS7) -77dBm
5GHz 802.11a -95dBm
5GHz 802.11n (40M-MCS7) -76dBm
5GHz 802.11ax (80M-MCS11) -64dBm
Frequency Range
2.4GHz&5GHz
Standard&Protocol
IEEE 802.11b/g/n/ac/ax/be
Maximum wireless speed
2.4GHz: 688Mbps
5GHz: 4323Mbps
Bandwidth
20MHz/40MHz/80MHz/160MHz
Software
Operating Mode
AP/Client+AP
Max. No. of SSID
2.4GHz: 8
5GHz: 4
Hide SSID
Supported
OFDMA
Supported
Beamforming
Supported
Fast roaming（802.11k/v/r）
Supported
WEP
Supported
WPA-PSK
Supported
WPA2-PSK
Supported
WPA
Supported
WPA2
Supported
WPA3-ASE
Supported
Access control
Supported
Adjustable power transmit
Supported
Automatic channel
Supported
AP isolation
Supported
Guest network
Supported
Connected clients control
Supported
RSSI Threshold
Supported
Weak signal terminal elimination
Supported
Prioritize 5 GHz
Supported
VLAN tagging for SSID
Supported
LED control
Supported
MU-MIMO
Supported
Diagnostics tool
Supported
Reboot at specified interval
Supported
Schedule Reboot
Supported
Device management
Web, Router, CloudFi APP, AP Controller
System Logs
Supported
Firmware upgrade
Supported
Reboot
Supported
Reset
Supported
Backup configuration
Supported
Restore configuration
Supported
Others
Default login IP
10.16.16.169
192.168.0.254
Operation Temperature
-10C - 40C
Operating humidity
10%-90% non-condensing
Storage temperature
-30C - 70C
Storage humidity
5%-90% non-condensing
