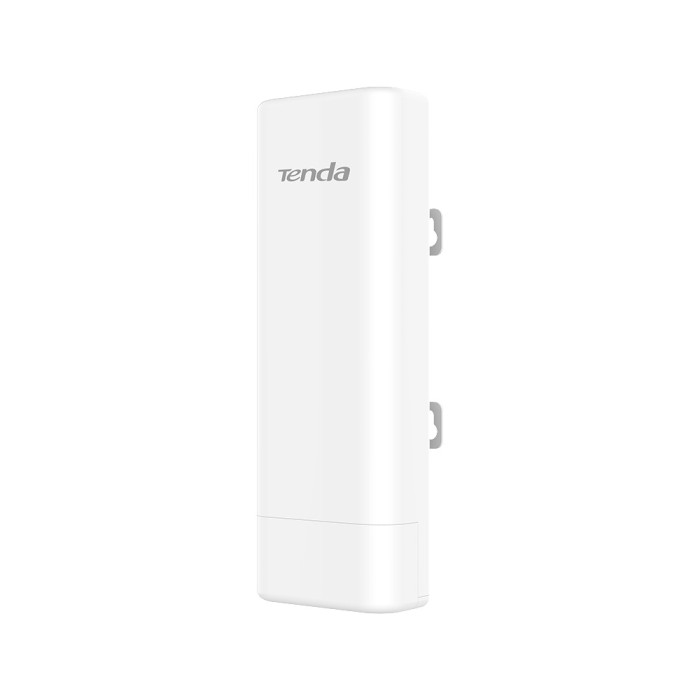

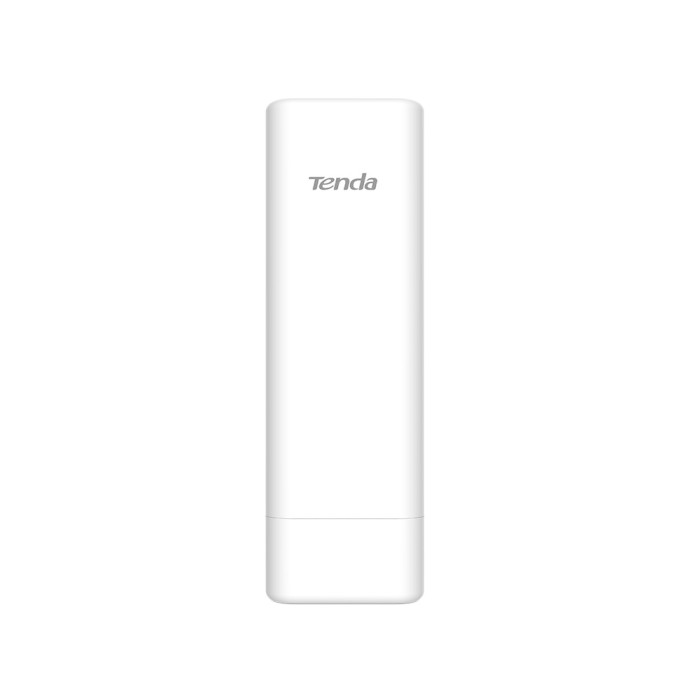

Tenda O6 5GHz 16dBi 11AC Gigabit Outdoor CPE - 1-pack
- AP,Station,WISP operating mode supported
- 6000V Lightning Protection
- IP65 waterproof enclosure
- One Gigabit Ethernet Port
- 16dbi directional antenna
- 5GHz 11AC 867Mbps
Product Information
Model
O6
Dimension
270x94.86x67.5mm
Deployment
Pole/Wall Mount
Application Scenarios
PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
Hardware
Frequency Range
5GHz
Compliant Standards
IEEE 802.11b/a/n/ac
Private TDMA Protocol
TD-MAX
Maximum Wireless Rate
867Mbps
Interfaces
1x10/100/1000Mbps Ethernet Port
Antenna Polarization
Dual Polarization
Antennas Gain
16dBi
Antenna Beamwidth
Horizontal: 30 Vertical: 30
GND
1xGND
Reset Button
1xReset Button
Power Consumption
6.5W
Waterproof Level
IP65
LED Indicator
PoE/LAN, LED1, LED2, LED3
Power Method
PoE 802.3af/at
24V0.5A Passive PoE
12V 1A DC
Lightning Protection
6000V
PoE 802.3af/at
Power over ethernet up to 100 meters
Passive PoE
Passive power over ethernet via PoE/LAN (+4,5pins-7,8pins )
up to 60 meters
Voltage range: 21-25V DC
Reception Sensitivity
11a 6Mbps -91dBm+1.5dBm
11n MCS7 HT20 -72dBm+1.5dBm
11ac MCS9 -62dBm+1.5dBm
Software
TDMA
Support
Operating mode
AP/Station/WISP/Repeater/Router
Enable/Disable Wireless Radio
Support
SSID Hidden
Support
Wireless Client isolation
Support
SSID Isolation
Support
Channel Bandwidth
20/40/80MHz
Channel Shift
Support
Client Limitation For SSID
Support
Wireless Access Control
Support
Weak Signal Client Limitation
Support
Transmission Power
Adjustable power by 1dBm
WMM Capable
Support
APSD Capable
Support
Wireless Security
64/128 WEP, WPA-PSK, WPA2-PSK, WPA
Transparent Bridge
Support
VLAN Tagging for SSID
Support
DHCP Server
Support
VPN Pass-Through
Support
Remote Web access
Support
Schedule Reboot
Support
Page Timeout
Support
Ping Watchdog
Support
Dyndns
noip, dyndns.org
Network Diagnoses
Ping, Traceroute, Signal Scan
Time and Date Setting
Support
Firmware upgrade
Support
Backup/Restore Configuration
Support
Username Managerment
Support
System Logs
Support
Managed By Controller
PC Software CPE Assistant
Others
Package Contents
1x5GHz 16dBi 11AC Gigabit Outdoor CPE
1xPoE Power Adapter
1xQuick Installation Guide
Operation Temperature
-30C - 60C
Storage Temperature
-40C - 70C
Operating Humidity
10%-90% non-condensing
Storage Humidity
10%-90% non-condensing
Default login IP
192.168.2.1
Default Login Username
admin
Default Login Password
admin
Certification
FCC/CE/RoHS
