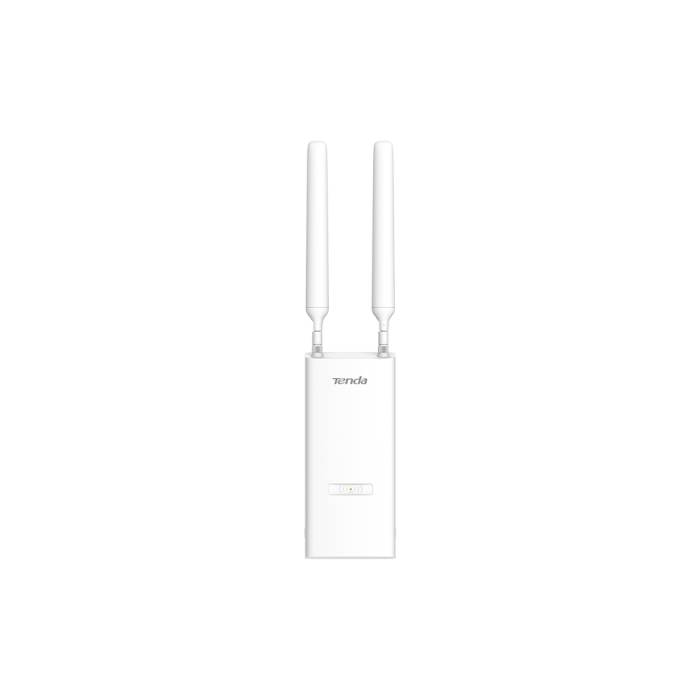

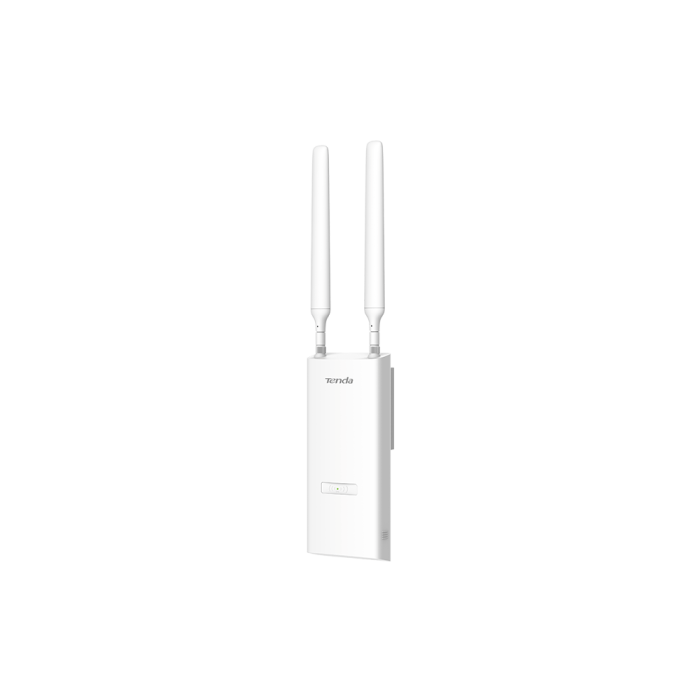

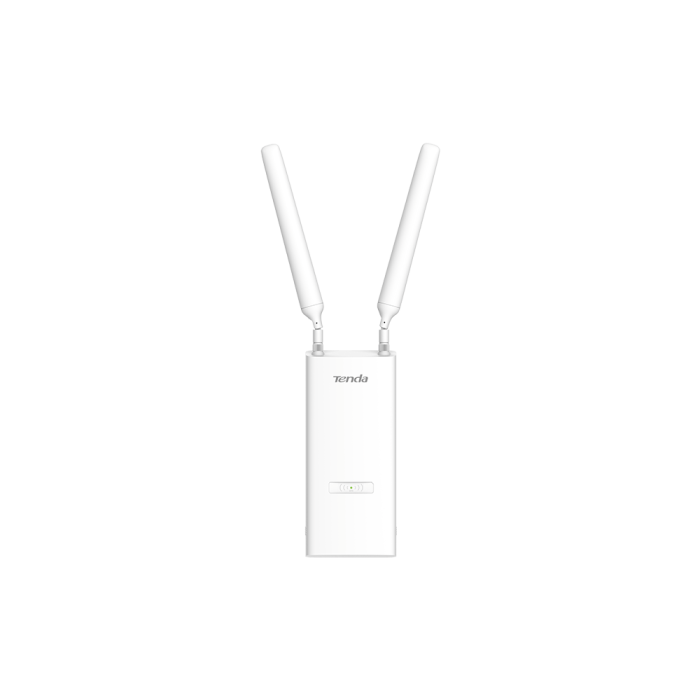

Tenda OAP1200 802.11AC Indoor/Outdoor Wi-Fi Access Point
- IP65 waterproof
- Tenda CloudFi cloud management
- 802.3af PoE and 24V0.5A Passive PoE
- 1xGigabit Ethernet Port
- 300 Mbps(2.4GHz)+ 867 Mbps(5GHz)
Product Information
Model
OAP1200
Category
Outdoor AP
Dimension
194.7x83x42.1 mm
Hardware Specifications
Interface
One 10/100/1000 Mbps Ethernet Port (PoE)
Button
1xReset
LED indicator
1 x SYS
Maximum Power Consumption
11.5w
Power Supply
802.3af & 24V 0.5A Passive PoE
Max. Number of Clients
256
Recommended Clients
38
Antenna
2.4GHz: 2 x 4dBi
5GHz: 2 x 4dBi
2.4GHz maximum power
23+/-1.5dBm
5GHz maximum power
23+/-1.5dBm
Reception Sensitivity
802.11b -93 dBm
2.4 GHz 802.11n (MCS7)
-73dBm
5 GHz 802.11a -93 dBm
5 GHz 802.11n (MCS7)
-74 dBm
Wireless Specifications
Frequency Range
2.4GHz&5GHz
Standard&Protocol
802.11a/b/g/n/ac(wave2)
Maximum wireless speed
2.4GHz: 300Mbps
5GHz: 867Mbps
Bandwidth
20MHz/40MHz/80MHz
Software Specifications
Operating Mode
AP/Client+AP
Max. No. of SSID
2.4GHz: 8
5GHz: 4
Hide SSID
Supported
OFDMA
Supported
Beamforming
Supported
Fast roaming（802.11k/v/r）
Supported
WEP
Supported
WPA-PSK
Supported
WPA2-PSK
Supported
WPA
Supported
WPA2
Supported
Access control
Supported
Adjustable power transmit
Supported
Automatic channel
Supported
AP isolation
Supported
Guest network
Supported
Connected clients control
Supported
RSSI Threshold
Supported
Weak signal terminal elimination
Supported
Prioritize 5 GHz
Supported
VLAN tagging for SSID
Supported
LED control
Supported
MU-MIMO
Supported
Diagnostics tool
Supported
Reboot at specified interval
Supported
Scheduled reboot
Supported
Device management
Web management
Router management
System logs
Supported
Firmware upgrade
Supported
Reboot
Supported
Reset
Supported
Backup configuration
Supported
Restore configuration
Supported
Others
Default IP
192.168.0.254
Operation Temperature
-30C - 50C
Operating Humidity
10%-90% non-condensing
Storage Temperature
-30C - 70C
Storage Humidity
10%-90% non-condensing
