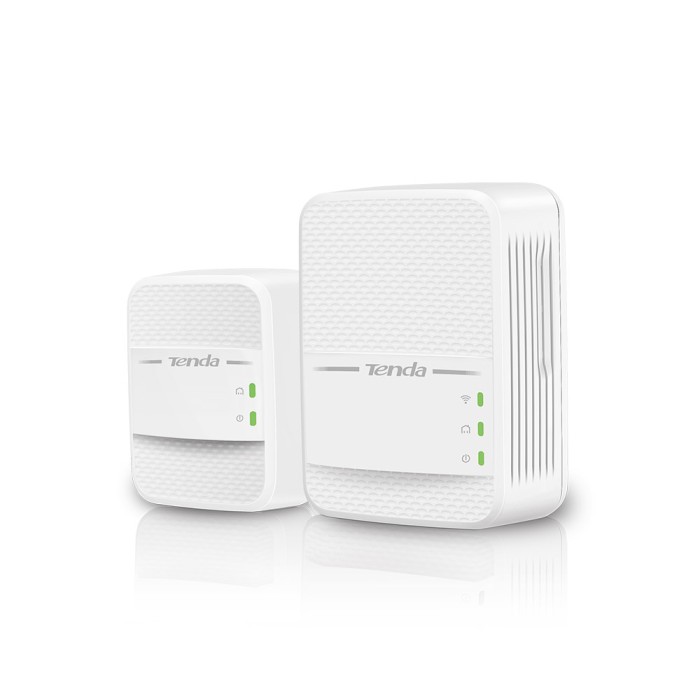

Tenda PH10 AV1000 AC Wi-Fi Powerline Extender Kit
PH10 is an AV1000 ac wifi powerline extender kit, with Gigabit powerline speed and Gigabit Ethernet ports, supports 2.4G and 5G dual-band wireless to meet faster wired and wireless connectivity. With the help of wifi clone function, simple copy of the router wireless configuration to PH10, whole home will be covered by one same wifi network.
Hardware
Power Input
AC100-240V 50/60Hz 0.2A
Interfaces
Wi-Fi Powerline Extender:
1 x 10/100/1000 Mbps RJ45

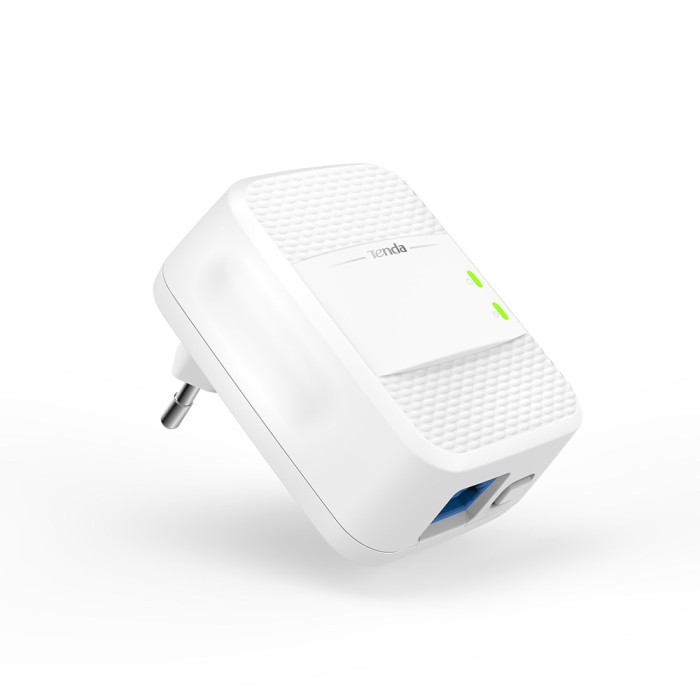

Powerline Adapter:
1 x 10/100/1000 Mbps RJ45
Button
Wi-Fi Powerline Extender:
1 x Wi-Fi Clone, 1 x Pair/Reset, 1 x Power switch
Powerline Adapter:
1 x Pair/Reset
LED Indicator
Wi-Fi Powerline Extender:
1 x Power, 1xPowerline, 1 x Wi-Fi
Powerline Adapter:
1 x Power, 1 x Powerline
Antenna Type
Internal antenna
Dimension
Wi-Fi Powerline Extender: 110mmx77.5mmx49.5mm(L x W x H)
Powerline Adapter: 80mmx62mmx35mm(L x W x H)
Wireless
Wireless Data Rate
5GHz Up to 433Mbps
2.4GHz Up to 200Mbps
Software
Wireless Standard
HomeplugAV2
IEEE 802.3, IEEE 802.3u, IEEE
802.3ab
IEEE802.11a/b/g/n/ac
Frequency
Powerline: 2-86MHz
Wireless: 5GHz(11ac), 2.4GHz
Poweline Data Rate
Poweline: 1000Mbps
Wireless: 5GHz Up to 433Mbps, 2.4GHz Up to 200Mbps
Others
Certification
CE, FCC、RoHS
Plug Type
US、EU、UK

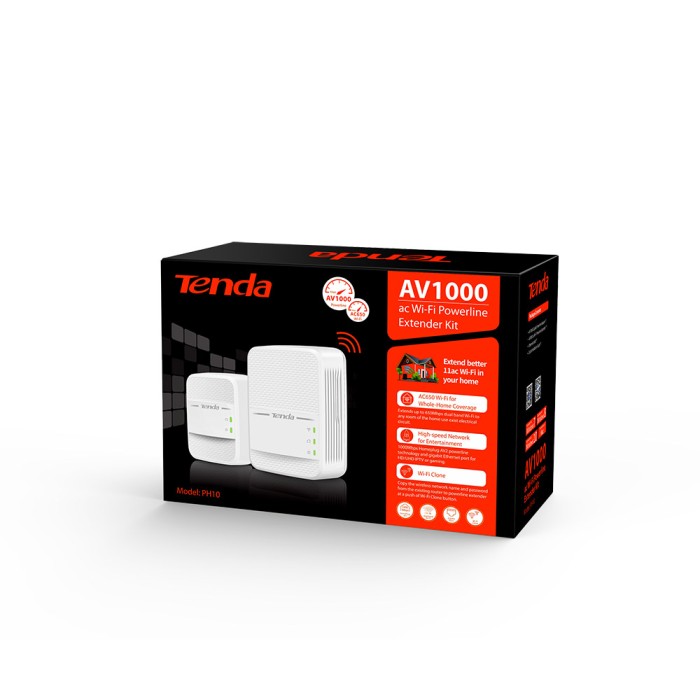

Package Contents
1 x AV1000 ac Wi-Fi Powerline Extender
1 x AV1000 Gigabit Powerline Adapter
1 x Quick Installation Guide
1 x Cat5e Ethernet Cable
Environment
Operating Temperature: 0C - 40C(32F - 104F)
Storage Temperature: -40F - 158F (-40C - 70C )
Operating Humidity: 10% - 90% RH non-condensing
Storage Humidity: 5% - 90%RH non-condensing
