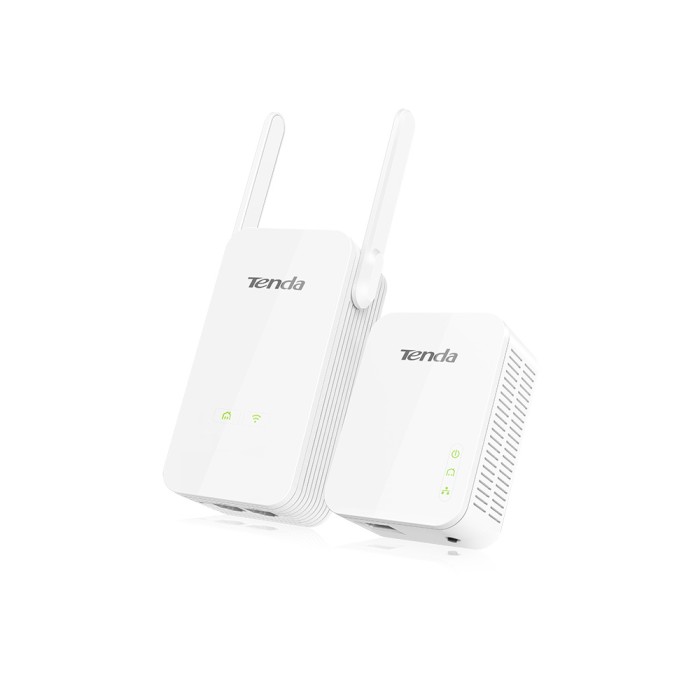

Tenda PH5 AV1000 Wi-Fi Powerline Extender Kit
PH5 Double 1000Mbps provides faster network for your entertainment,With the new generation Broadcom Powerline chipset and Homeplug AV2 technology, the transmission speed of PH5 can be up to 1000Mbps. And it’s Gigabit Ports is 10 times better than 100M ports.which is the real Gigabit network for your entertainment.
Hardware
Power Input
AC100-240V 50/60Hz 0.1A
Interfaces

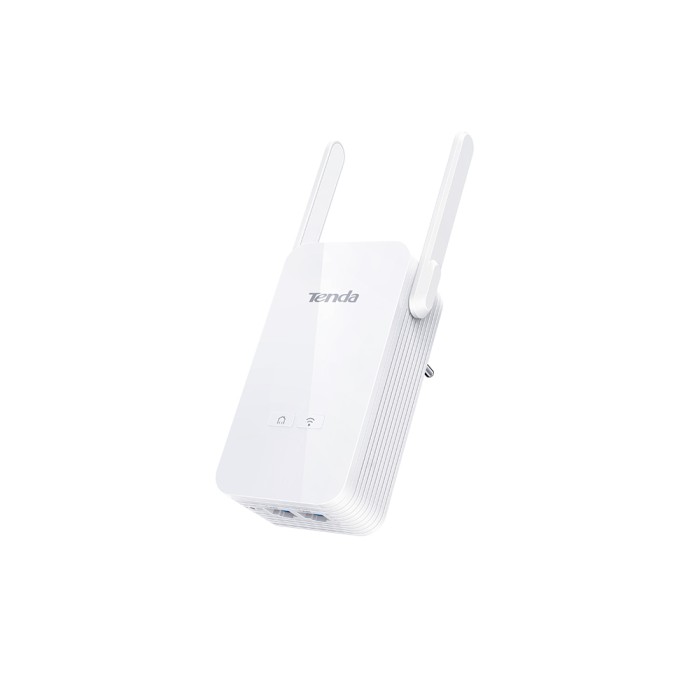

Wi-Fi Powerline Extender:
2 x 10/100/1000 Mbps RJ45

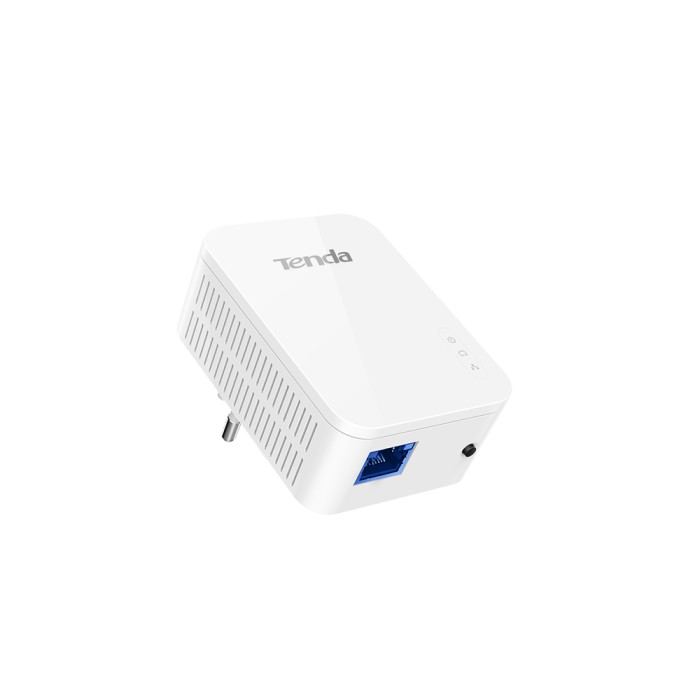

Powerline Adapter:
1 x 10/100/1000 Mbps RJ45
Button
Wi-Fi Powerline Extender:
1 x Pair, 1 x Wi-Fi Clone/switch, 1 x Reset
Powerline Adapter:
1 x Pair/Reset
LED Indicator
Wi-Fi Powerline Extender:
1 x Powerline, 1 x Wi-Fi
Powerline Adapter:
1 x Power, 1 x Powerline, 1 x Ethernet
Antenna Type
2 x External 3dBi omni-directional antenna
Dimension
Wi-Fi Powerline Extender: 120mmx63mmx42mm(L x W x H)
Powerline Adapter: 82mmx60mmx32mm(L x W x H)
Wireless
Wireless Data Rate
300Mbps
Software
Wireless Standard
HomeplugAV2
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
IEEE802.11b/g/n
Frequency
Powerline: 2-86MHz
Wireless: 2.4GHz
Poweline Data Rate
Poweline: 1000Mbps
Wireless: 2.4GHz Up to 300Mbps
Others
Certification
CE, FCC、RoHS
Plug Type
US、EU、UK
Package Contents
1 x AV1000 Gigabit Powerline Adapter
1 x AV1000 2-Port Gigabit Wi-Fi Powerline Extender
1 x Quick Installation Guide
1 x Cat5e Ethernet Cable
Environment
Operating Temperature: 0C - 40C(32F - 104F)
Storage Temperature: -40F - 158F (-40C - 70C )
Operating Humidity: 10% - 90% RH non-condensing
Storage Humidity: 5% - 90%RH non-condensing
