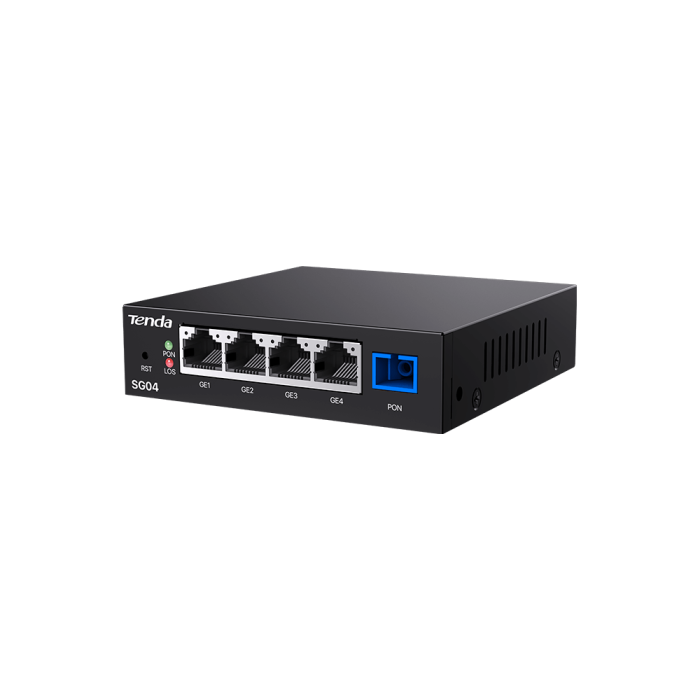

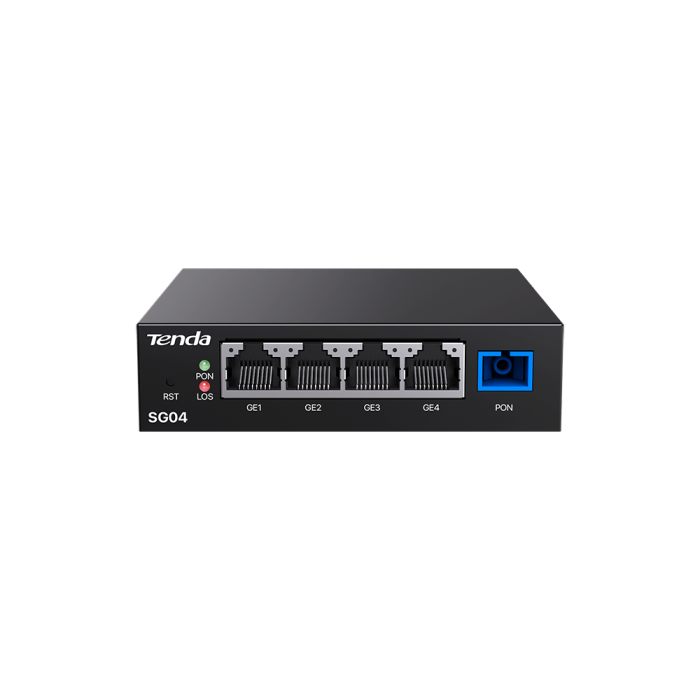

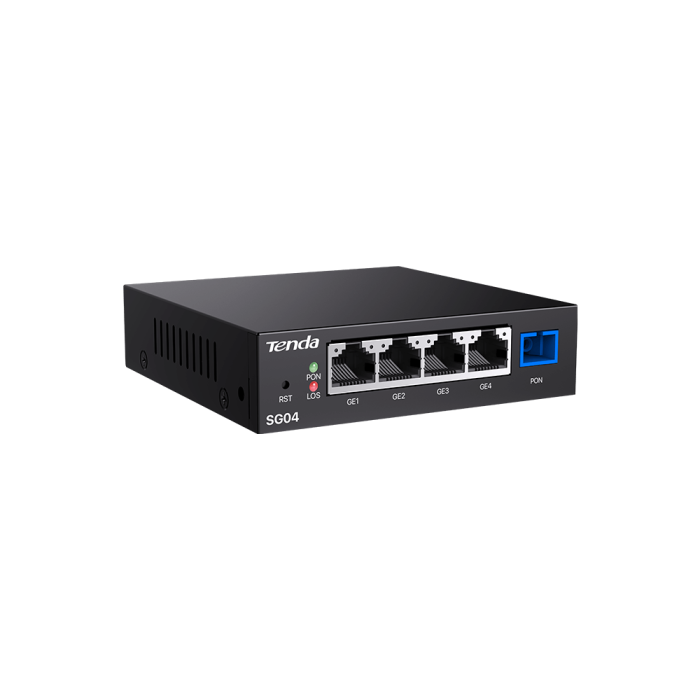

Tenda SG04 4GE xPON ONU
- Compatibility:Huawei/ZTE/Fiberhome/Nokia and other OLTs
- Highly reliable：Working temperature -20 C to+55 C,6KV ports lightning protection
- Feature:Internet
- Interface:4xGE
Hardware Features
Standards
ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4
IEEE802.3ah
Interface
1xSC/APC or SC/UPC （optional）Port
4x1000Mbps RJ45 LAN Ports

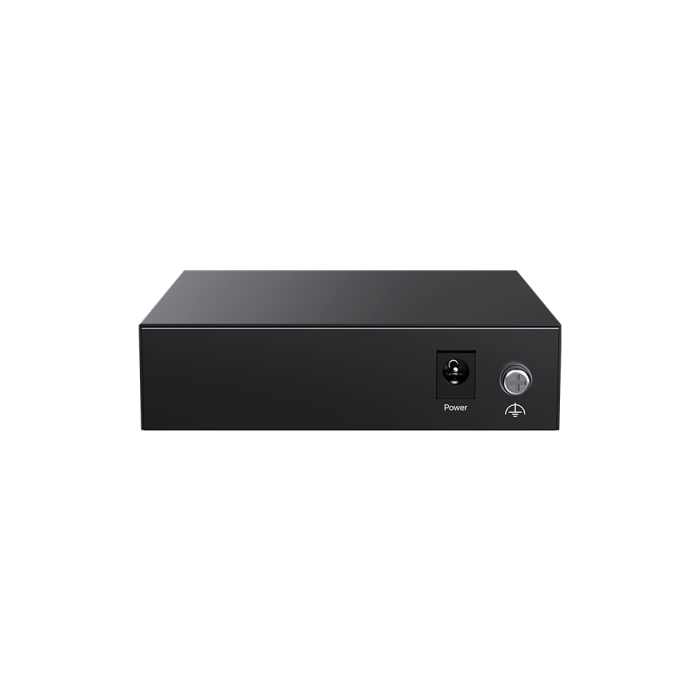

1xDC Power
LED
PON、LOS、LAN
Button
1xRST Button
Optical Mode
Class B+
Optical Wavelength
Transmit at 1310nm
Receive at 1490nm
Transmission Distance
20km Max
Bandwidth
EPON：Upstream 1.244Gbps Max, Downstream 1.244Gbps Max
GPON：Upstream 1.244Gbps Max, Downstream 2.488Gbps Max
Dimensions （LxWxH);
100x100x26mm
TX Power
0.5-5dBm
RX Power
-28--8dBm
lightning Surge
GE: Differential mode:1KV
Common mode:6KV
AC Power：Differential mode:4KV
Common mode:4KV
External Power Supply
DC 12V /1A
Power Consumption
<3w
Certification
CE, RoHS
Software Features
WAN Connection
Bridge Mode
Business Type
Internet
IP Version
IPv4
Environment
Operating Temperature
-20C - 55C
Storage Temperature
-40C - 70C
Operating Humidity
10% - 95% （Non-condensing）
Storage Humidity
5% - 90% (Non-condensing
