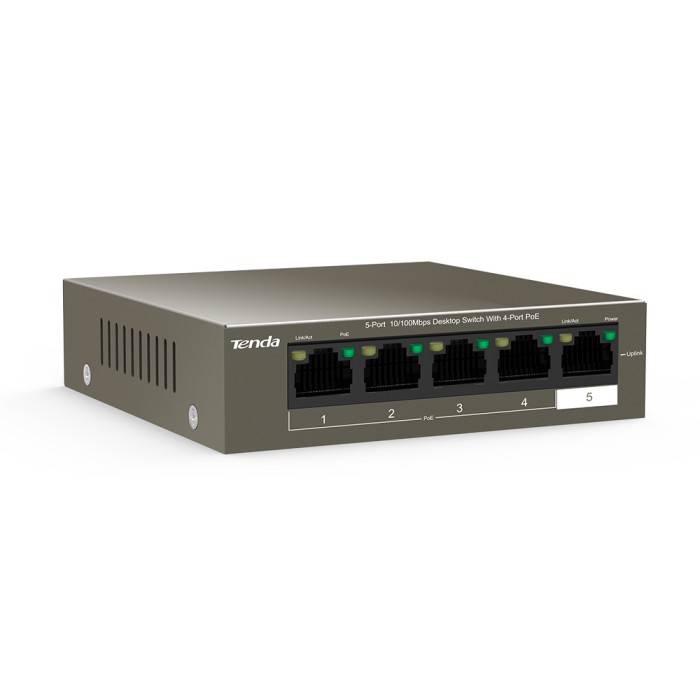

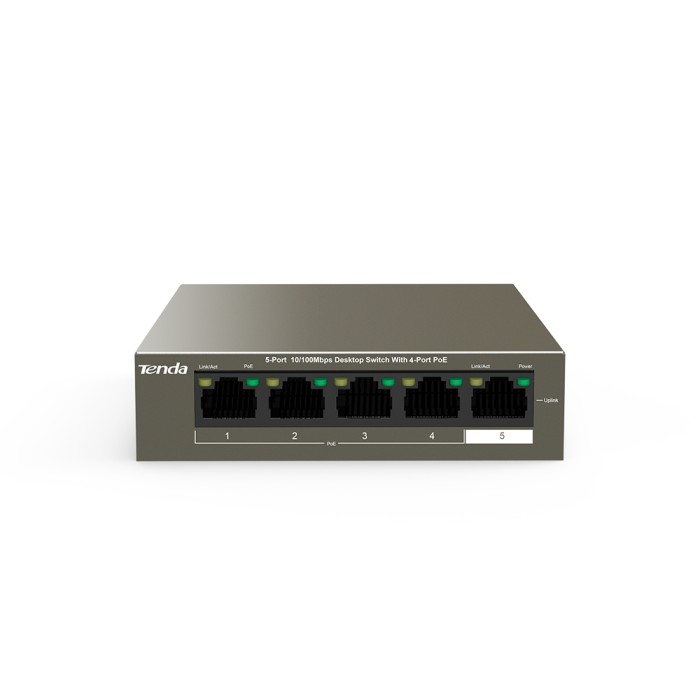

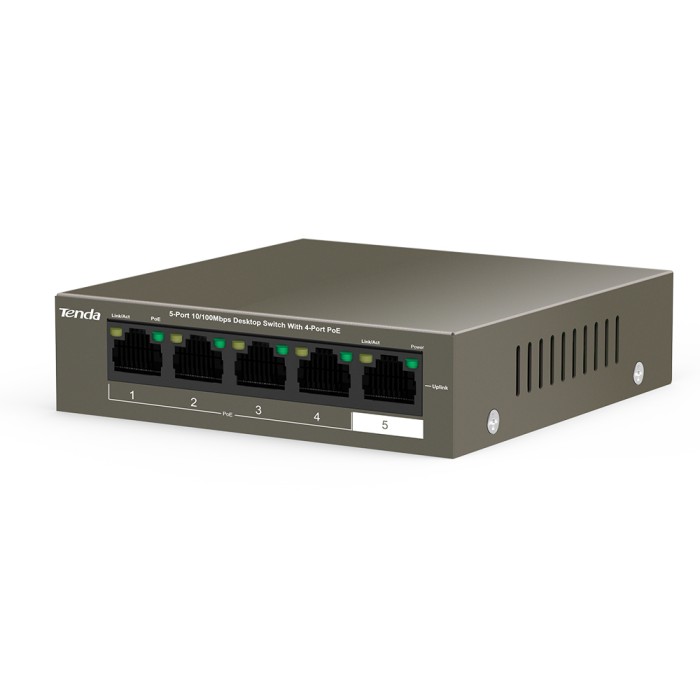

Tenda TEF1105P-4-63W 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
- Supports desktop and wall-mounting
- Support two modes of Standard,Extend
- Single port output power 30W,maximum output power 58W
- 4xPoE+ 10/100Mbps RJ45 ports,1x10/100Mbps RJ45 port
Hardware
Network standards
IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at
LED Indicator
5x Link/Ack LED indicators
1 x Power LED indicator
Interfaces
4x10/100 Base-TX Ethernet Ports(Data/Power)
1x10/100 Base-TX Ethernet Port(Data)
Transmission media
Recommended: CAT5/5e UTP or better
Dimension
100.0mmx100.0mmx26.0mm
Level of protection
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
1Gbps
Packet forwarding rate
0.74Mpps
Buffer
448K
MAC address table
1K
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 58W
Input voltage
100－240V AC 50/60Hz
51V /1.25A DC（Power Adapter ）
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment
Operating Temperature: 0C-45C
Storage Temperature: -40C-70C
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing
Certification
FCC、CE、RoHS
Software
Funtions
Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other .
Extend Mode: If the extend mode is enabled, the transmission distance of both power and data will extend up to 250m(10Mbps), this funcation can replace the extender and parts of the Fiber. It will extend the distance of the whole system and save the cost of the project.
