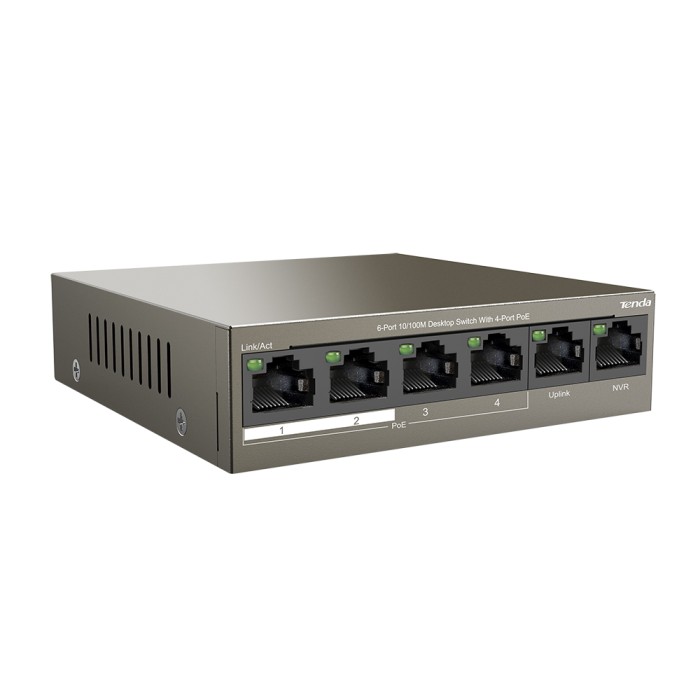

Tenda TEF1106P-4-63W 6-Port 10/100M Desktop Switch with 4-Port PoE
- Supports desktop and wall-mounting

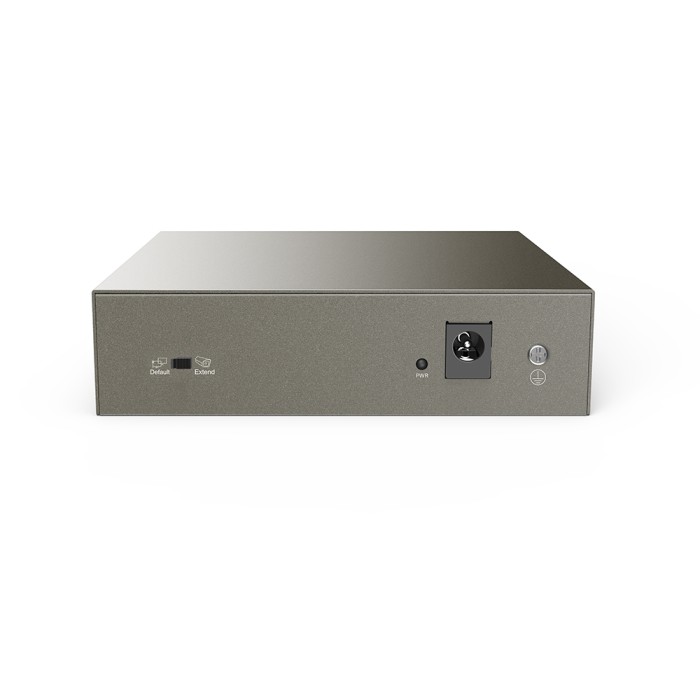

- Support two modes of Standard,Extend
- Single port output power 30W,maximum output power 58W

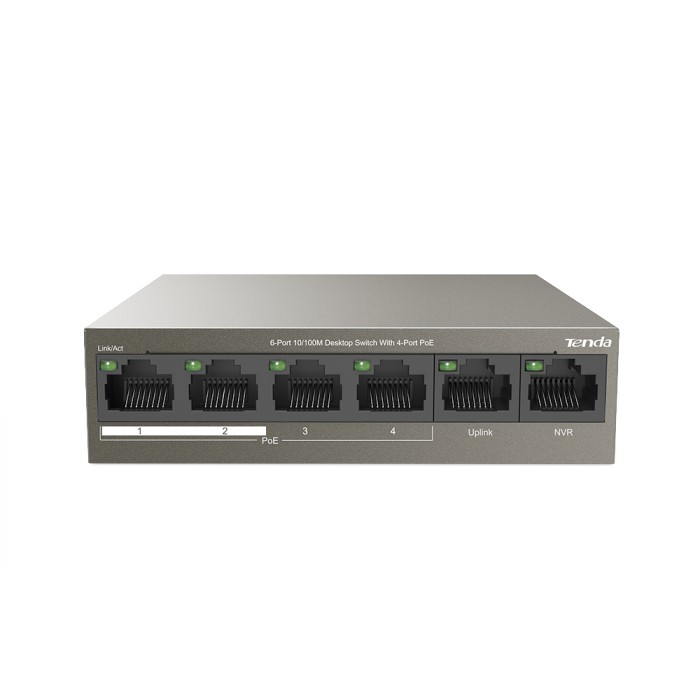

- 4xPoE+ 10/100Mbps RJ45 ports,2x10/100Mbps RJ45 ports
Hardware
Network standards
IEEE 802.3/3u/3x, IEEE 802.3af/at
LED Indicator
6 x Link/Ack LED indicators
1 x Power LED indicator
Interfaces
4x10/100 Base-TX Ethernet ports(Data/Power)
2x10/100 Base-TX Ethernet ports (Data)
Transmission media
Recommended: CAT5/5e UTP or better
Dimension
100.0mmx100.0mmx26.0mm
Level of protection
Lightning protection for ports: 6KV
Lightning protection for power: 4KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
1.2 Gbps
Packet forwarding rate
0.89Mpps
Buffer
448K
MAC address table
1 K
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 63W
Input voltage
100－240V AC 50/60Hz
51V /1.25A DC（Power Adapter ）
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment
Operating Temperature: 0C-45C
Storage Temperature: -40C-70C
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing
Certification
FCC、CE、RoHS
Software
Funtions
Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
Extend Mode: If Extend mode is enabled, Port 1-4 will be isolated respectively (10Mbps auto-negotiation)
.And the delivery distance of powering and network data is up to 250m (10Mbps)
