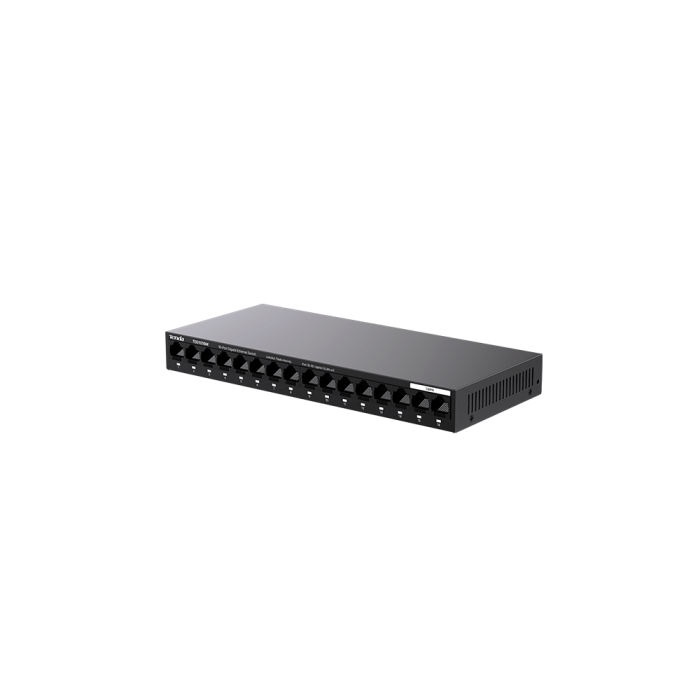

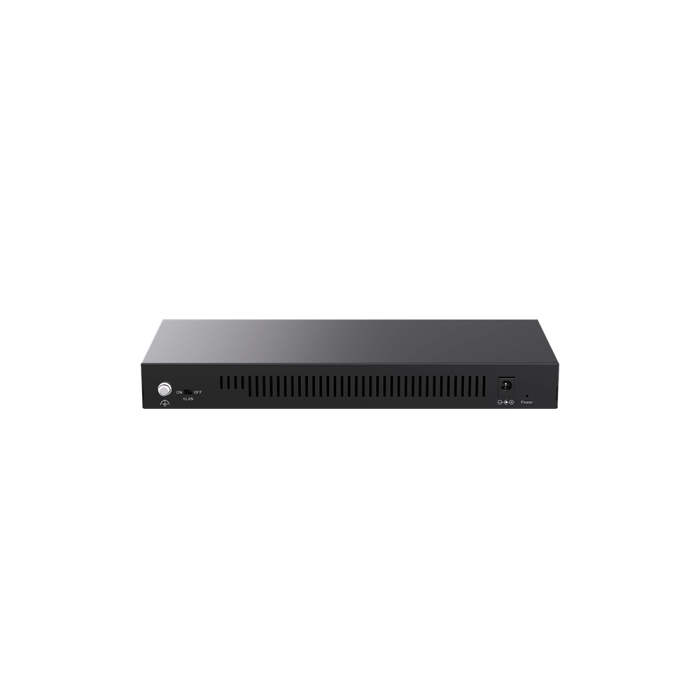

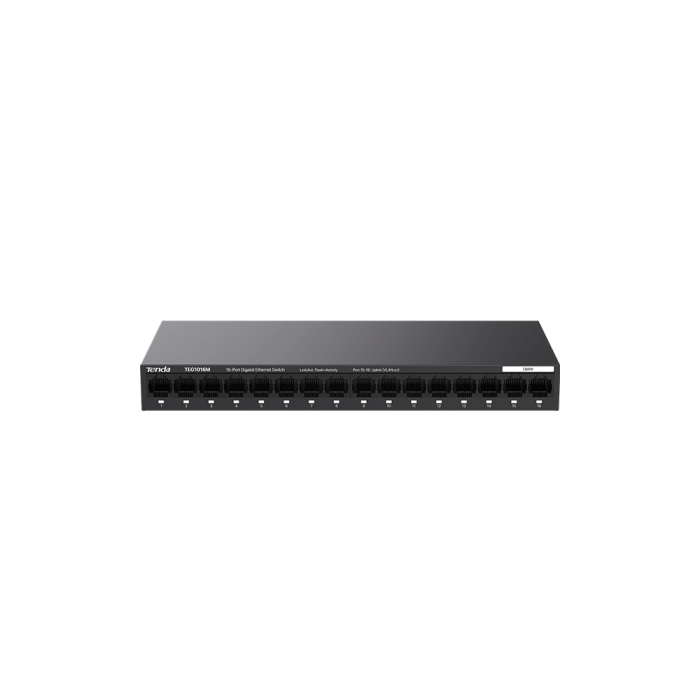

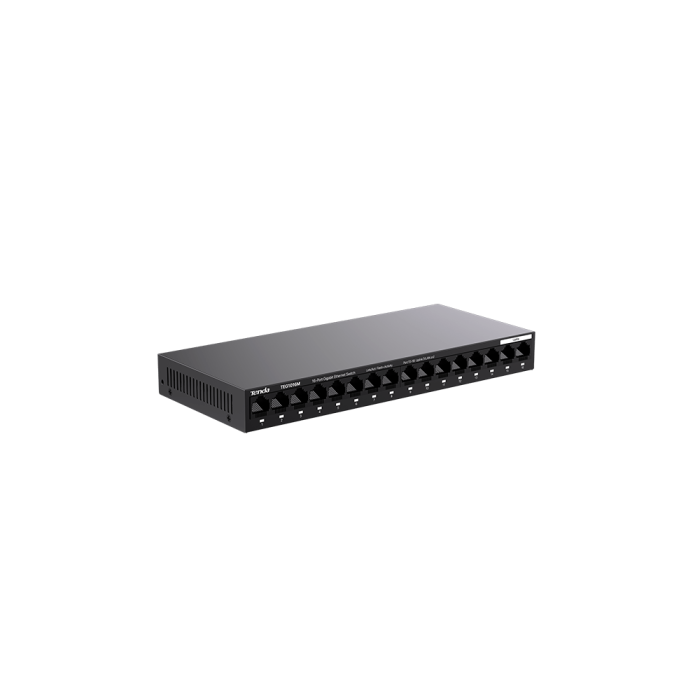

Tenda TEG1016M 16-Port Gigabit Ethernet Switch
- Plug and play for easy networking
- With 13-inch body design,support desktop,wall and rack mounting
- 24 Gigabit Auto-Negotiation RJ45 ports
Hardware
Network standards
IEEE802.3
IEEE802.3u
IEEE802.3x
IEEE802.3ab
LED Indicator
One Link/Act LED indicator for each Gigabit port
One Power LED indicator for each device
Interfaces
16*10/100/1000Base-T Ethernet ports
Transmission media
Ethernet: CAT3 UTP or better
Fast Ethernet: CAT5 UTP or better
Gigabit Ethernet: CAT5e UTP or better
Dimensions
235mmx103mmx27mm
Material
Metal
Level of protection
Lightning protection for port: 6 kV
Lightning protection for power: N/A
Electrostatic protection:
-Air discharge: ±8 kV
-Contact discharge: ±6 kV
Forwarding mode
Store-and-forward
Switch capacity
32Gbps
Forwarding rate
23.8Mpps
Buffer
2Mb
MAC address table
8K
Power method
Input: 100 - 240V AC 50/60Hz, 0.4A
Output: 12V 1A
Power consumption
Max: <12 W
Mounting
Desktop mounting: support
Wall mounting: support
Rack mounting:non-support
Environment
Operating temperature: 0C - 40C
Storage temperature: -40C - 70C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing
Certifications
CE, FCC, RoHS
Funtions
One-key VLAN (In this mode, ports 1 to 14 cannot communicate with each other, but can communicate with ports 15 to 16.)
