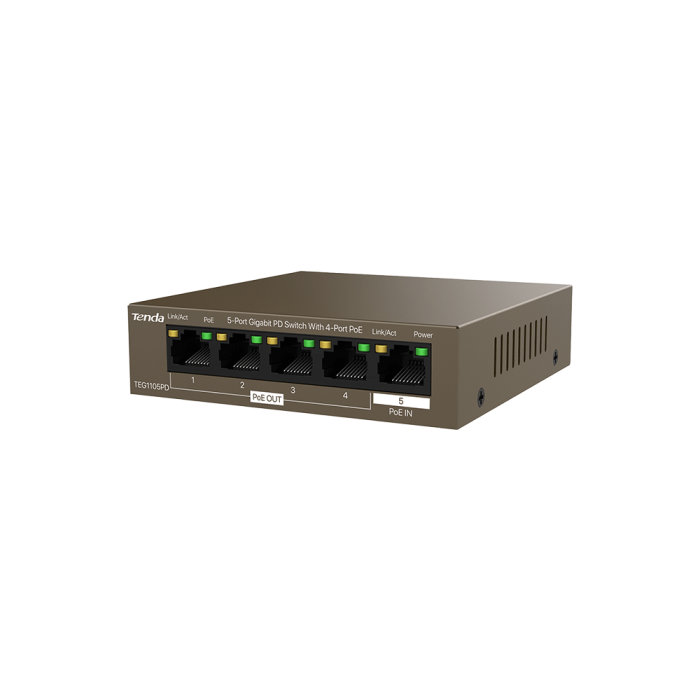

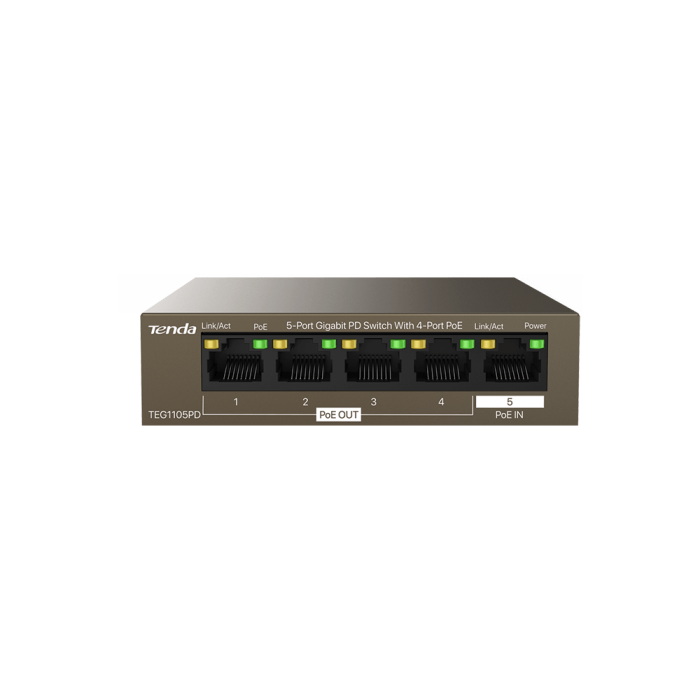

Tenda TEG1105PD 5-Port Gigabit PD Switch With 4-Port PoE
- Supports desktop and wall-mounting
- Single port output power 15.4W,maximum output power 22W
- 1xPort PoE IN(No.5),4-Port PoE OUT(No.1-4)
- 4xPoE+ 10/100Mbps RJ45 ports
Hardware
Network standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
LED Indicator
1x Power LED indicator
4x PoE LED
indicators
5x Link/Act LED indicators
Interfaces
4x10/100/1000 Base-T Ethernet Ports(Data/PoE
UT)
1x10/100/1000 Base-T Ethernet Port(Data/PoE IN)
Transmission media
Recommended: CAT5/5e UTP or better
Dimension
100.0 mm x 100.0 mm x 26.0 mm
Level of protection
Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Switch capacity
10 Gbps
Packet forwarding rate
7.44Mpps
Buffer
1 Mb
MAC address table
2K
Jumbo frame
9K
PoE budget
Single port: AF: 15.4W
Input voltage
50-57V DC, 0.6A
Mounting
Desktop mounting: support
Wall mounting: non-support
Rack mounting : non-support
Environment
Operating Temperature: 0C-45C
Storage Temperature: -40C-70C
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing
Certification
FCC、CE、RoHS
