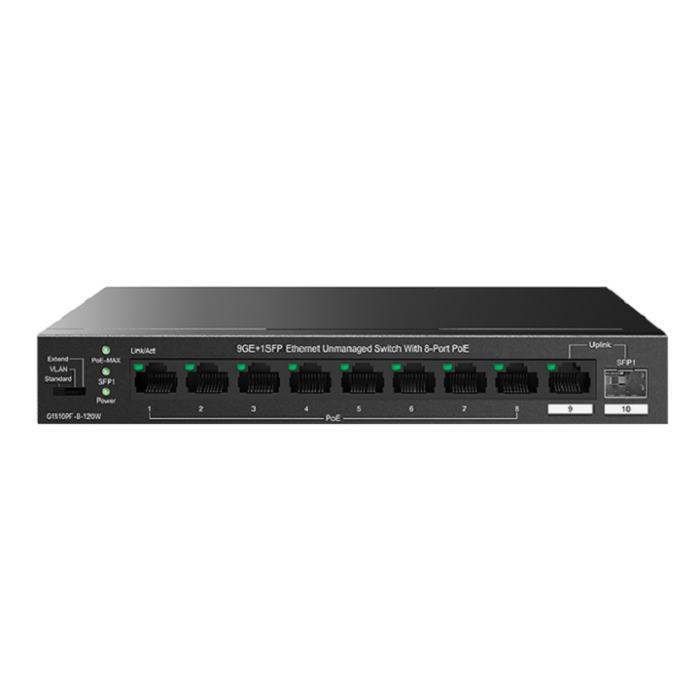

Tenda TEG1110PF-8-120W 9GE+1SFP Ethernet Switch With 8-Port PoE
- Desktop installation &wall mounting
- Supports Three-mode of Standard,VLAN,Extend
- Single port output power 30W,maximum output power 110W
- 8×Gigabit PoE+ RJ45 ports,1×Gigabit RJ45 port,and 1×SFP slot
Hardware
Network standards
IEEE 802.3/IEEE 802.3u/IEEE 802.3ab
IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at
LED Indicator
Power
Link/Act
PoE MAX
Interfaces
(9) 1GE RJ45 ports
(1) 1GE SFP ports
Transmission media
Recommended: CAT5/5e UTP or better
Dimension
177.5mm*104mm*26mm
Level of protection
Port: 6 KV
Power：6 KV
Forwarding mode
Store-and-forward
Switch capacity
20Gbps
Packet forwarding rate
14.9Mpps
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 92W
Power consumption
120W
Input voltage
100-240V AC 50/60Hz
Mounting
Desktop mounting: support
Wall mounting: support
Environment
Operating Temperature: 0C-45C
Storage Temperature: -40C-70C
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing
Certification
FCC, CE, RoHS
Software
Funtions
One-key to change network mode:
1. Standard: Default mode. In this mode, all ports can communicate with each other
.2. VLAN: In this mode, ports 1 - 8 are isolated from each other, but all of them can communicate with port 9 and SFP1. This mode helps isolate DHCP broadcast and reduce broadcast storm.
3. Extend: In this mode, ports 1 - 8 decrease to 10 Mbps in negotiation rate, but transmit up to 250 m in distance. All ports can communicate with each other
