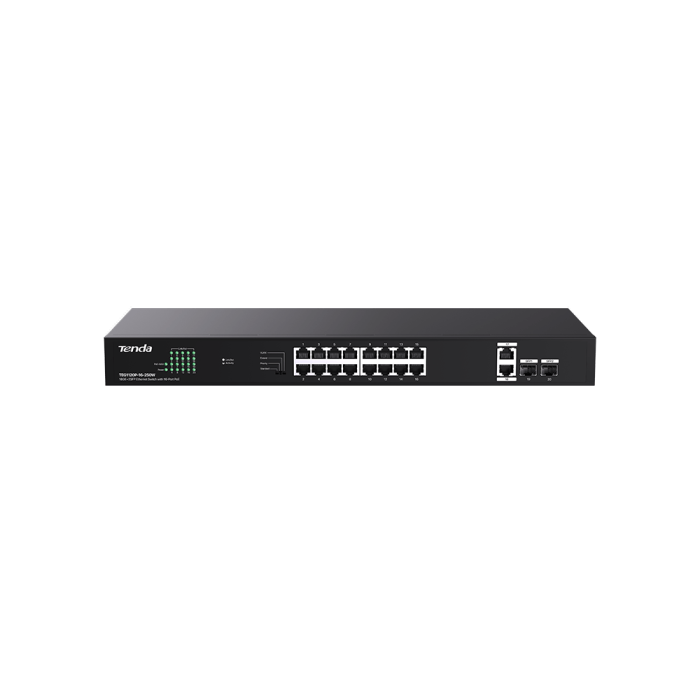

Tenda TEG1120P-16-250W 18GE+2SFP Ethernet Switch With 16-Port PoE

Name: Tenda TEG1120P-16-250W 18GE+2SFP Ethernet Switch With 16-Port PoE
Brand: Tenda
SKU: TEG1120P-16-250W
Availability: OutOfStock
Rating: 4 (1 reviews)

Standard 1U height, rack mounted switch
Support four modes of Standard, Priority, Extend and VLAN
Single port output power 30W, maximum output power 230W
16xGigabit PoE+ RJ45 ports,2xGigabit RJ45 ports,and 2×SFP slots

Enquire on Whatsapp

Description

Hardware

Network standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3x

IEEE 802.3af

IEEE 802.3at

LED Indicator

Power

Link/Act

PoE MAX

Interfaces

(18) 1GE RJ45 ports

(2) 1GE SFP ports

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

Dimension

440mmx178mmx44mm

Level of protection

Port: 6 KV

Power：6 KV

Forwarding mode

Store-and-forward

Switch capacity

40Gbps

Packet forwarding rate

29.8Mpps

Buffer

4Mb

MAC address table

PoE budget

Single port: AF: 15.4W, AT: 30W

Whole device: 230W

Power consumption

250W

Input voltage

100-240V AC，50 / 60Hz

Mounting

Rack mounting : support

Desktop mounting: support

Wall mounting: support

Environment

Operating Temperature: 0C-45C

Storage Temperature: -40C-70C

Operating Humidity: 10%-90% non-condensing

Storage Humidity: 5%-90% non-condensing

Certification

FCC, CE, RoHS

Software

Funtions

One-key to change network mode:

1.Standard: All ports can communicate with each other. It can be used as a common non-management PoE switch.

2.Priority: Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested.

3.Extend: The maximum transmission distance of the 9-16 ports of the switch can reach 250 meters, and all ports can communicate with each other.

4.VLAN: Ports 1 to 16 cannot communicate with each other, but can communicate with ports 17, 18, SFP1 (19), and SFP2 (20), which can be used to isolate broadcast storms and DHCP conflicts.
