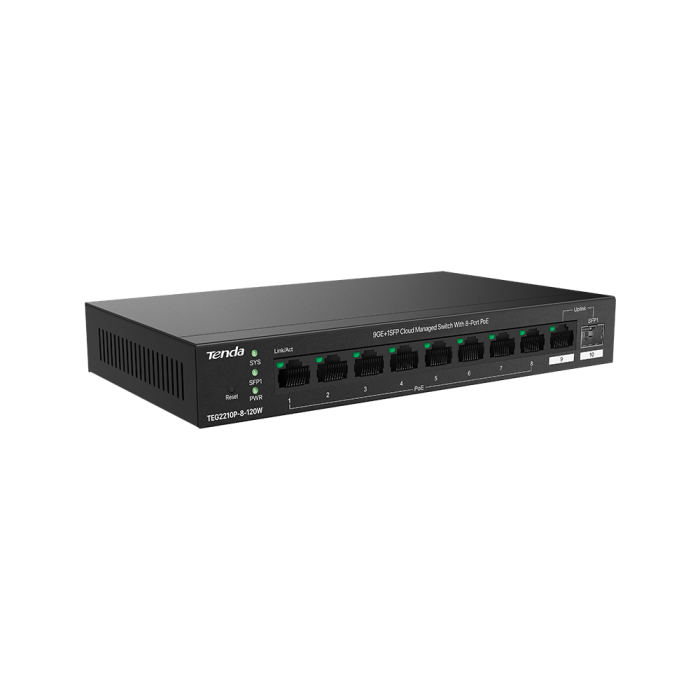

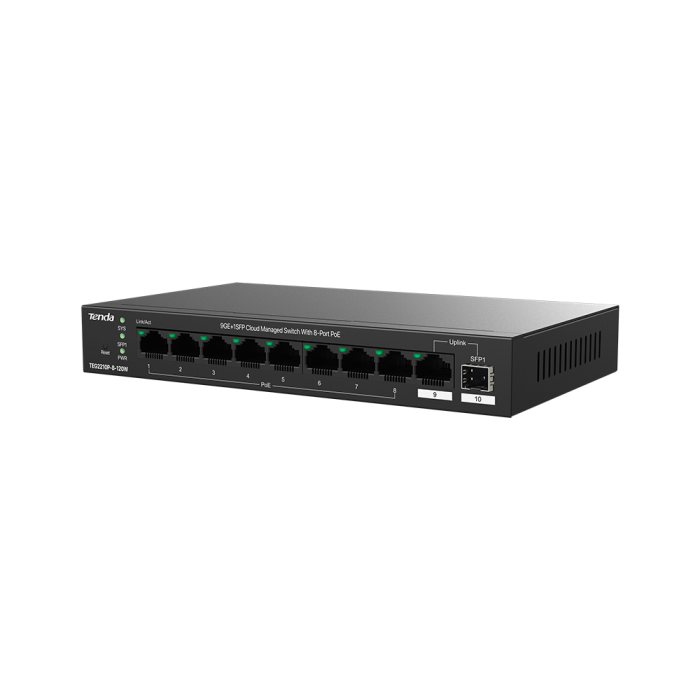

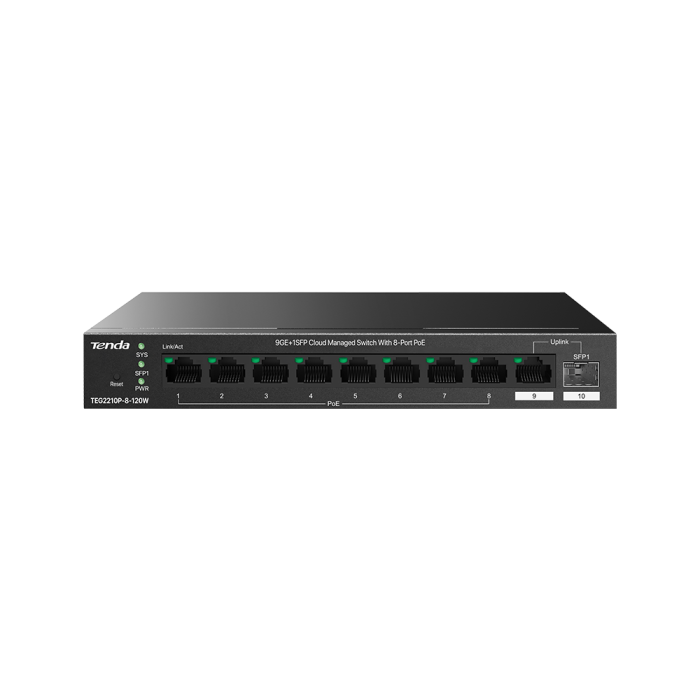

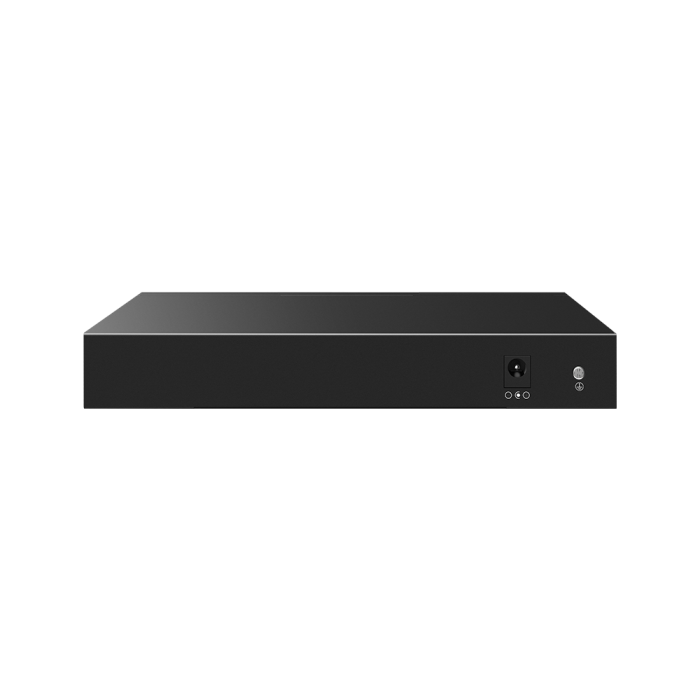

Tenda TEG2210P-8-120W 9GE+1SFP Cloud Managed PoE Switch
- Support QVLAN, DHCP Snooping, loop protection,etc
- Single port output power 30W, maximum output power 110W
- Support Web platform remote management, mobile APP management
- 9GE+1SFP Cloud Managed Switch With 8-Port PoE
Hardware
Dimensions
177.5mm x 104mm x 26mm
Mounting
Desktop mounting: support
Wall mounting: support
Enclosure material
Metal
Interfaces
(9) 1GE RJ45 ports
(1) 1GE SFP ports
PoE interface
(8) PoE(Pins 1, 2+；3, 6-)
LED Indicator
Power
Link/Act
PoE MAX
Switching capacity
20Gbps
Forwarding rate
14.9Mpps
Power method
100-240V AC，50 / 60Hz
Power consumption
120W
Total available PoE
110W
Max. PoE wattage per port by PSE
30W
Lightning protection
Port: 6 KV
Power：6 KV
Button
Factory reset
Operating temperature
0C - 45C
Storage temperature
-40C - 70C
Operating humidity
10% - 90%,non-condensing
Storage humidity
5% - 90%,non-condensing
Certifications
FCC, CE, RoHS
Software
VLAN
Support VLAN transparent transmission
Support IEEE802.1Q VLAN
Port
Support port flow control
Support port isolation
Support port mirroring and aggregation
Support port traffic statistics
Speed limit
Support port entrance and exit speed limit
Anti-ring
Support switch port loop protection
QoS
Support strict priority
Supports weighted priority
MAC
Support MAC address table viewing
MAC whitelist binding
Storm control
Support port storm control
Loading and Upgrading
Support HTTP upgrade
Support configuration import and export
IGMP
Supports lGMP fast leave
Supports lGMP Report Suppression
DHCP
Support DHCP Client
Support DHCP Snooping
PoE
Support PoE power displaySupport PoE on and off
Support PoE timing
watchdog
7 x 24 hours automatic operation and maintenance
Management and Maintenance
Support CloudFi App management
Support CloudFi Cloud web Ul management
Support local web Ul management
Support ping test
