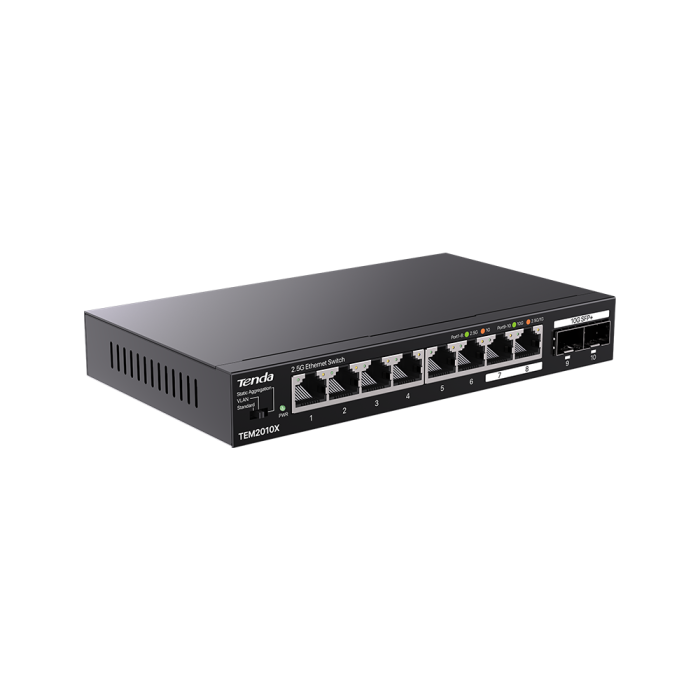

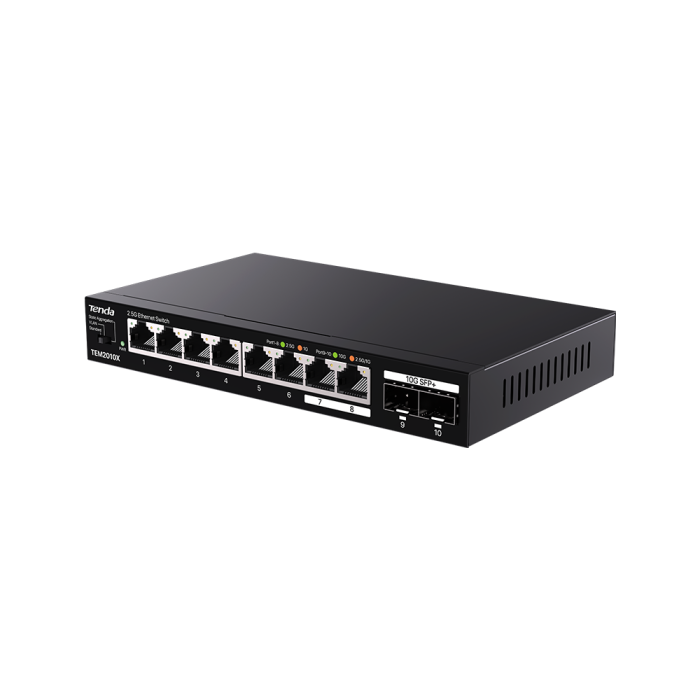

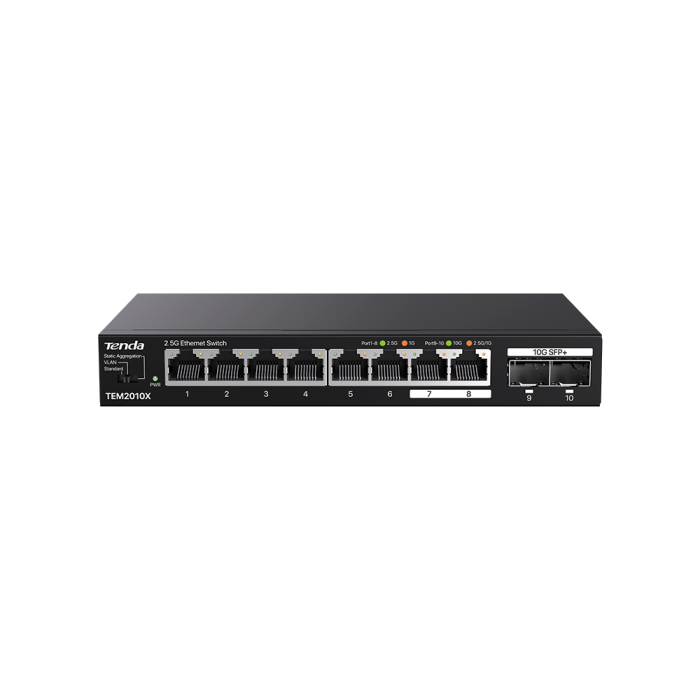

Tenda TEM2010X 8-Port 2.5G Ethernet Switch With 2x 10G SFP+ Slots
- Desktop mounting & Wall mounting
- Durable metal casing and exquisite design
- 8×2.5-Gigabit RJ45 ports and 2×2.5-Gigabit SFP slots
Hardware
Network standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x,
IEEE 802.3bz，IEEE 802.3ae，IEEE 802.3z
LED Indicator
Power
Link/Act
Interfaces
(8)2.5GE RJ45 ports
(2)10GE SFP+ ports
Transmission media
Recommended: CAT5/5e UTP or better
Dimensions
177mmx104mmx26mm
Material
Metal
Level of protection
Port: 6 KV
Forwarding mode
Store-and-forward
Switch capacity
80Gbps
MAC address table
59.5Mpps
Power method
100-240V AC 50/60Hz
Power consumption
Max:<12W
Mounting
Desktop mounting: support
Wall mounting: support
Environment
Operating Temperature: 0C040C
Storage Temperature: -40C070C
Operating Humidity: 10%090% non-condensing
Storage Humidity: 5%090% non-condensing
Certifications
FCC, CE, RoHS, UKCA
Funtions
1. Standard: In this mode, all ports can communicate with each other.
2. VLAN: Ports 1-6 are isolated from each other, but can communicate with ports 7-10
3. Static Aggregation: Group 1: 7-8. For dual-port 2.5G NAS, up to 5 Gbps
