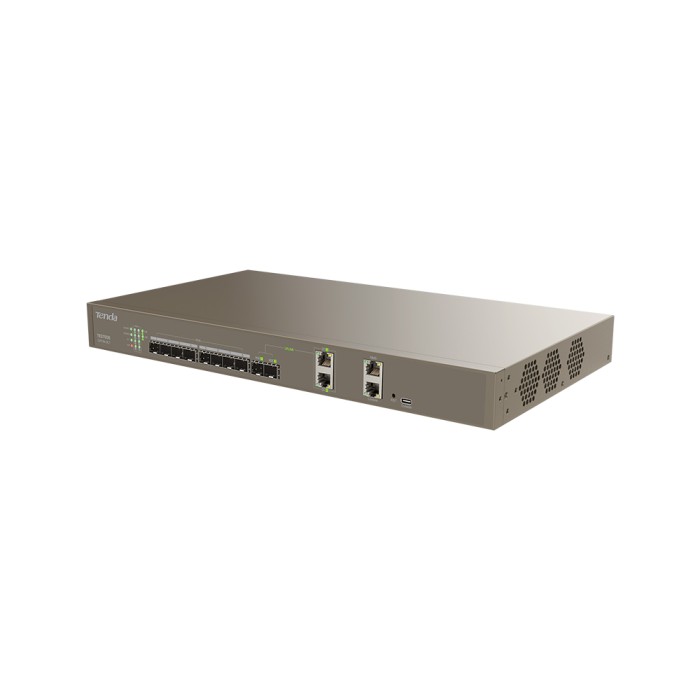

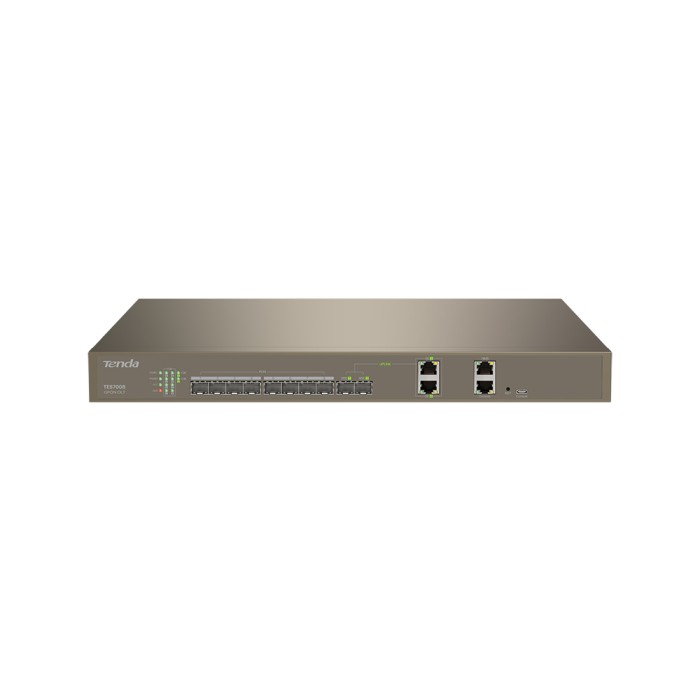

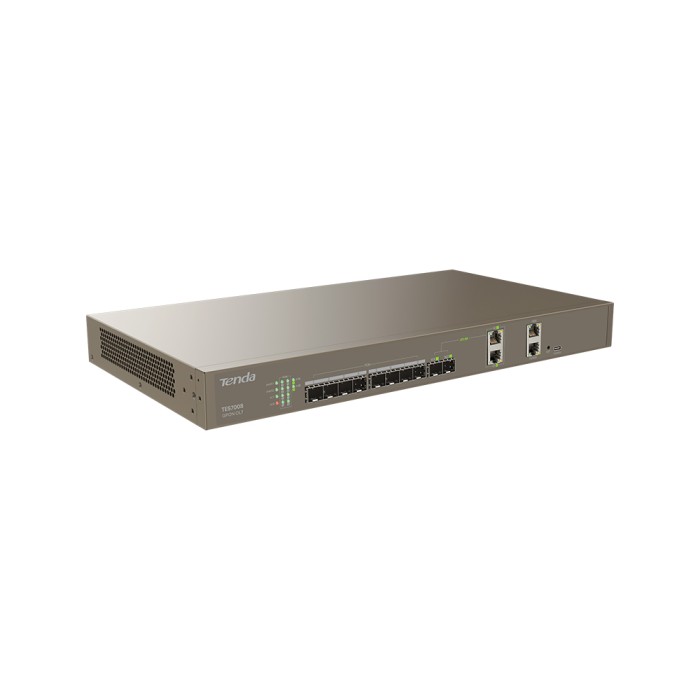

Tenda TES7008 8 Port GPON OLT
- Smart fan,low power consumption,quiet
- Good compatibility with ONT products from different manufacturers
- Guided easy to install,zero confguration ready to use
- DC:-40V-72V
- External Power Supply:Dual AC(100 - 240V)/
- 8xGPON Ports
- 2x10G SFP/SFP+ Ports +2xGE RJ45 Ports
Hardware
Standards
ITU G.984.x, ITU G.988
Uplink
2x 10G SFP/SFP+ Port
2x 1000Mbps RJ45 Ports
1x 1000Mbps RJ45 NMS Port
1x Console port（RS-232)
1x Console port（Typec)
8x GPON Ports
GPON Port
8 port GPON OLT
LED
2x PWR
1x ACT
1x ALM
8x PON
2x XGE
Button
1x RST Button
Optical Mode
Follow ITU-TG.984.2 ClassB+/ClassC+/ClassC++
Optical Wavelength
TX 1490nm,RX 1310nm
Transmission Distance
20km Max
Bandwidth
Upstream 1.244Gbps , Downstream 2.488Gbps
Dimensions （L x W x H);
440 mm x 240mm x 44mm
ONU Access NUM
1024
External Power Supply
AC:100-240V
DC:-40V--72V

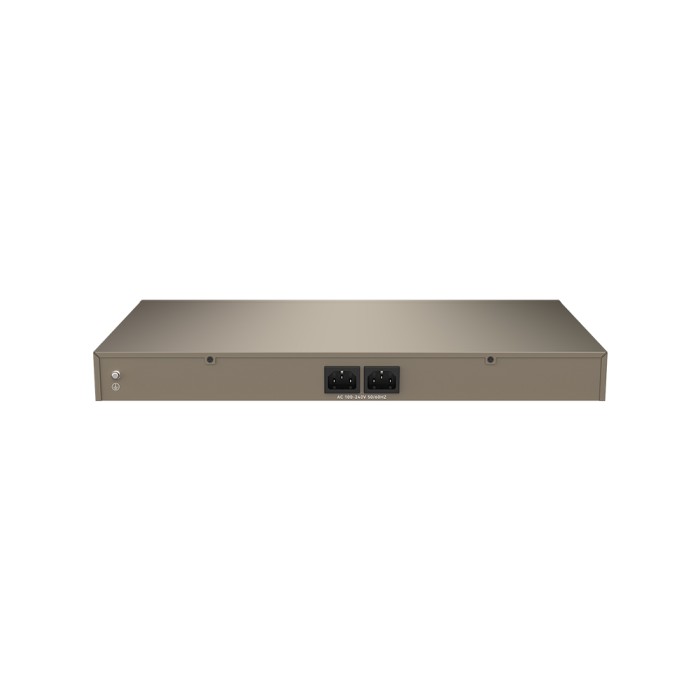

Dual redundant power supply design, supports AC, DC or mixed power input
Power Consumption
<38w
Certification
CE, RoHS
Software
MAC address
32k
VLAN
Support 4K concurrent VLAN
Support VLAN Transparent/Tag/Trunk mode
Support VLAN priority (COS)
remark
Support flexible QINQ based on report matching type (MAC/IP/CVLAN/ETH-TYPE)
Support 1:1 VLAN Translation based on template binding
IGMP
Support IGMPV2
Support SNOOPING and PROXY
Support Concurrent 2K muliticast groups
ACL
Provide illegal frame filtering and packet filtering function based on soure MAC (Medium Access Control), source IP, destination IP and port
QOS
SP (Strict Priority)
WRR (Weighted Round Robin)
mixed mode (SP+WRR)
Link Aggregation
Static LACP
Loop Detection
Support STP and RSTP
Port Rate Limit
Support Port Rate Limit
Port Mirro
Support Port Rate Mirro
Flowcontrol
IEEE802.X flowcontrol
Port Statistic
Support Port Statistic And Monitoring
DBA
Support Tcont DBA
Min configration bandwidth is 128kbit/s ,the particle is for 64kbit/s
Better accuracy than +5％
Effecient Configuration
Provide batch configing ONT template, support VLAN pool at ONT port
System Management
Standard OMCI management function
Support in-band and out-of-band management
Support CLI、WEB and SNMP network management
Support batch ONT and OLT remote upgrade
Optical power detection
Support Uplink port optical parameter detection
Support PON port optical parameter detection
Support batch ONT optical parameter detection
Redundant Backup
Supports dual power redundancy backup, the dual mirroring software and configure
Link Monitor
Network management supports monitoring optical link index
Network management supports data flow statistics of all service ports
Support auto alarm when link index degrades
Long luminescence ONT detection
Environment
Operating Temperature
0C - 45C
Storage Temperature
-40C - 70C
Operating Humidity
10% - 95% （Non-condensing）
Storage Humidity
5% - 95% (Non-condensing)
