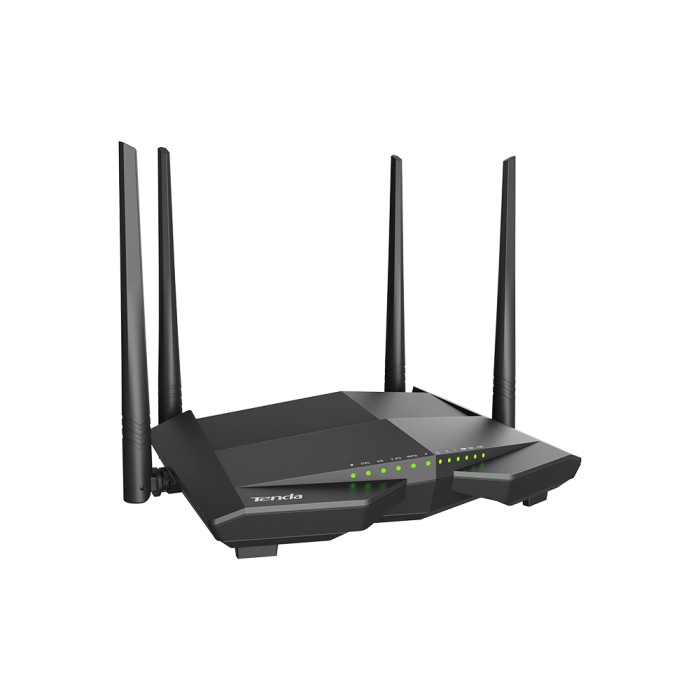

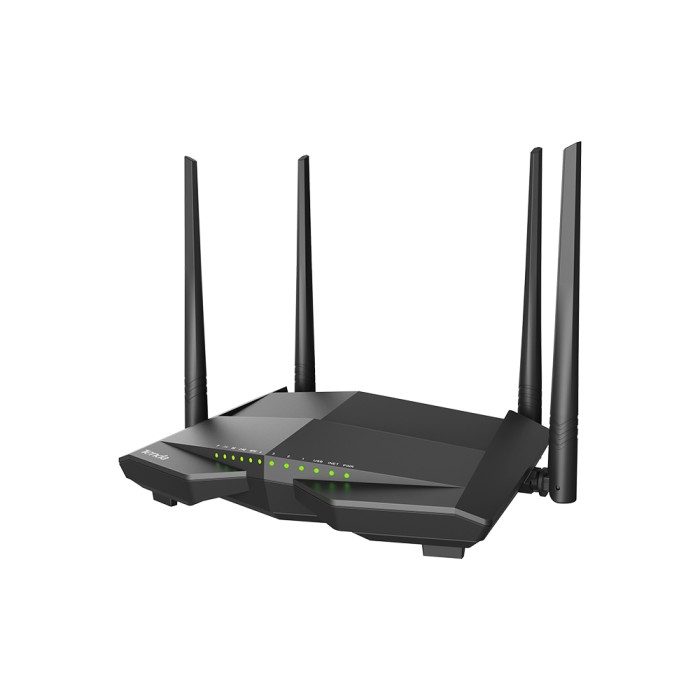

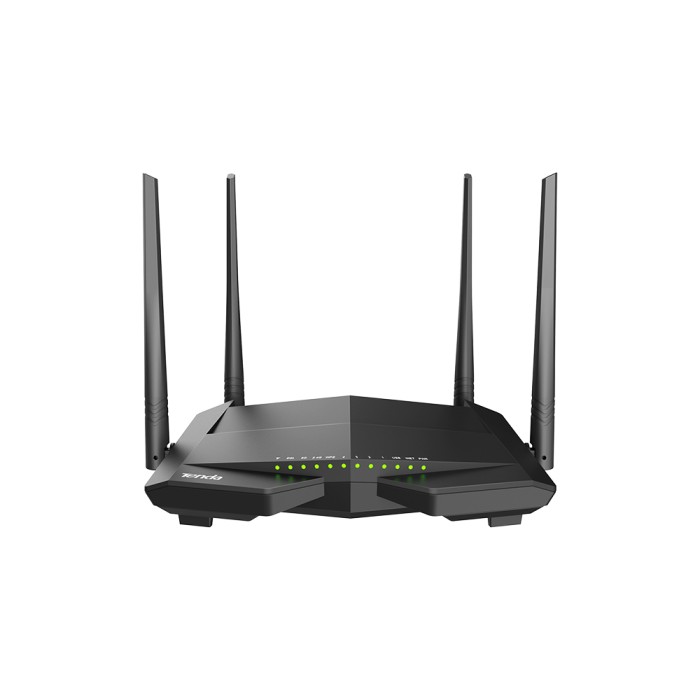

Tenda V12 AC1200 Dualband Wi-Fi Gigabit VDSL/ADSL Modem Router
- 1 x USB Port
- 1 x RJ11 Port
- 4 x Gigabit Ports
- 4 x 5dBi high-performance external antennas
- Wi-Fi 867 Mbps + 300 Mbps
- VDSL2 350 Mbps
| AC1200 Dualband Wi-Fi Gigabit VDSL Modem Router Specifications | |
|---|---|
| 3 × 10/100/1000 RJ45 LAN Ports 1 × 10/100/1000 RJ45 LAN/WAN Port 1 × RJ11 Port 1 × USB 2.0 Port | |
| WPS & Wi-Fi, Reset (RST), Power | |
| 12V 1.5A | |
| IEEE 802.11b/g/n, 802.11ac, 802.3, 802.3u, 802.1Q | |
| ITU G.993.2 (up to 17a/30a/35b) G.vector (G.993.5) G.INP (G.998.4) | |
| ANSI T1.413 Issue 2 G.992.1 (G.DMT) G.992.2 (G.Lite) G.994.1 (G.hs) | |
| G.992.3 (ADSL2) G.992.5 (ADSL2+) | |
| 220 × 141.6 × 59 mm | |
| 4 × 5 dBi External Antennas | |
| 802.11a/n/ac (5GHz) 802.11b/g/n (2.4GHz) | |
| 20M/40M/80M | |
| 300 Mbps @ 2.4GHz 867 Mbps @ 5GHz | |
| Enable/Disable Radio Repeating Guest Network Access Control WPS | |
| None, WPA, WPA2, WPA/WPA2 | |
| <20dBm (2.4GHz) <23dBm (5GHz) | |
| Supported | |
| PVC Config, DSL Settings, Routing, QoS (IP-based) | |
| MAC/IP/Port Filtering URL Blocking DoS Protection | |
| VDSL/ADSL Modem Router Wireless Router | |
| Web-based Config (HTTP) Remote Management CLI SSL for TR-069 SNMP v1/v2c Firmware Upgrade Diagnostic Tools | |
| DHCP Server Client List Address Reservation | |
| Port Forwarding UPnP DMZ | |
| Supported | |
| PPTP, L2TP, IPsec | |
| IPv4 and IPv6 | |
| ATM UNI 3.1/4.0 PPP over ATM (RFC2364) PPP over Ethernet (RFC2516) IPoA (RFC1577/2225) IPoE (RFC1483 Routed) Bridge (RFC1483 Bridge) Up to 8 PVCs | |
| Supported | |
| CE, RoHS | |
| Operating Temp: 0°C–40°C Storage Temp: -40°C–70°C Operating Humidity: 10%–90% Storage Humidity: 5%–90% (Non-condensing) | |
| Router ×1 External Splitter ×1 Power Adapter ×1 RJ11 DSL Cable ×2 RJ45 Ethernet Cable ×1 Quick Installation Guide ×1 | |
