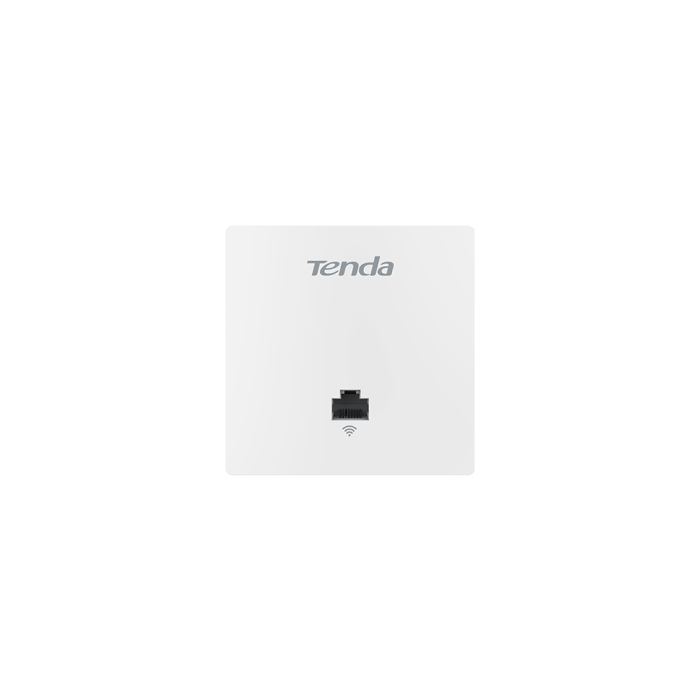

Tenda W15 AX3000 Dual-Band Gigabit Wi-Fi6 In-Wall AP - Classic White
- Supports PoE power supply
- 2.5G Ethernet uplink port
- Supports cloud platform/APP remote management
- Support 802.11K/V/R fast roaming
- Dual-band wireless speed: 5010 Mbps
Information
Model
W15
Category
In-wall
Dimension
86 x 86 x 32mm
Hardware
Interface
One 10/100/1000 Mbps Ethernet Port
One 10/100/1000 Mbps Ethernet Port (PoE)
Button
1 x Reset
LED Indicator
1 x SYS
Maximum Power Consumption
8.5W
Power Supply
PoE 802.3af
Max. Number of Clients
256
Recommended Clients
60
Antenna
4 x 4dBi
2.4GHz maximum power
11b mode, transmit power 17+1.5dBm
11g mode, transmit power 17+1.5dBm
11n mode, MCS7 transmit power 17+1.5dBm
11ax mode, MCS11 transmit power 17+1.5dBm
5GHz maximum power
11a mode, transmit power 16+1.5dBm
11n mode, MCS7 transmit power 16+1.5dBm
11ac mode, MCS9 transmit power 16+1.5dBm
11ax mode, MCS11 transmit power 16+1.5dBm
Reception Sensitivity
2.4GHz 802.11b -98dBm
2.4GHz 802.11n (MCS7)
-73.5dBm
2.4GHz 802.11ax (MCS11)
-62.5dBm
5GHz 802.11a -94dBm
5GHz 802.11n (40M-MCS7)
-72dBm
5GHz 802.11ax (80M-MCS11)
-58dBm
Frequency Range
2.4GHz&5GHz
Standard&Protocol
IEEE 802.11b/g/n/ac/ax(wave2)
Maximum wireless speed
2.4GHz: 574Mbps
5GHz: 2402Mbps
Bandwidth
20MHz/40MHz/80MHz/160MHz
Software
Operating Mode
AP/Client+AP
Max. No. of SSID
2.4GHz: 8
5GHz: 4
Hide SSID
Supported
OFDMA
Supported
Beamforming
Supported
Fast roaming（802.11k/v/r）
Supported
WEP
Supported
WPA-PSK
Supported
WPA2-PSK
Supported
WPA
Supported
WPA2
Supported
WPA3-SAE
Supported
Access control
Supported
Adjustable power transmit
Supported
Automatic channel
Supported
AP isolation
Supported
Guest network
Supported
Connected clients control
Supported
RSSI Threshold
Supported
Weak signal terminal elimination
Supported
Prioritize 5 GHz
Supported
VLAN tagging for SSID
Supported
LED control
Supported
MU-MIMO
Supported
Diagnostics tool
Supported
Reboot at specified interval
Supported
Scheduled reboot
Supported
System Logs
Supported
Device management
Web management
Router management
CloudFi Cloud management
Firmware upgrade
Supported
Reboot
Supported
Reset
Supported
Backup configuration
Supported
Restore configuration
Supported
Others
Default IP
192.168.0.254
Default username
admin
Operation Temperature
-10C - 45C
Operating Humidity
-30C - 70C
Storage Temperature
10%-90% non-condensing
Storage Humidity
5%-90% non-condensing
