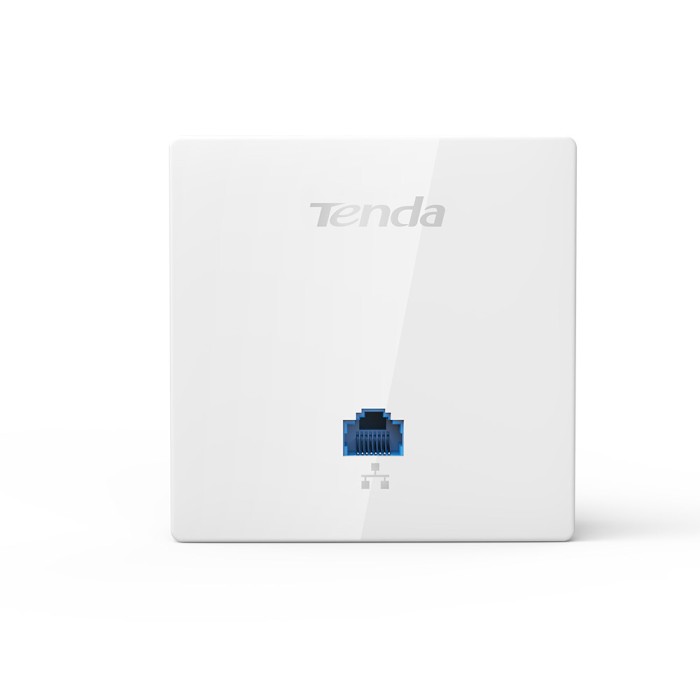

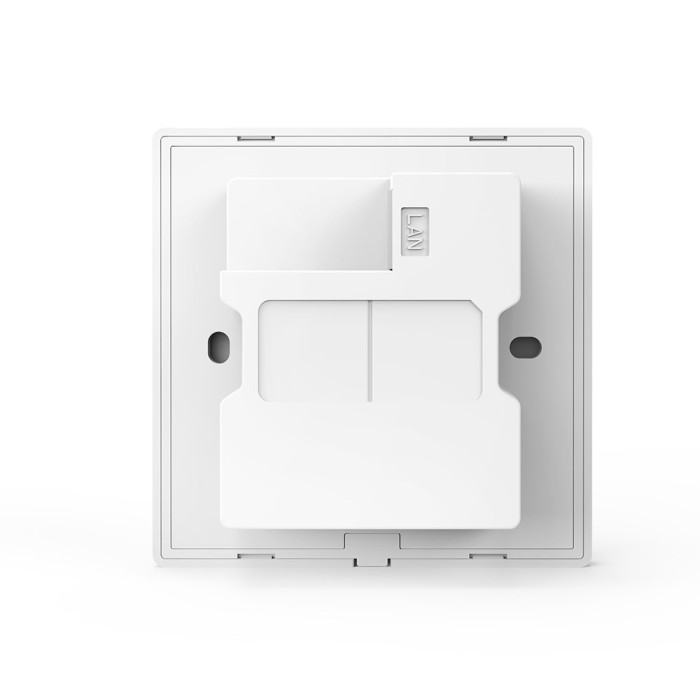

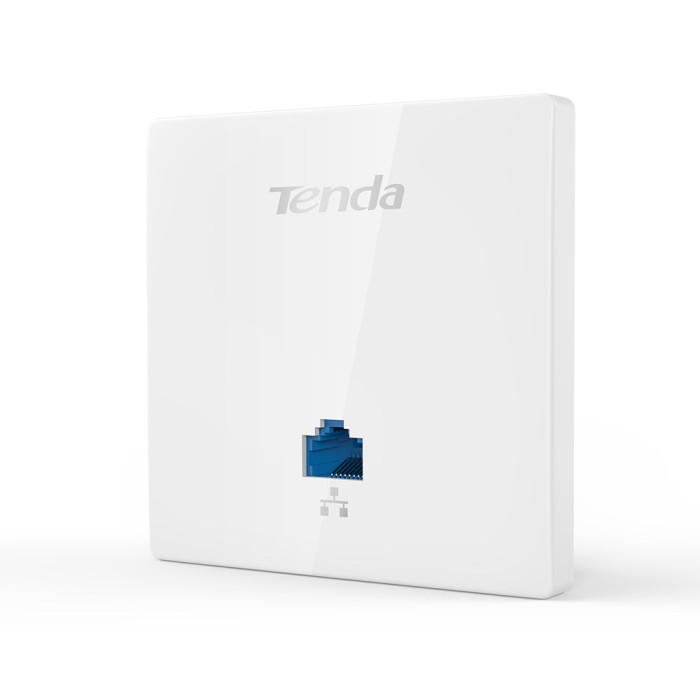

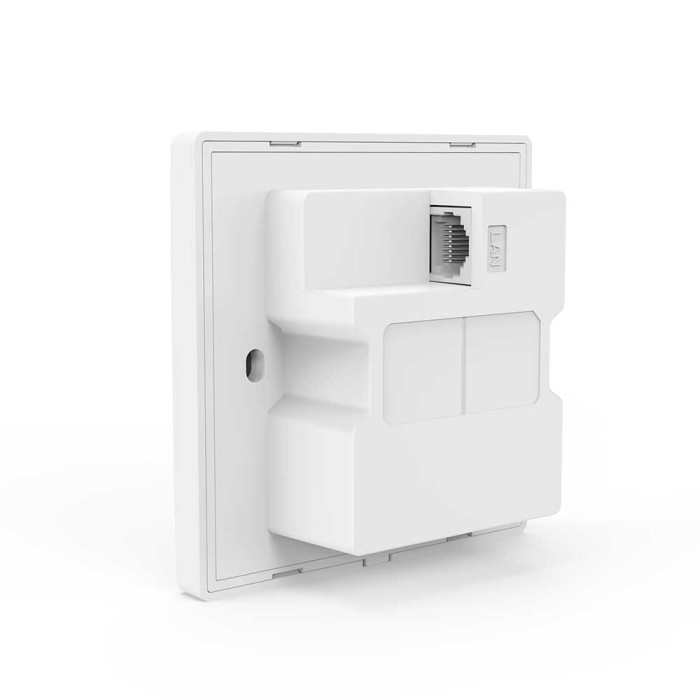

Tenda W6-S N300 in-wall Wireless Access Point
Product Information
Model
W6-S
Category
In-wall
Dimension
86x86x34.8mm
Hardware
Interface
One 10/100 Mbps Ethernet Port
One 10/100 Mbps Ethernet Port (PoE)
Button
1xReset
LED Indicator
1xSYS
Maximum Power Consumption
3.4W
Power Supply
PoE 802.3af
Max. Number of Clients
64
Recommended Clients
5
Antenna
2x2dBi
2.4GHz maximum power
18+/-1.5dBm
Reception Sensitivity
2.4GHz 802.11b -90dBm
2.4GHz 802.11n (MCS7) -72dBm
Frequency Range
2.4GHz
Standard&Protocol
IEEE 802.11b/g/n
Maximum wireless speed
300Mbps
Bandwidth
20MHz/40MHz
Software
Operating Mode
AP/Client AP
Max. No. of SSID
2.4GHz: 4
Hide SSID
Support
OFDMA
Support
Beamforming
Support
WEP
Support
WPA-PSK
Support
WPA2-PSK
Support
WPA
Support
WPA2
Support
Access control
Support
Adjustable power transmit
Support
Automatic channel
Support
AP isolation
Support
Guest network
Support
Connected clients control
Support
RSSI Threshold
Support
Weak signal terminal elimination
Support
Prioritize 5 GHz
Support
VLAN tagging for SSID
Support
LED control
Support
Diagnostics tool
Support
Reboot at specified interval
Support
Scheduled reboot
Support
System Logs
Support
Device management
M3 or Tenda Router with AP Controller feature
Firmware upgrade
Support
Reboot
Support
Reset
Support
Backup configuration
Support
Restore configuration
Support
Others
Default IP
192.168.0.254
Default username
admin
Operation Temperature
-10C - 45C
Operating Humidity
10%-90% non-condensing
Storage Temperature
-30C - 70C
Storage Humidity
10%-90% non-condensing
