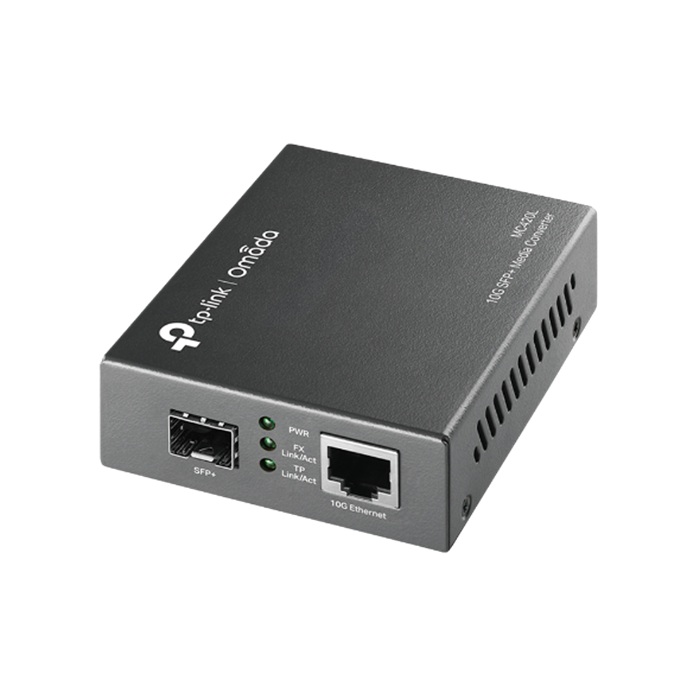

TP-Link Omada MC420L 10G Multi-Gigabit SFP Media Converter
1× 10G RJ45 port with 1G/2.5G/5G/10G auto-negotiation.
Supports Auto-MDI/MDIX and half/full-duplex.
Complies with IEEE 802.3an, 802.3ae, and 802.3aq.
Hot-swappable FX port.
Transmission distance depends on the SFP module.
| Standards and Protocols | IEEE 802.3ab, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x |
| Basic Function | • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode • Maximum transmission distance depends on the inserting SFP module |
| Interface | • 1× SFP+ port • 1× 1G/2.5G/5G/10Gbps RJ45 port |
| Wave Length | Depends on the used SFP module |
| Network Media 10GBASE-R | Multi-mode/Single-mode SFP+ module |
| Network Media 10GBASE-T | 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100 m); 10GBASE-T: UTP cat.6 (max. 55 m), STP Cat. 6 or above (max. 100 m) |
| Dimensions (W × D × H) | 3.7 × 2.9 × 1.1 in. (94.5 × 73.0 × 27.0 mm) |
| Power Supply | External Power Adapter |
| Max. Power Consumption | 4.12W |
| LED | PWR, Link/Act |
| Safety & Emission | UL, RoHS |
| Package Content | • MC420L • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0℃~50℃ (32℉~122℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%RH~90%RH Non-condensing • Storage Humidity: 5%RH~90%RH Non-condensing |
