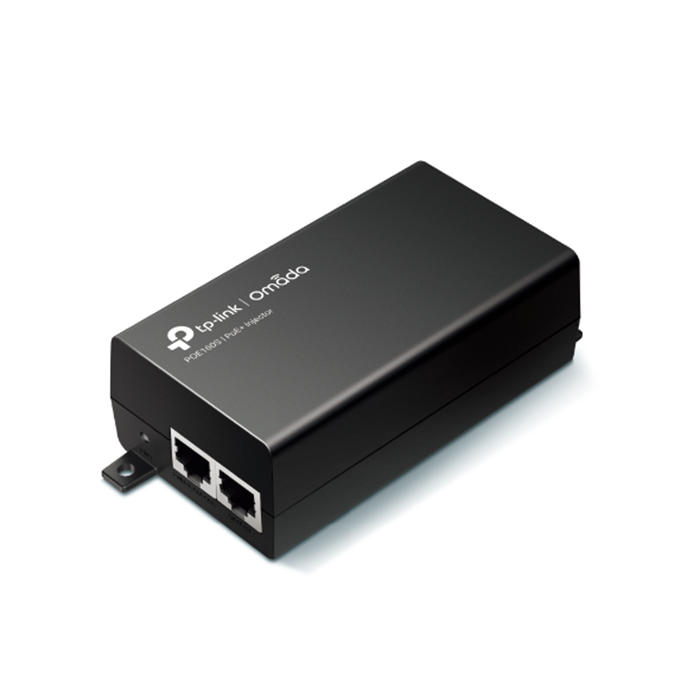

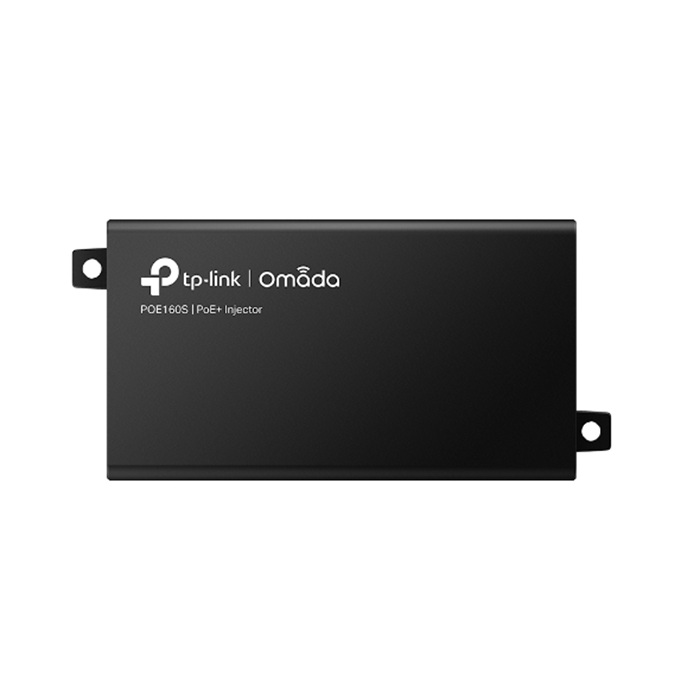

TP-Link Omada POE160S Gigabit PoE+ Injector
2× Gigabit ports.
IEEE 802.3af/at PoE up to 30W.

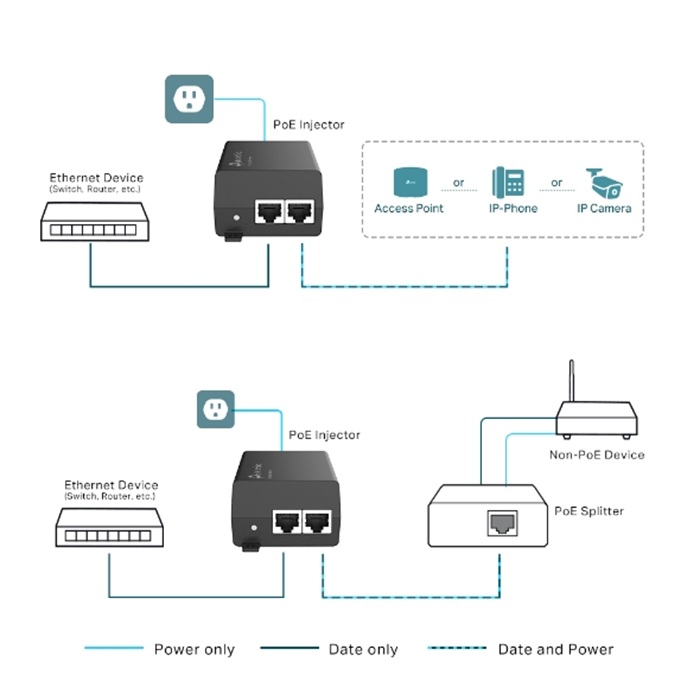

Data and power over one Ethernet cable.
Automatic power adjustment.
Plug-and-play installation.
Integrated power supply.
Desktop and wall-mounting design.
| Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at |

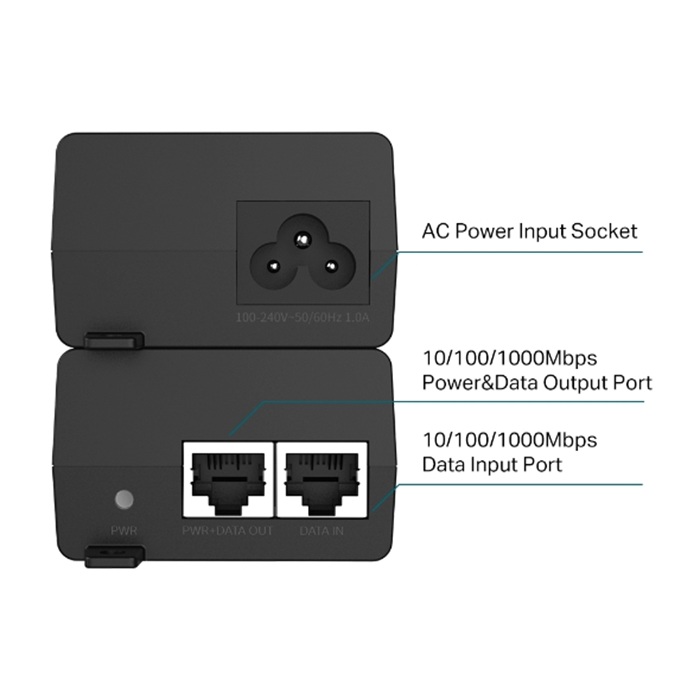

| Interface | • 1 10/100/1000Mbps RJ45 data-in port • 1 10/100/1000Mbps RJ45 power+data-out port • 1 AC socket |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (maximum 100 m) |

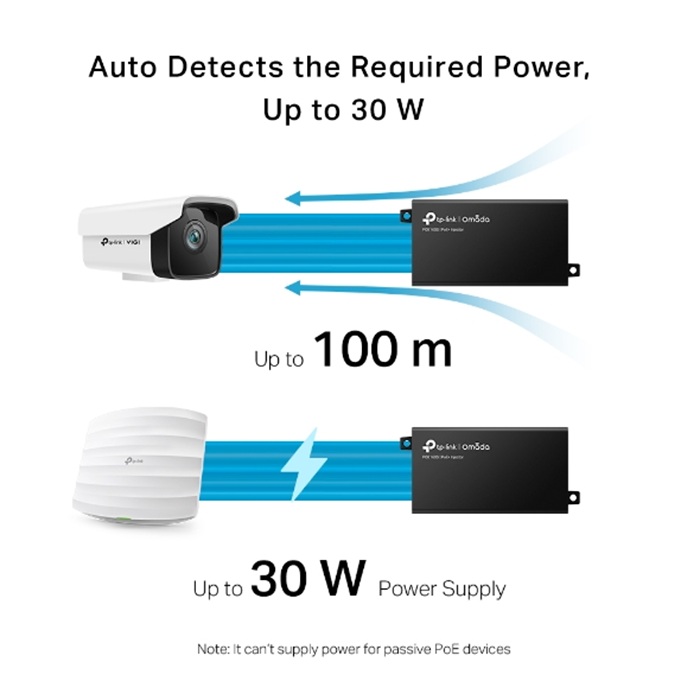

| Max. Power Consumption | • Input: 100–240 V, 50/60 Hz • Output: Auto-determine the necessary power requirements (max. 30 W) |
| Basic Function | • Auto-Sensing Algorithm enables providing power with 802.3af/at PD • Auto-determine the necessary power requirements • Wall-mounting and desktop installation supported • Plug-and-Play |
| LED | Power / PoE |
| Dimensions (W × D × H) | 4.9 × 2.3 × 1.4 in (125 × 59.4 × 36.8 mm) |
