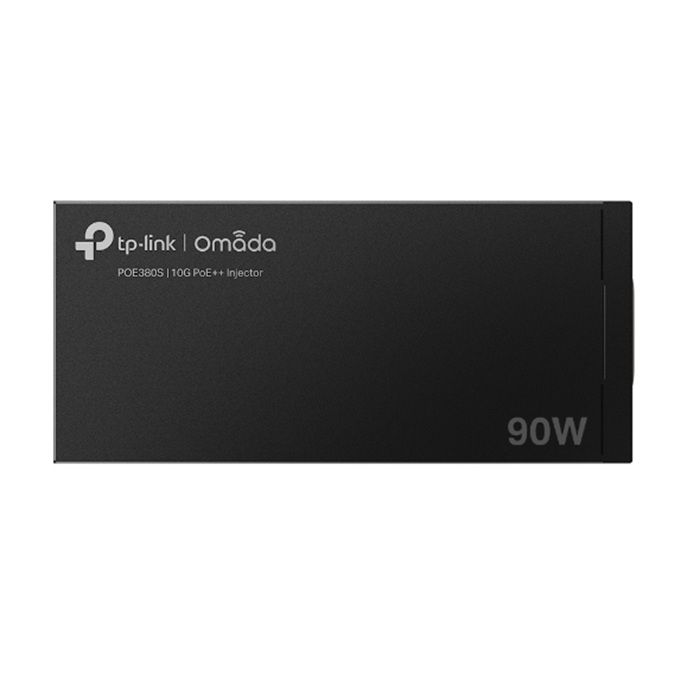

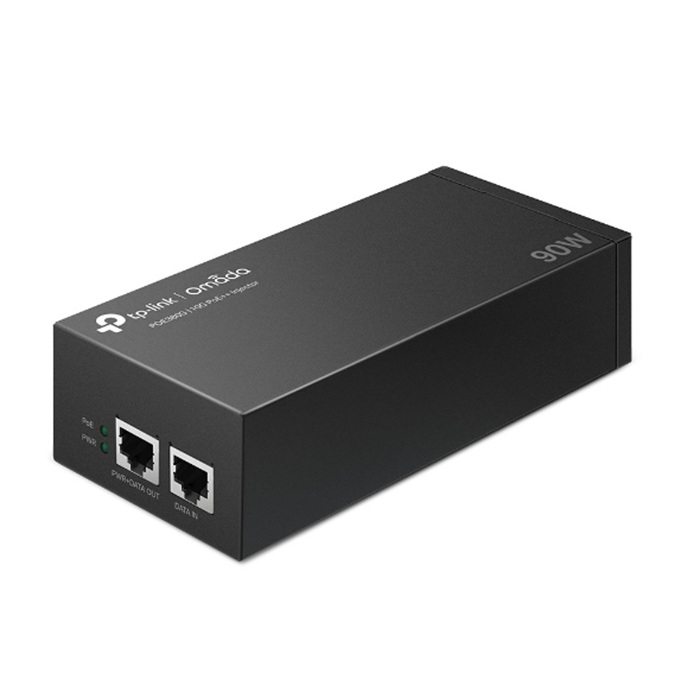

TP-Link Omada POE380S PoE++ Injector for High-Power Network Devices
2× multi-gigabit RJ45 ports up to 10 Gbps.
Supports IEEE 802.3af/at/bt PoE up to 90W.
Transmits data and power over one Ethernet cable.
Automatically adjusts power to connected devices.
Plug-and-play installation with no configuration.
| Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt* |

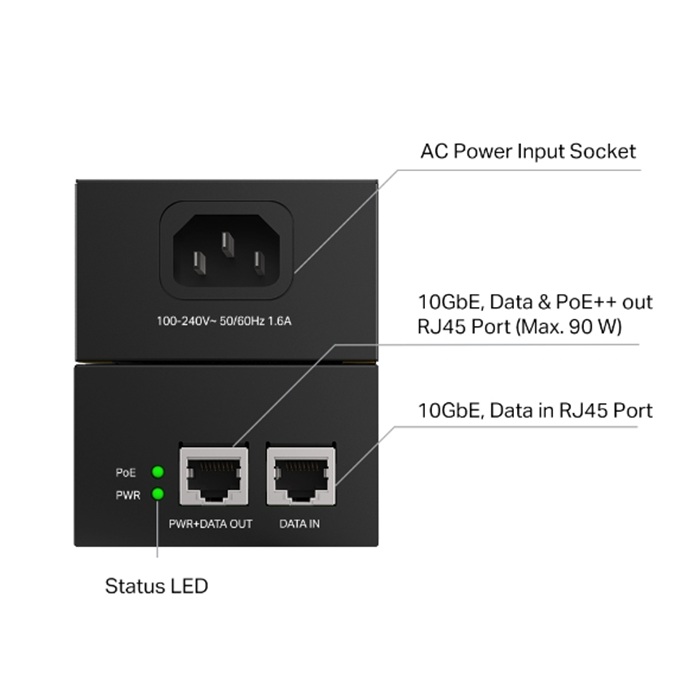

| Interface | • 1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 data-in port • 1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 power+data-out port (Max. 90 W) • 1× AC socket |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (maximum 100 m) |
| Max. Power Consumption | • Input: 100–240 V, 50/60 Hz, 1.6A • Output: Auto-determine the necessary power requirements (max. 90 W) |
| Basic Function | • Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD • Auto-determine the necessary power requirements • Wall-mounting and desktop installation • Plug-and-Play |
| LED | Power / PoE |
| Dimensions (W × D × H) | 6.1 × 2.8 × 1.7 in (155 × 70 × 42 mm) |
